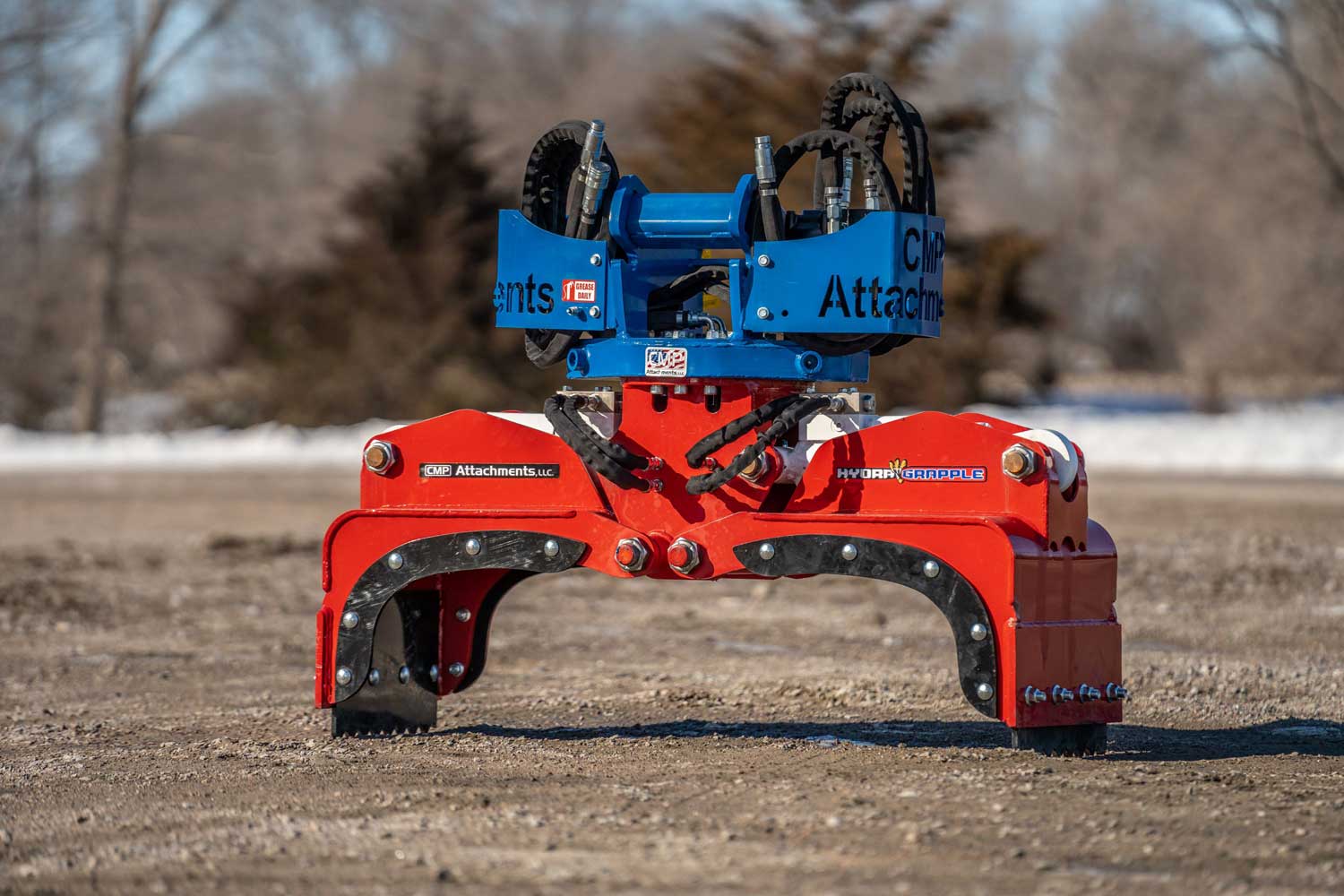

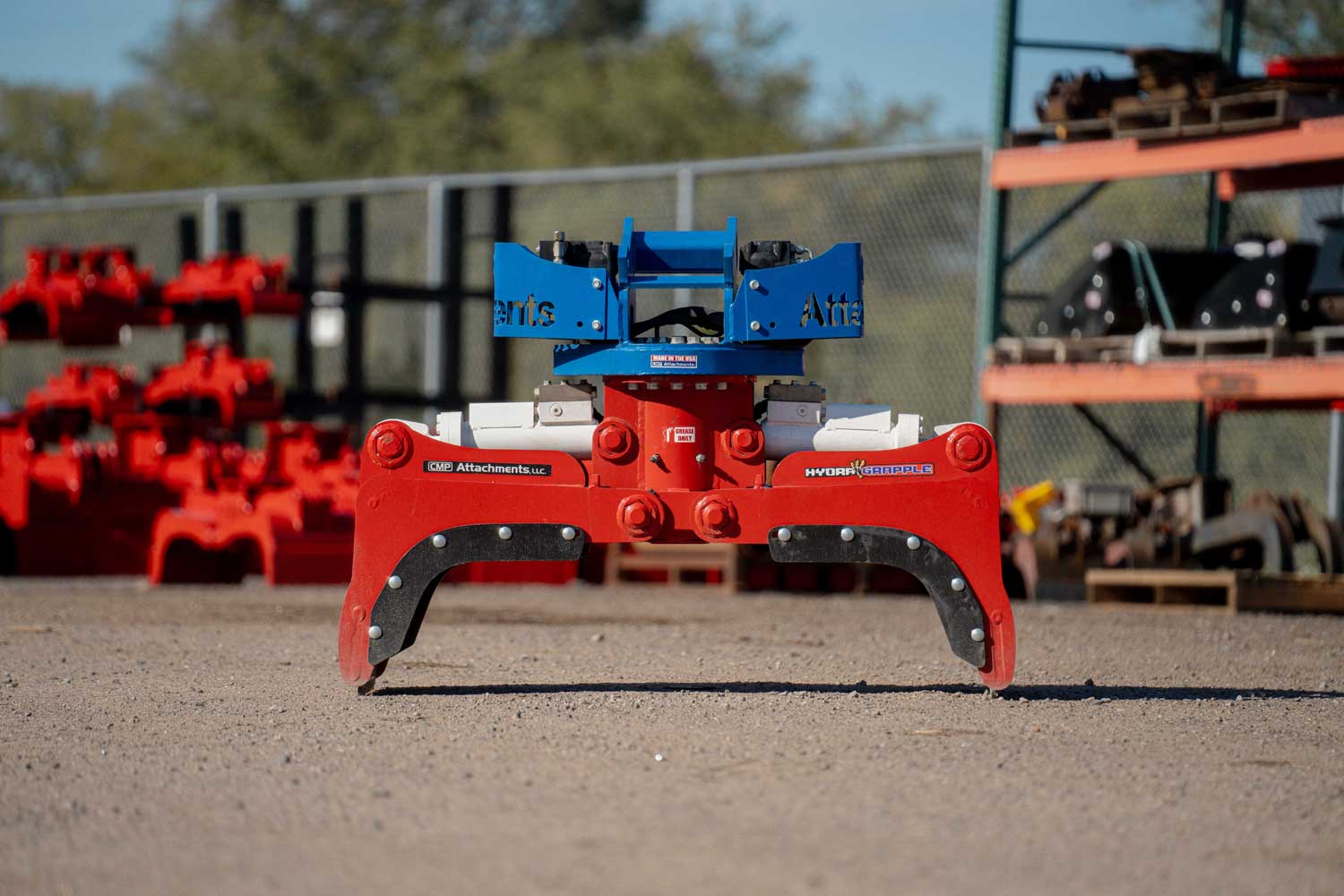

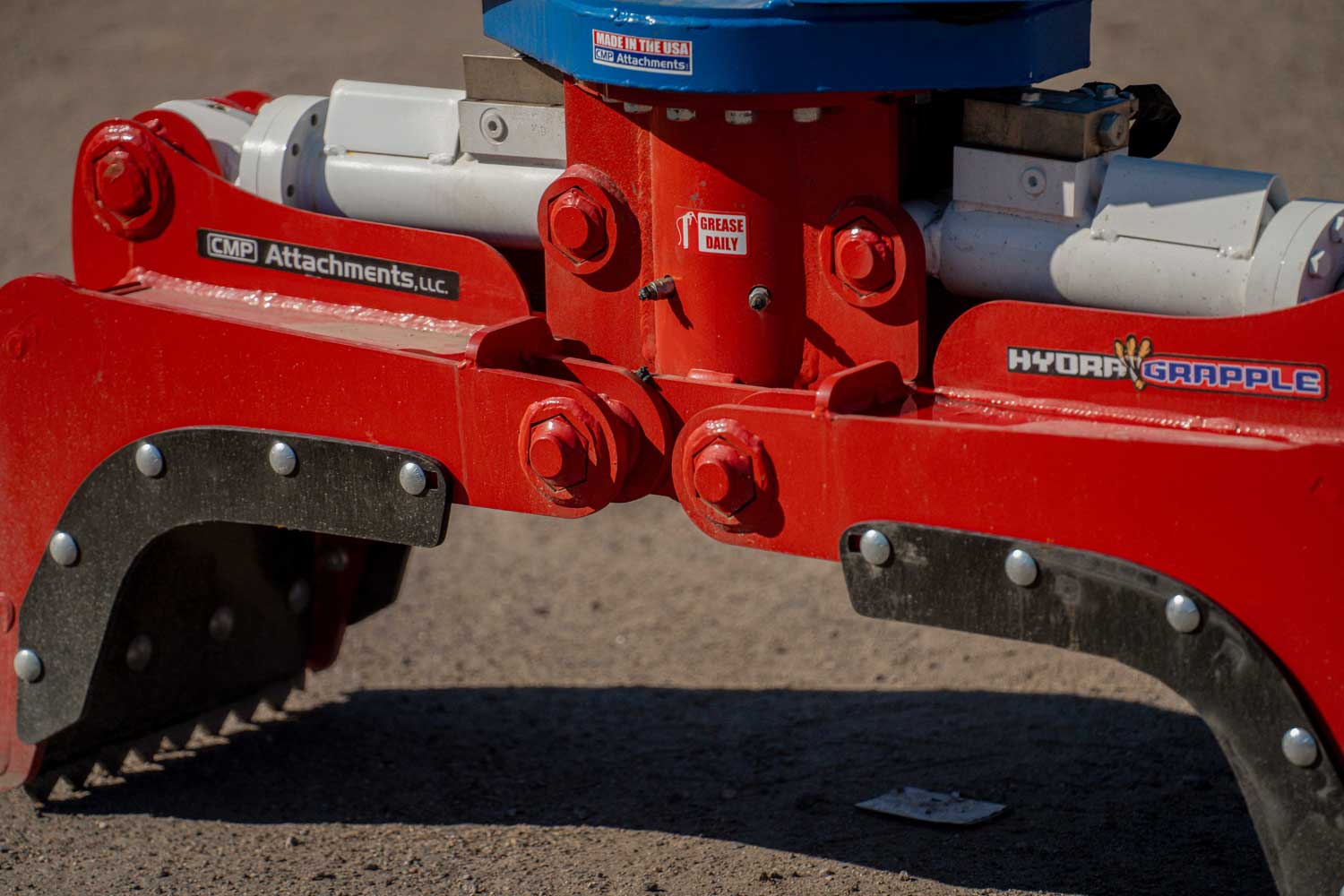

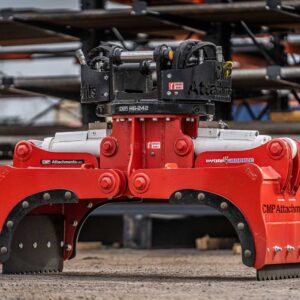

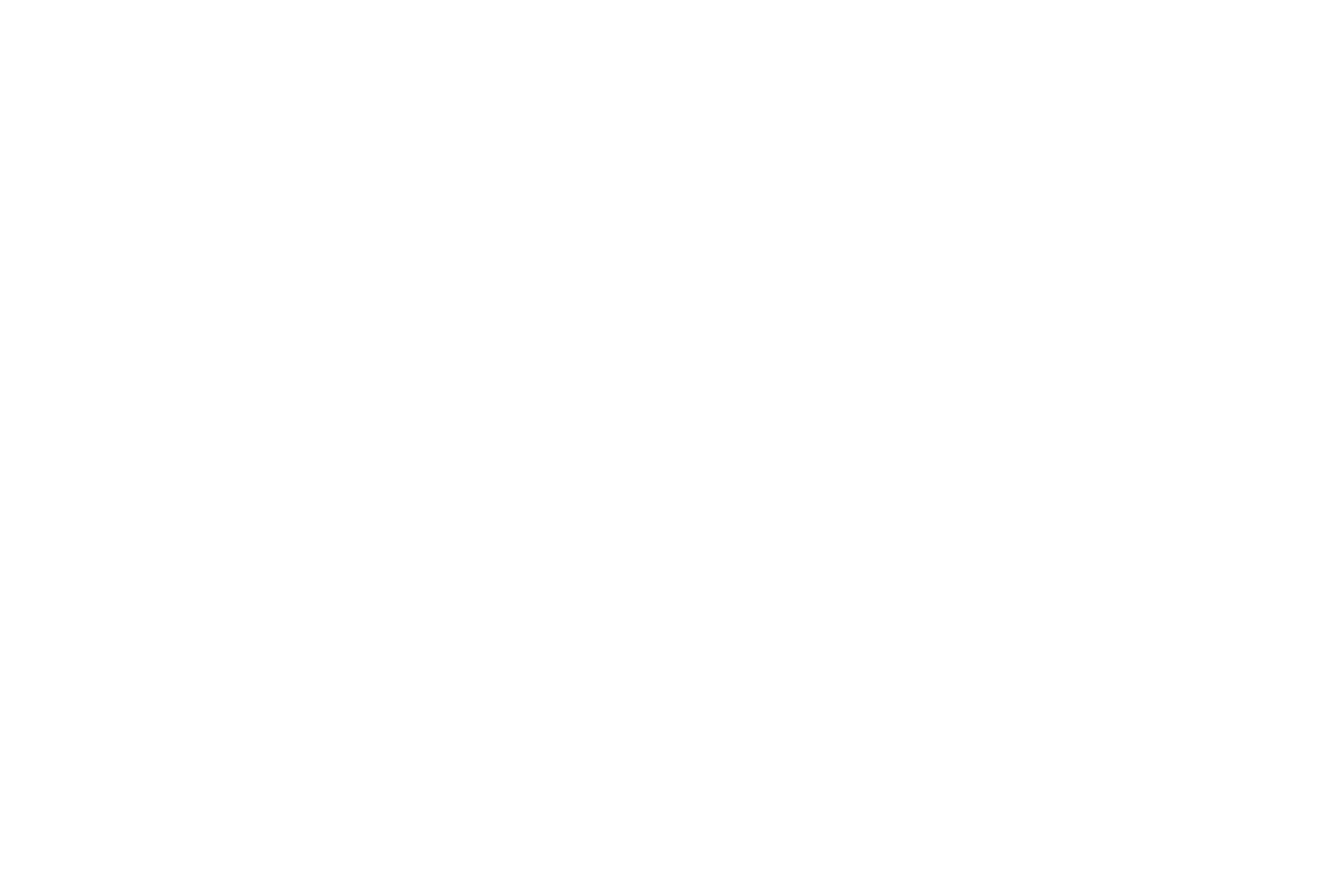

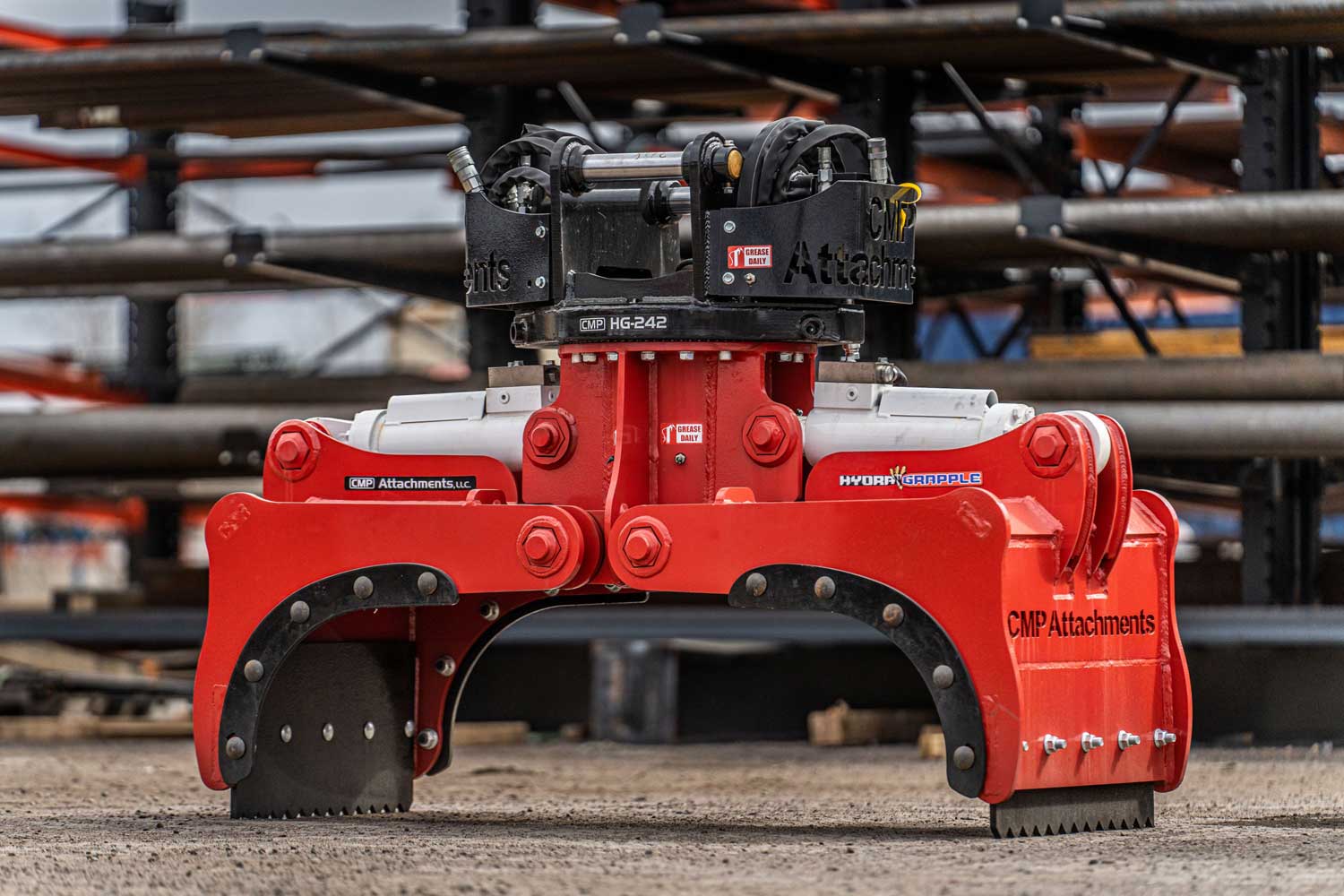

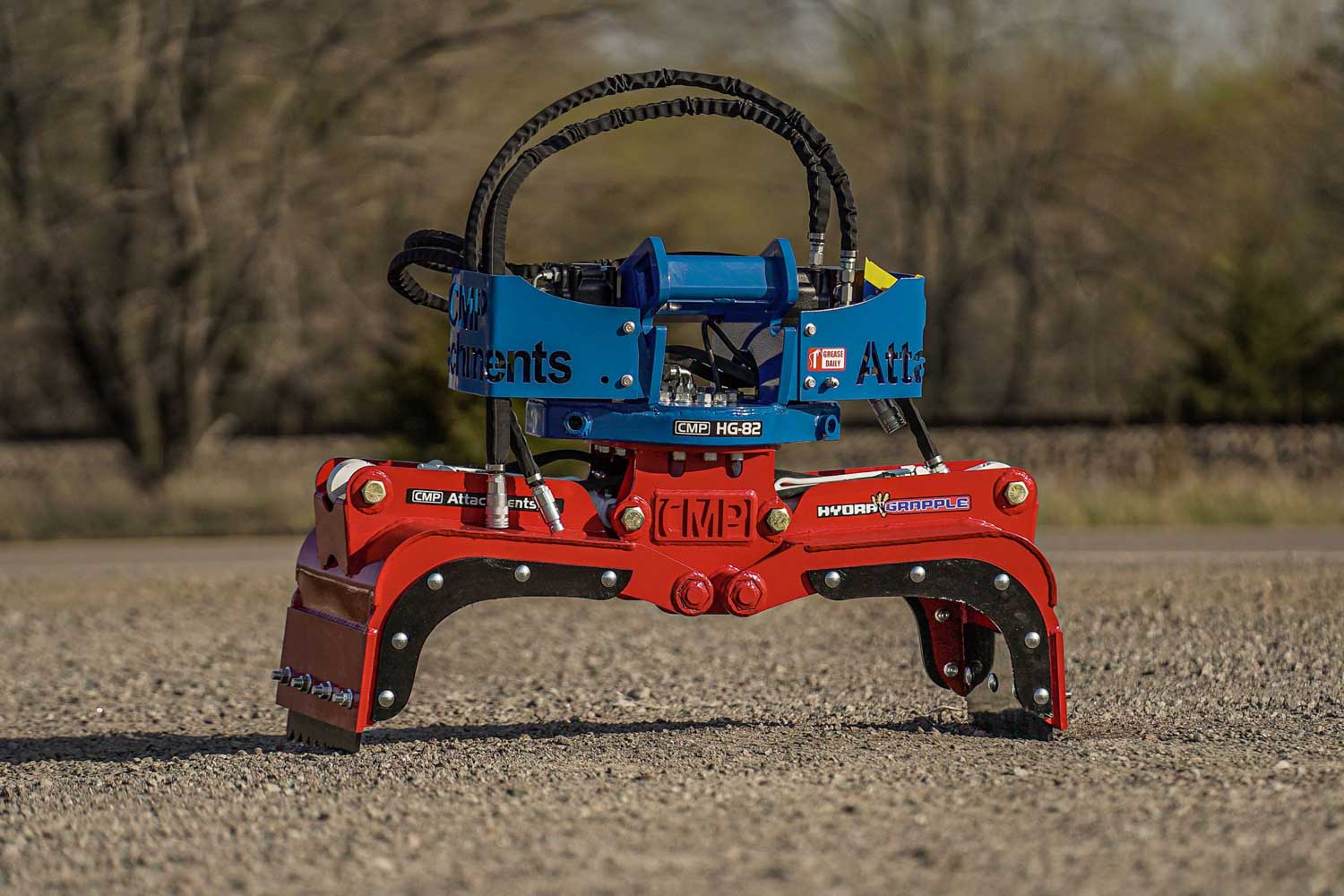

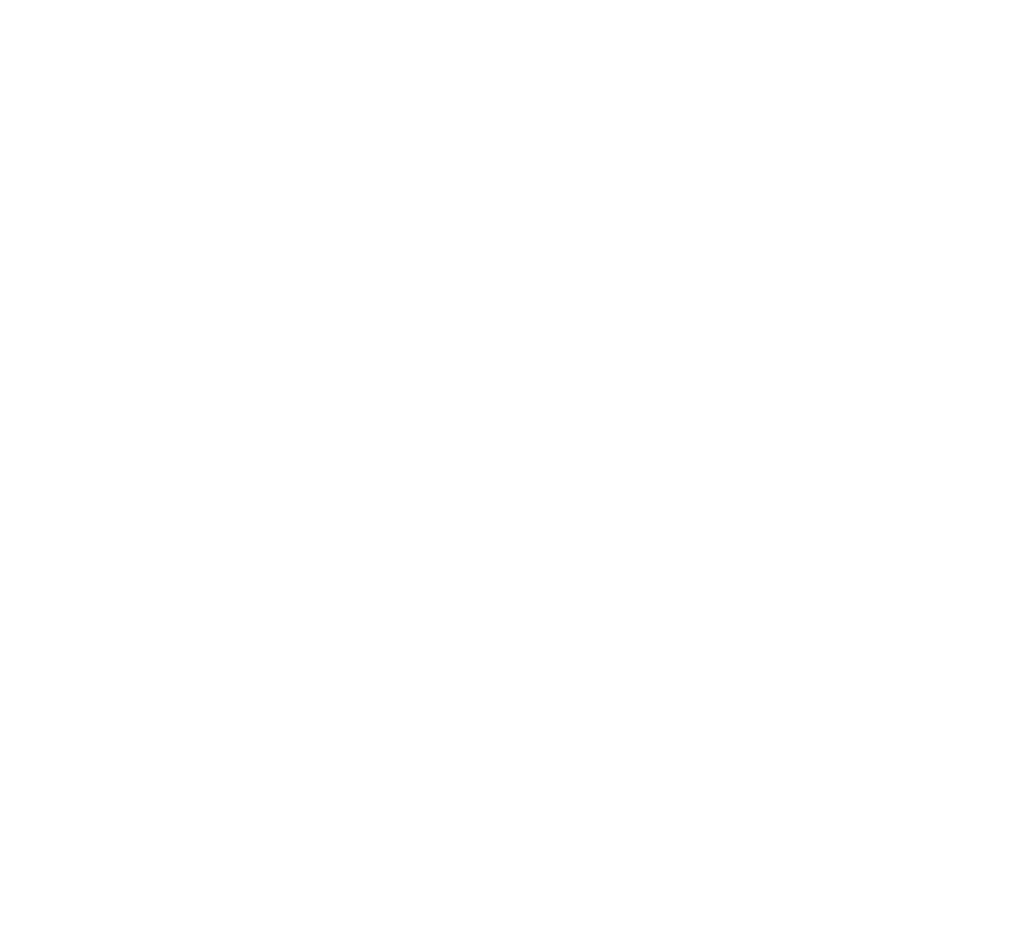

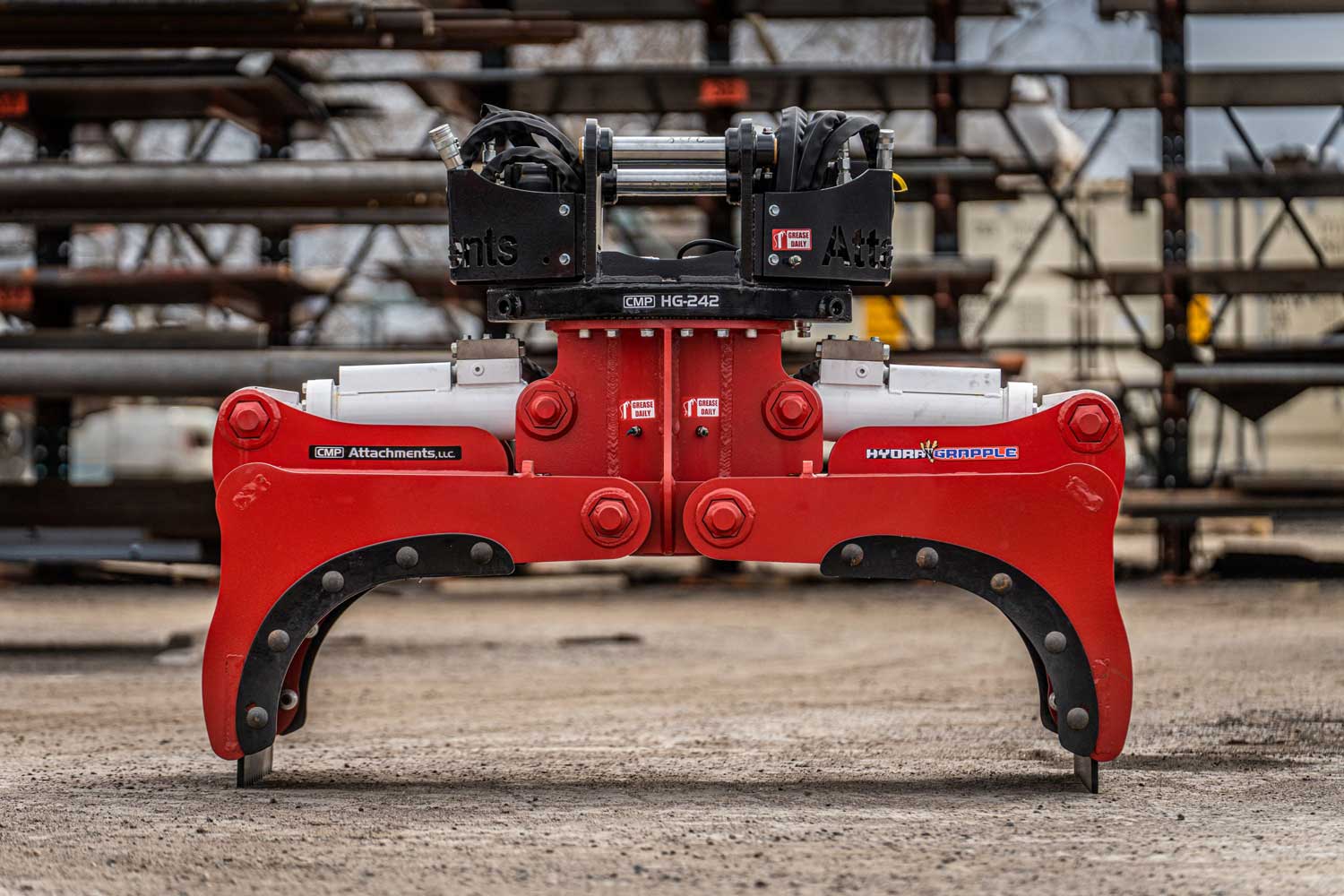

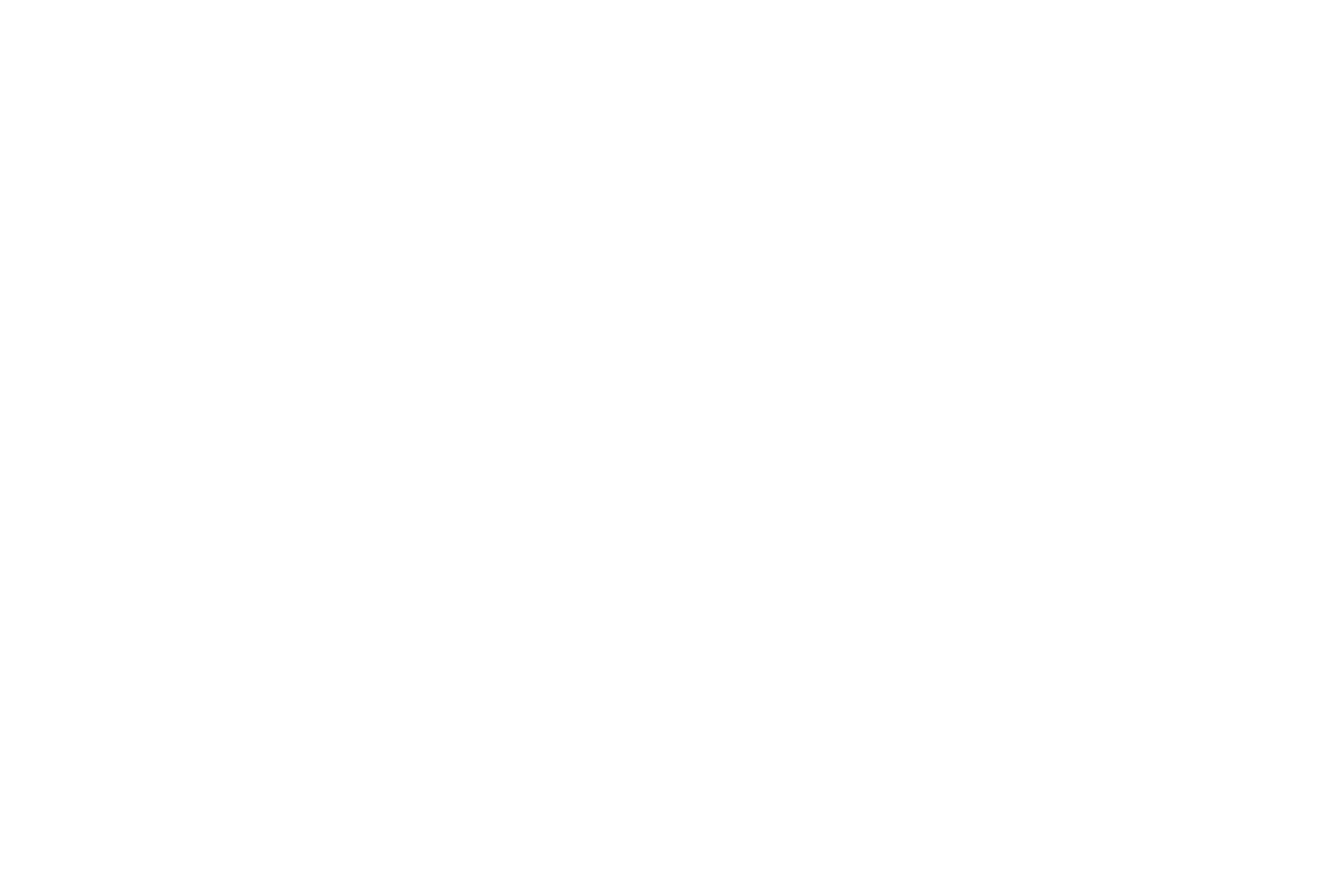

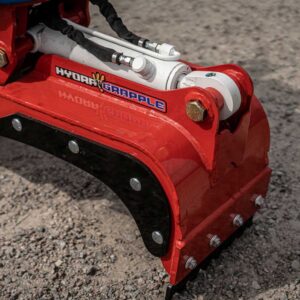

Non-Rotate Hydra Grapple

Rotational bearing and motors will not be included on non-rotate grapples.
Your tiltrotator will supply the rotation.

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG51	15"	370lb	NA	40"	25	5.5-7.5k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG61	15"	400lb	NA	40"	35	6.5-10k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size

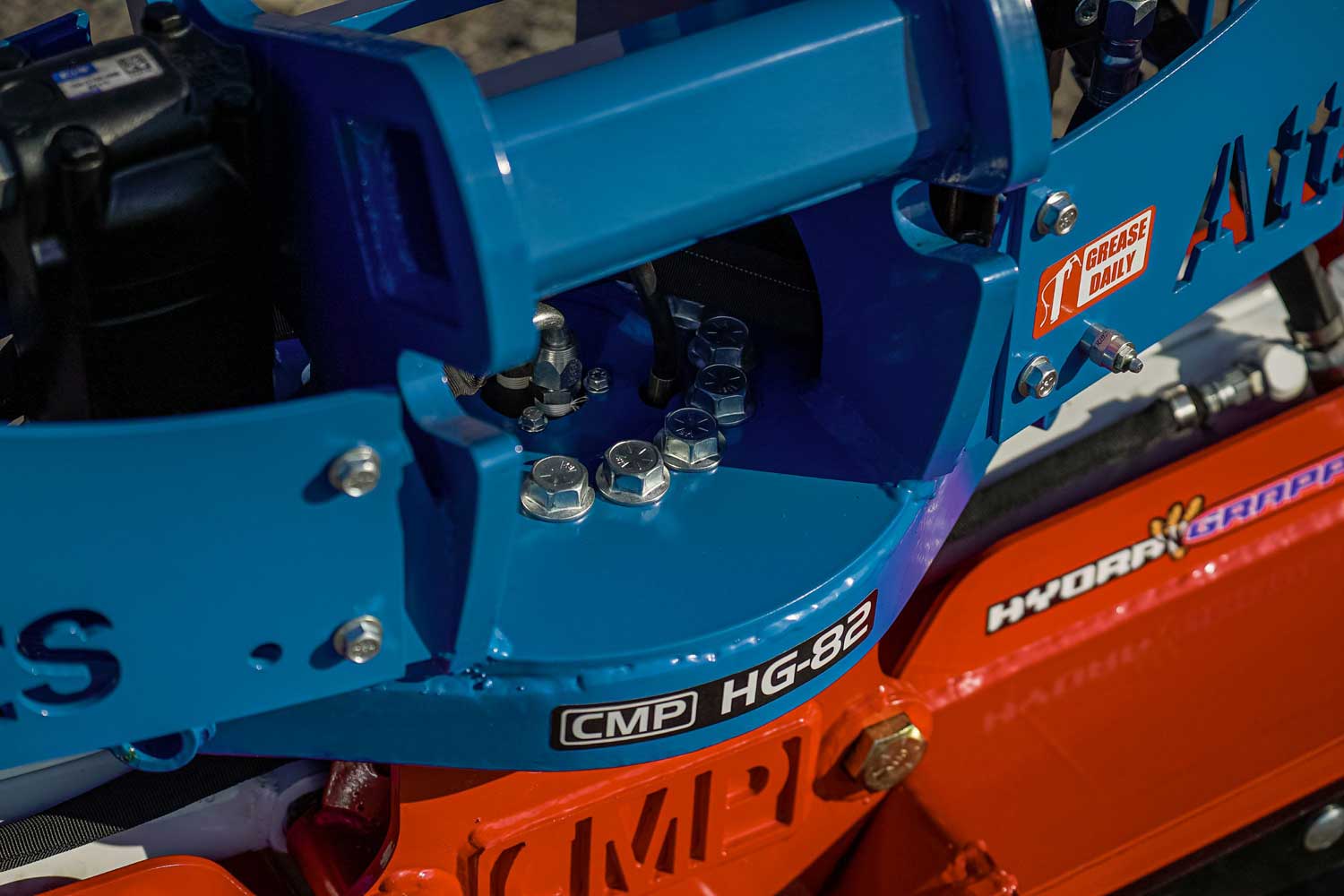

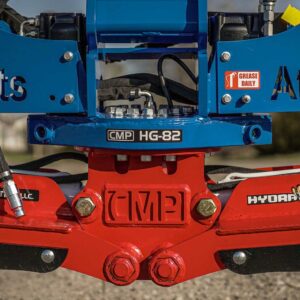

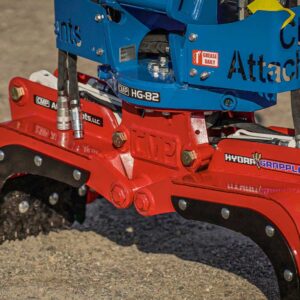

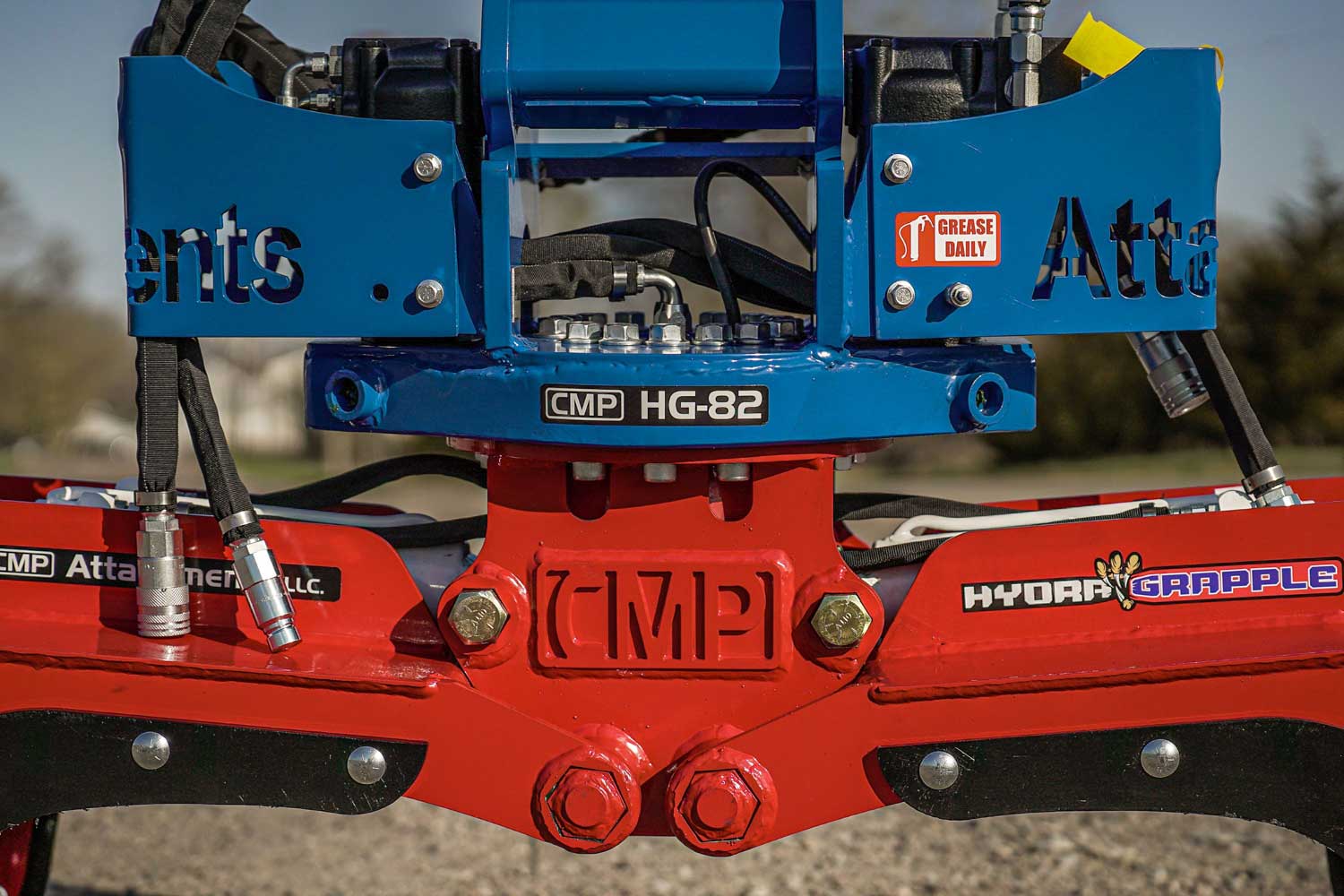

CMPHG82	17"	475lb	NA	48"	40	8-12k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG102	17"	600lb	Standard	50"	40/50	8-12k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size

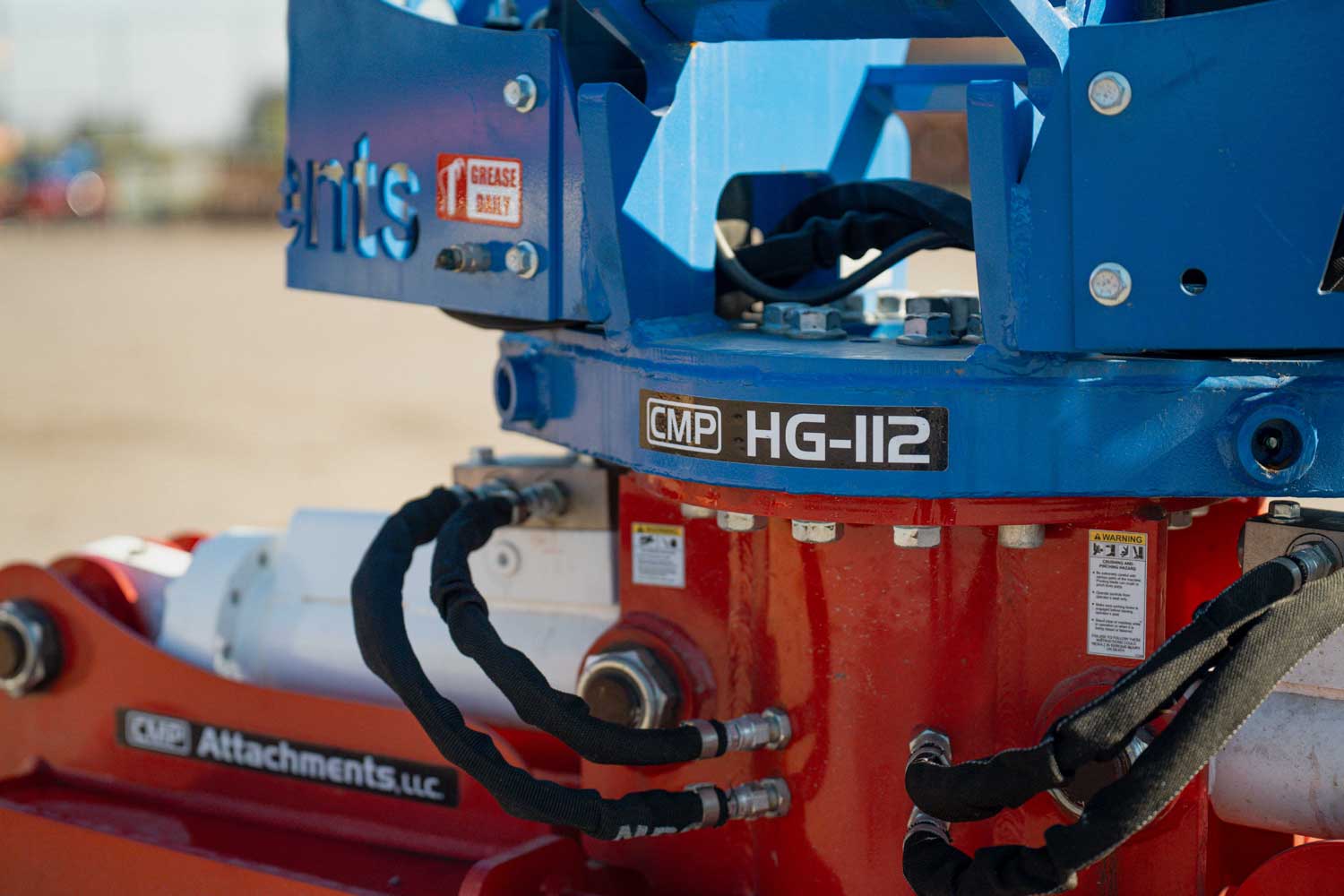

CMPHG112	17"	845lb	Standard	53"	50/60	10-13k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG142	23"	875Lb	Standard	53"	60	11-14.5k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG222	26.5"	1275lb	Standard	59"	70/80	14.5-18k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG242	26"	1400lb	Standard	60"	80/90	17-22k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG262	26"	1500lb	Standard	60"	100	22-30k LB

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG282	26"	1700lb	Standard	62"	130/140	25-35k lb

Model	Width	Weight	Lock Valves	Opening	Class	Machine Size
CMPHG282	26"	1700lb	Standard	62"	130/140	25-35k lb

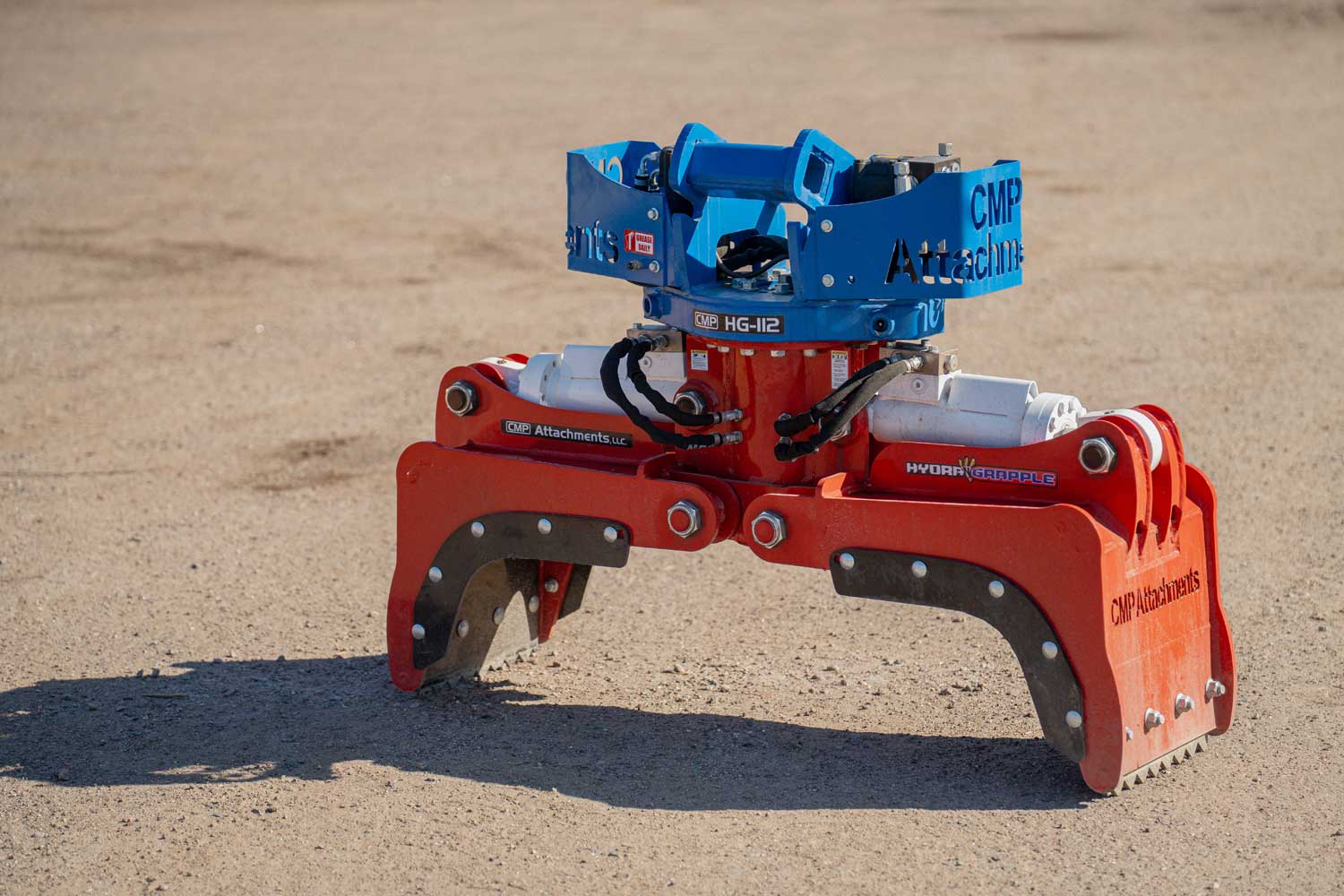

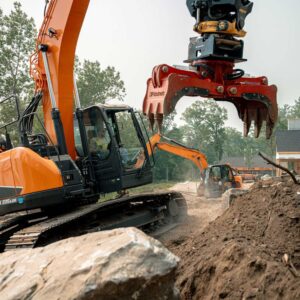

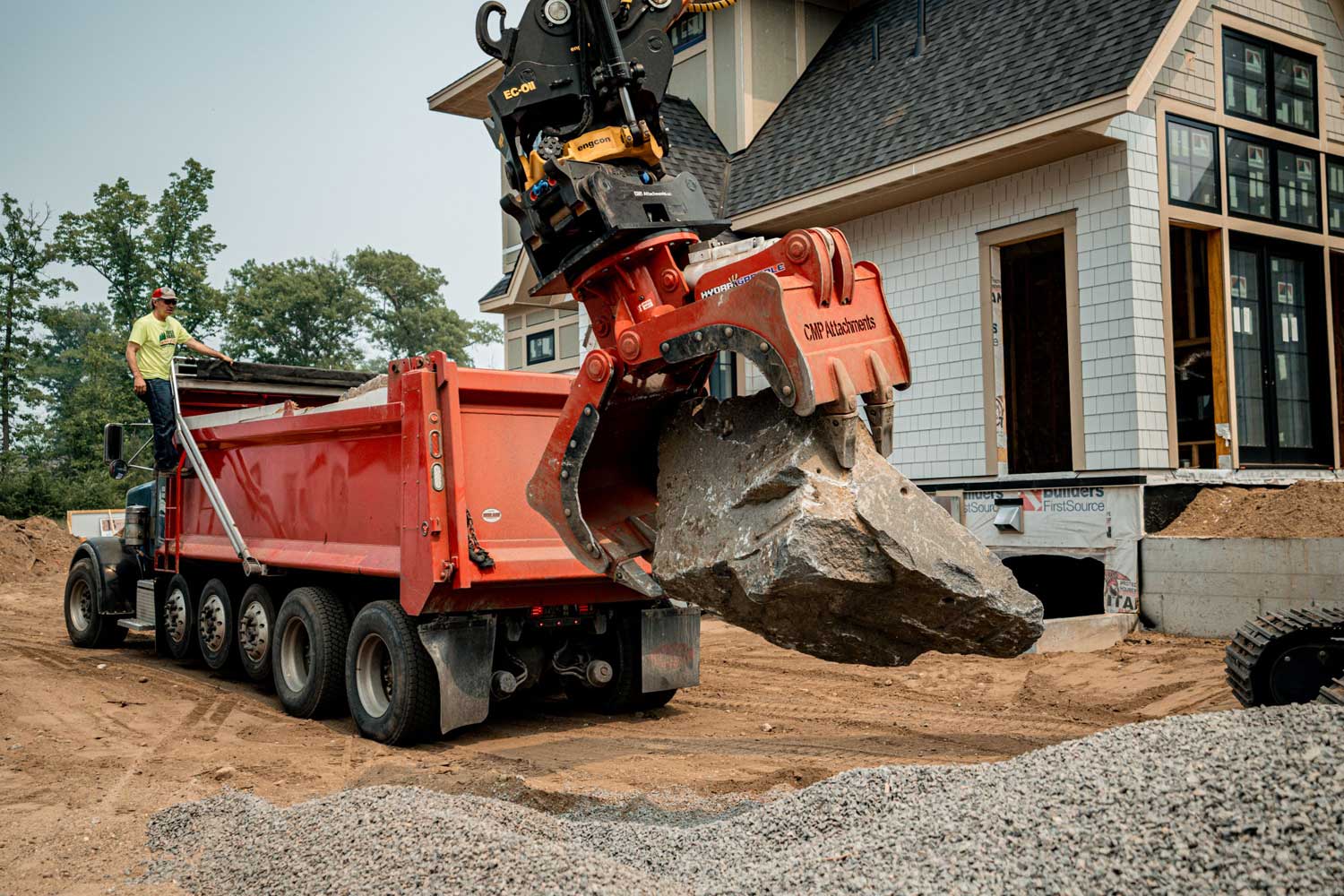

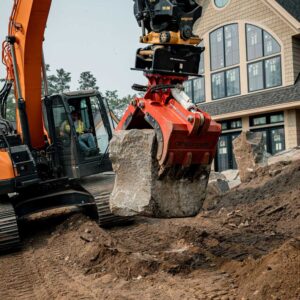

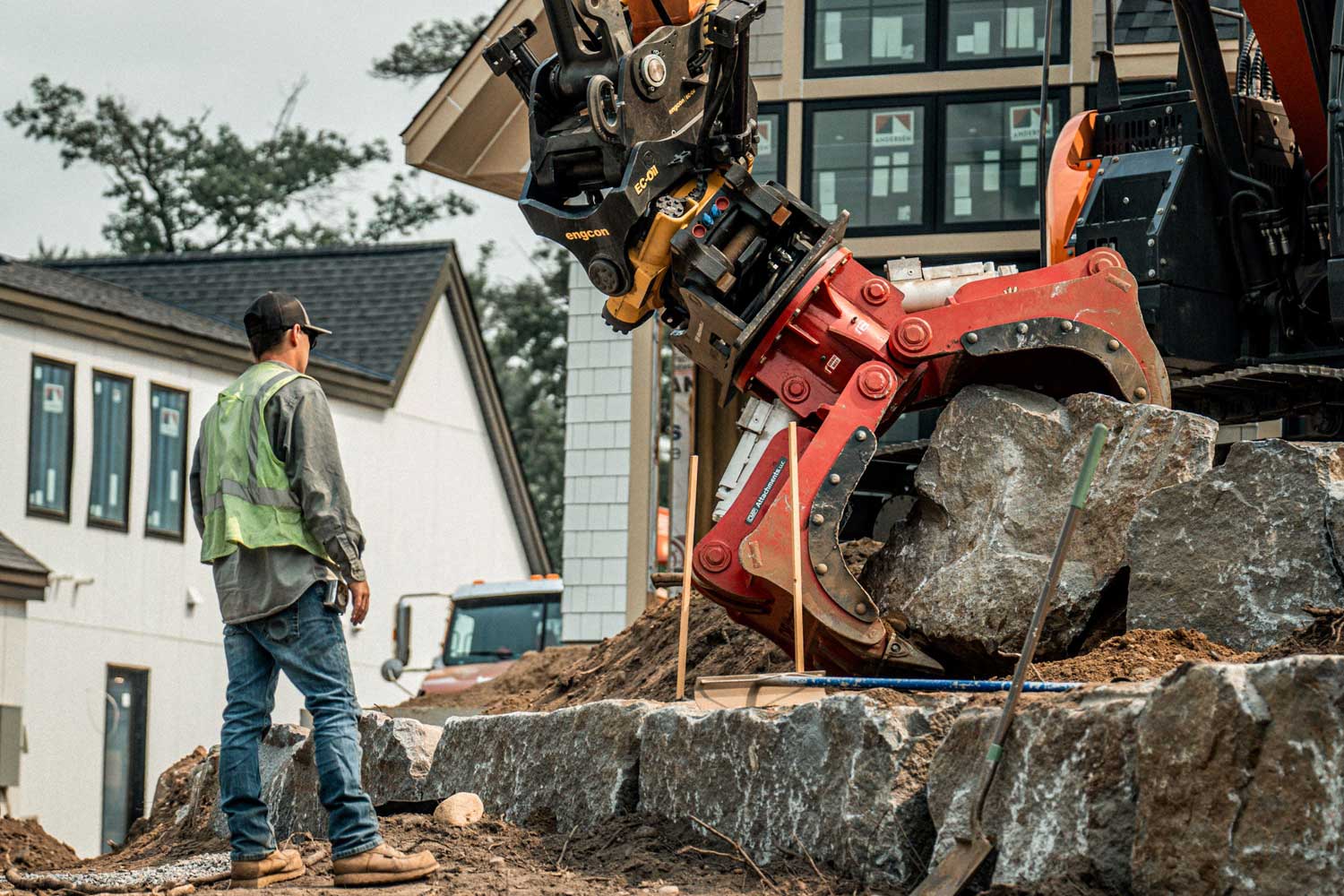

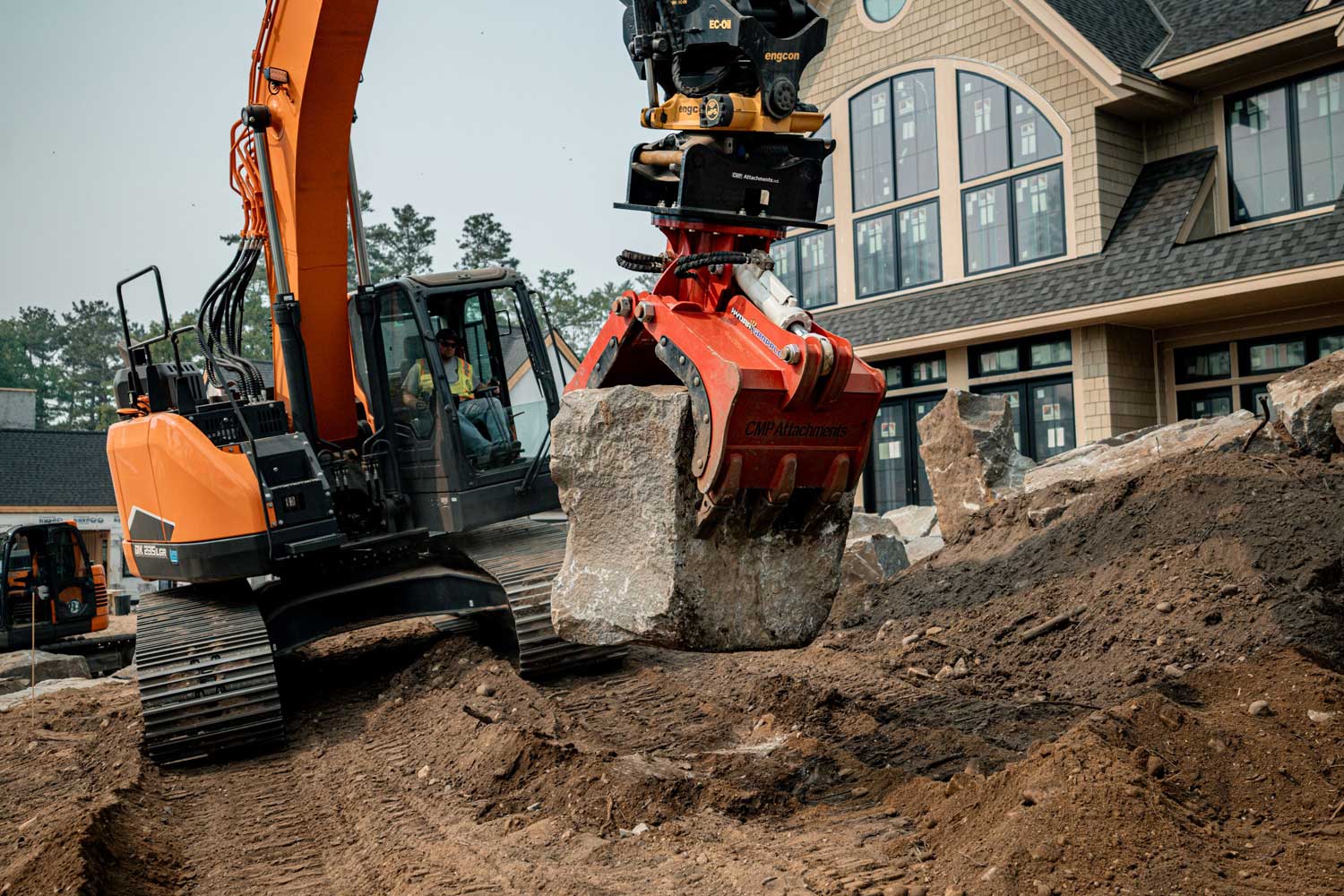

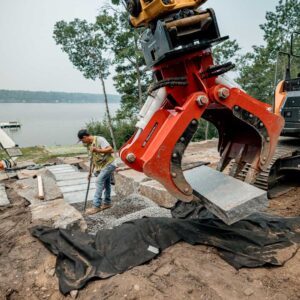

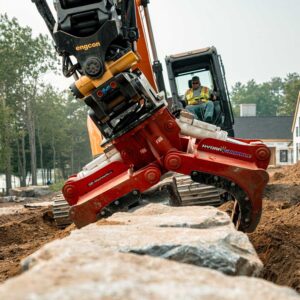

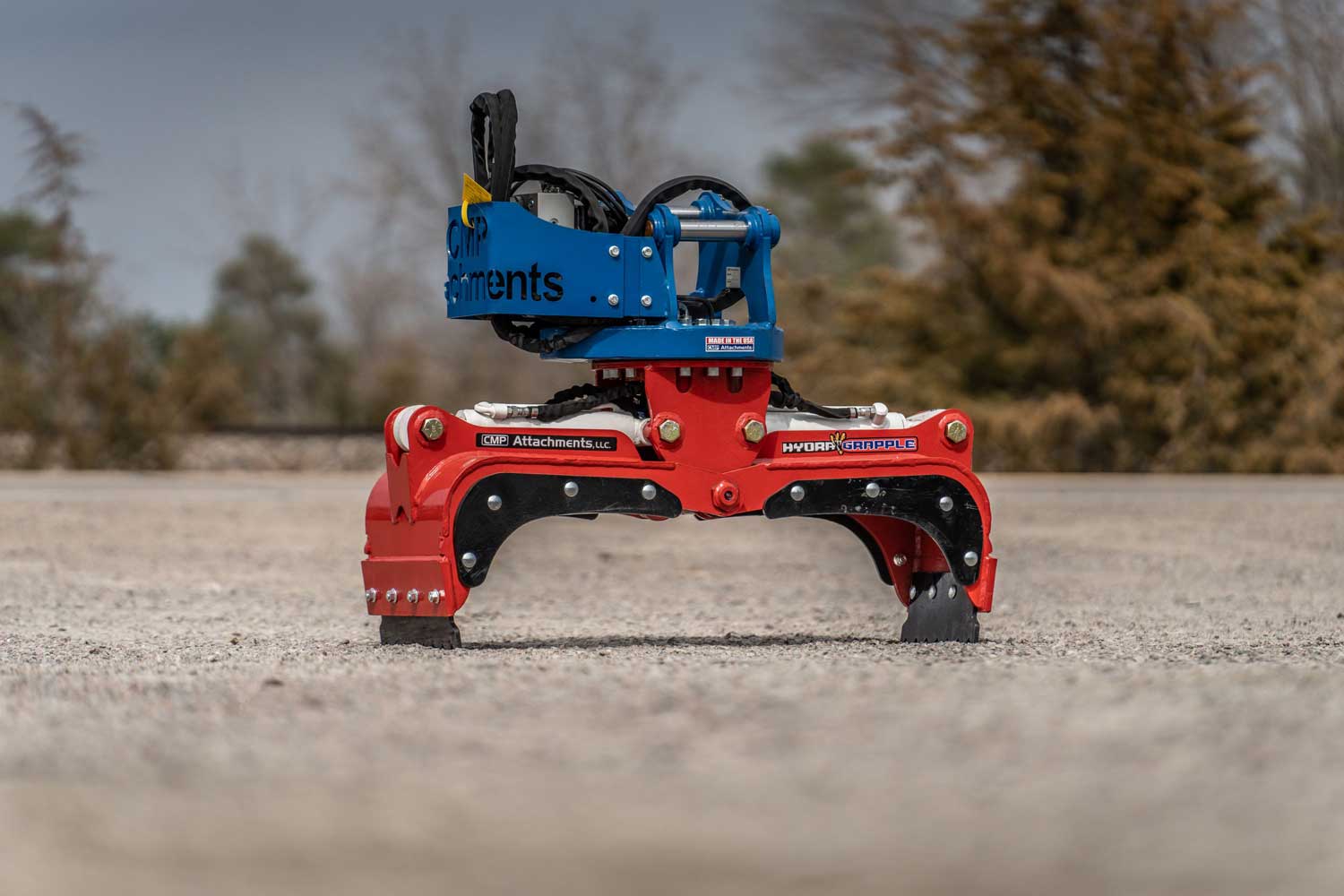

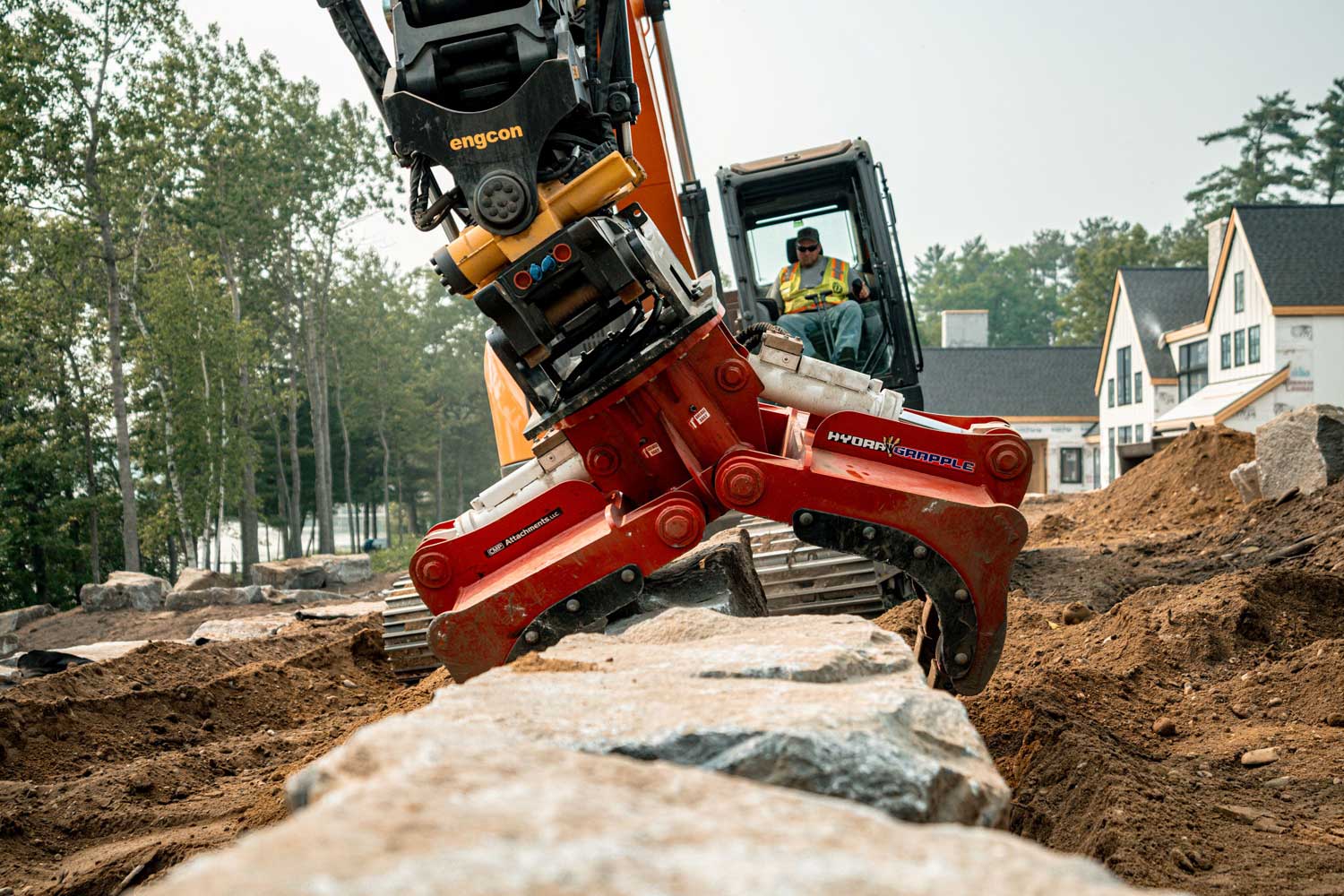

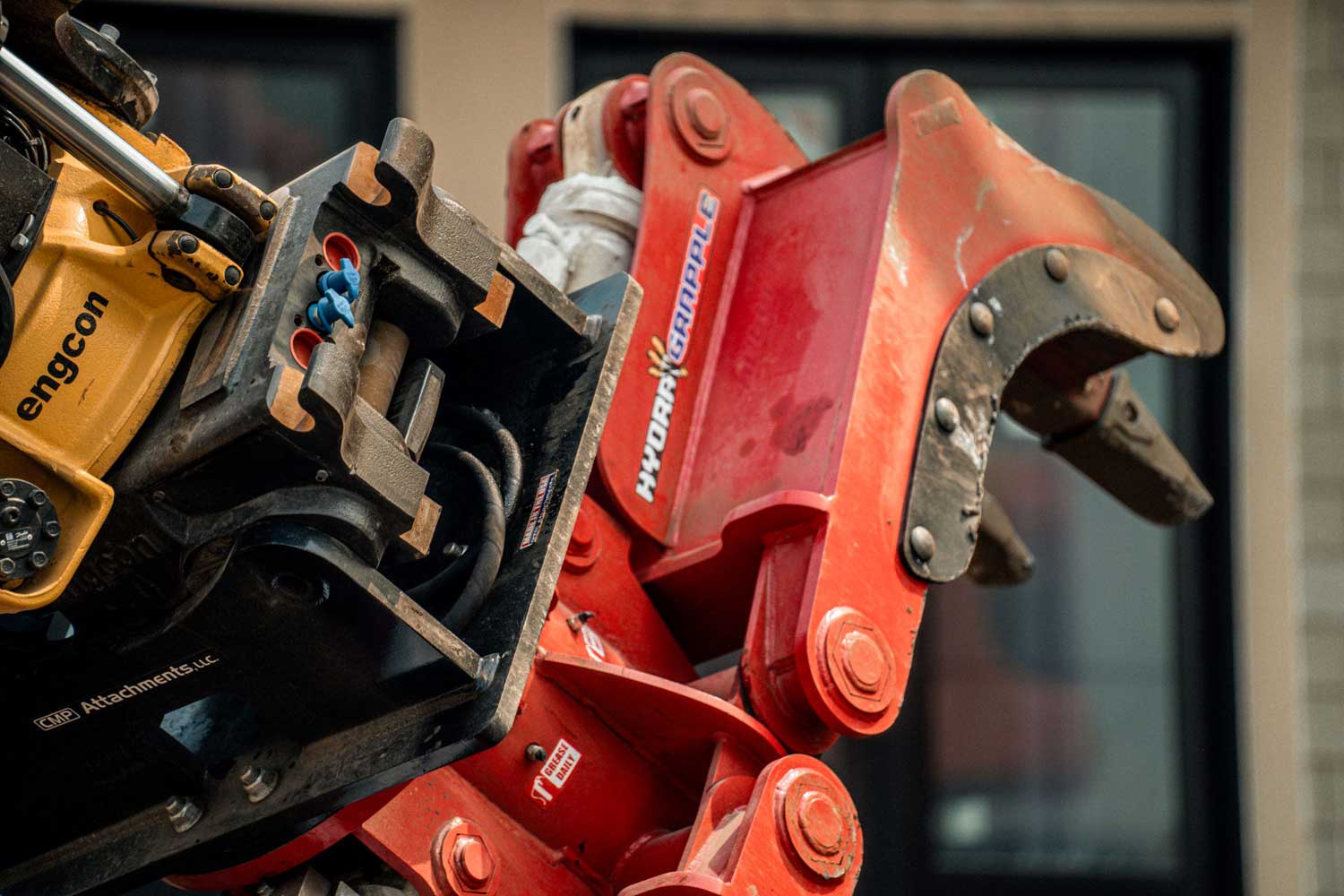

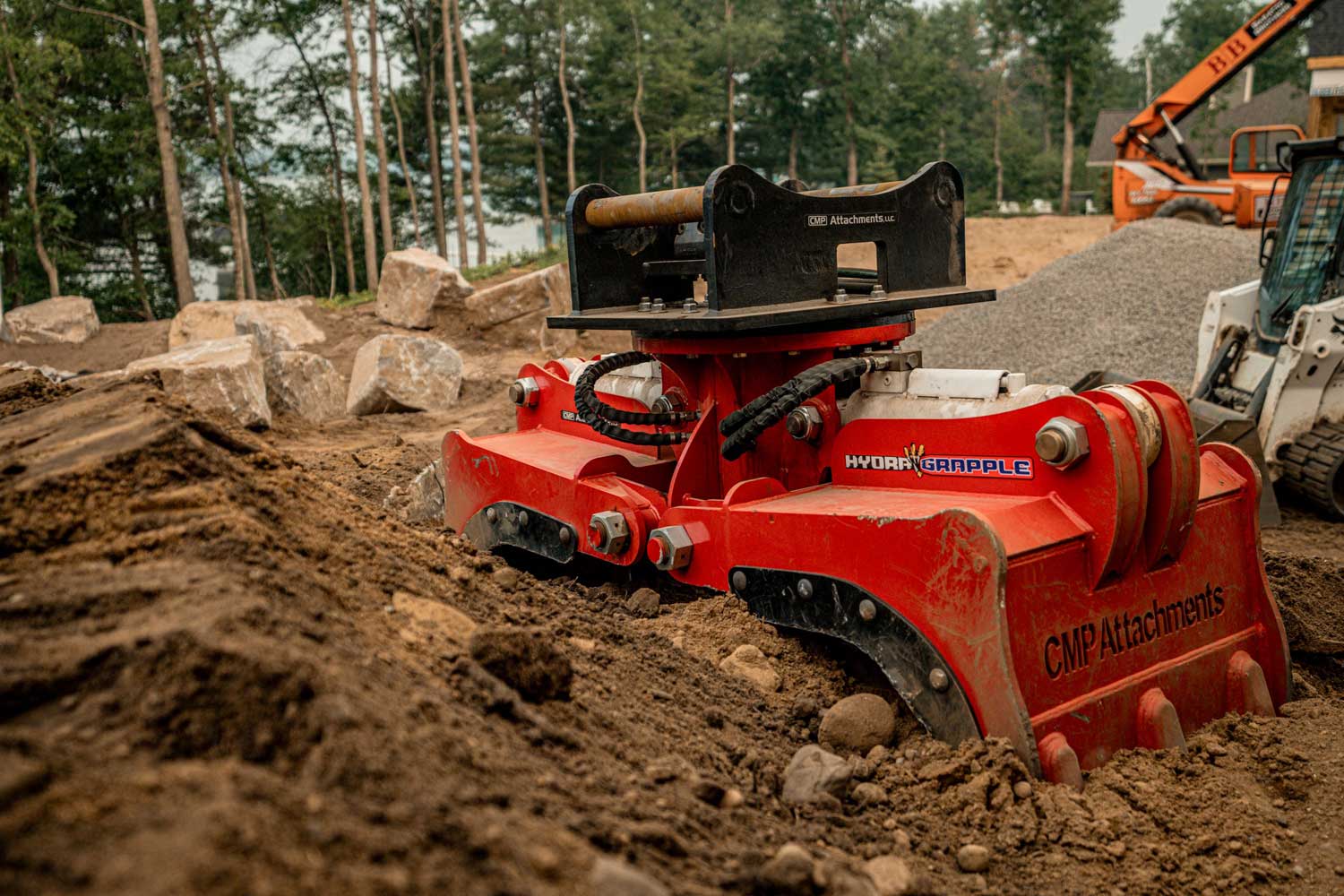

Grab on with your Engcon, Steelwrist, Rototilt, or whatever Tiltrotator you like and get ready for greater profitability, more speed, and less down time. Lock valves come standard on all cylinders, meaning hydraulics are not needed after clamping to objects which allows a return to full excavator operating speed. This speed saves time, inhibits exhaustive fuel consumption, and reduces heat exposure to the hydraulic systems.

Our variety of bolt-on cutting edges offer more job versatility and uptime. No matter your machine size, from 2,500lbs to 120,000lbs, we have a Hydra Grapple for you.

Features:

Edges are built with heavy duty hardened steel. High tensile strength and maximum hardness ensure ultimate longevity throughout the entire chassis.
Rigid quality control during manufacturing ensures reliability and consistency.

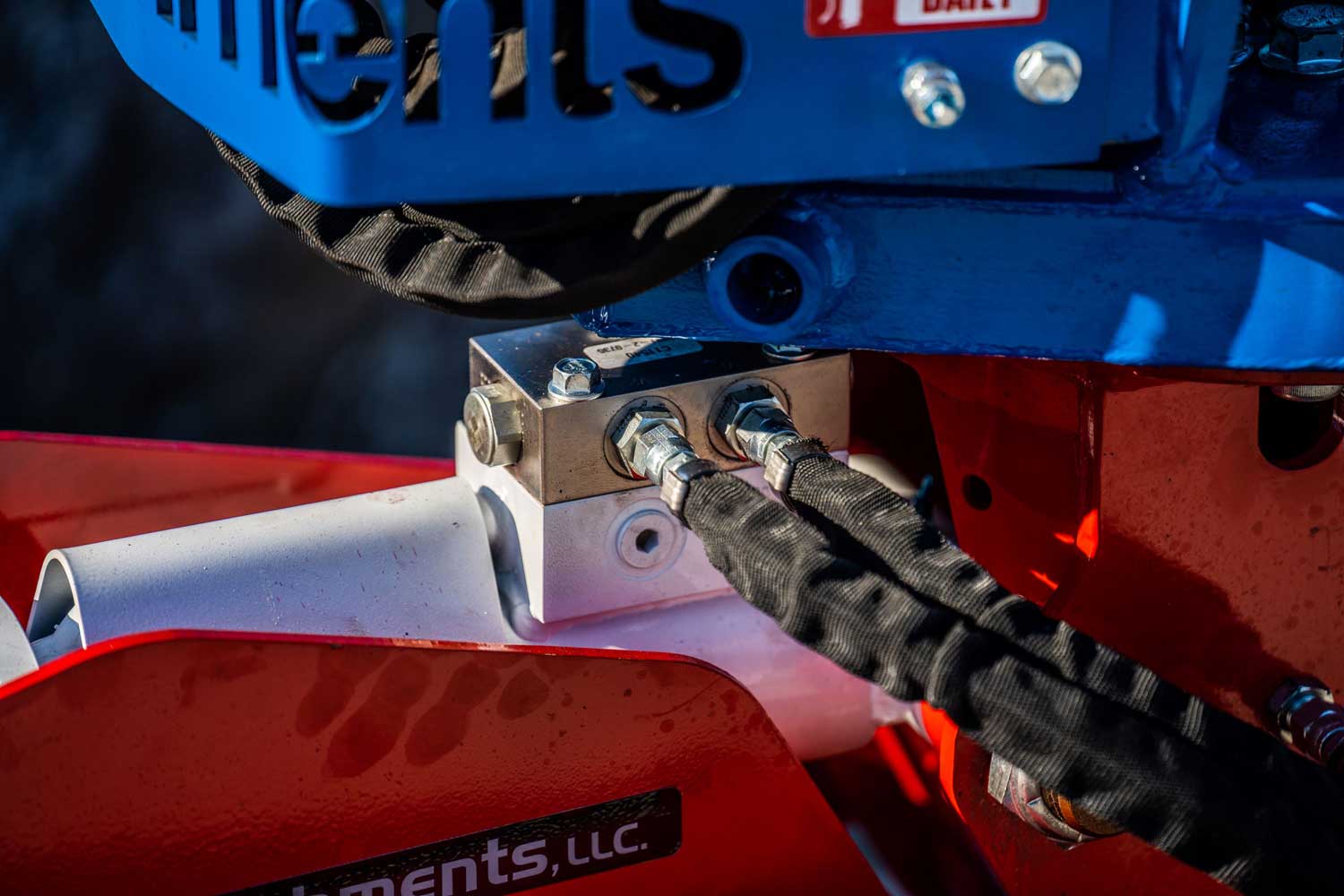

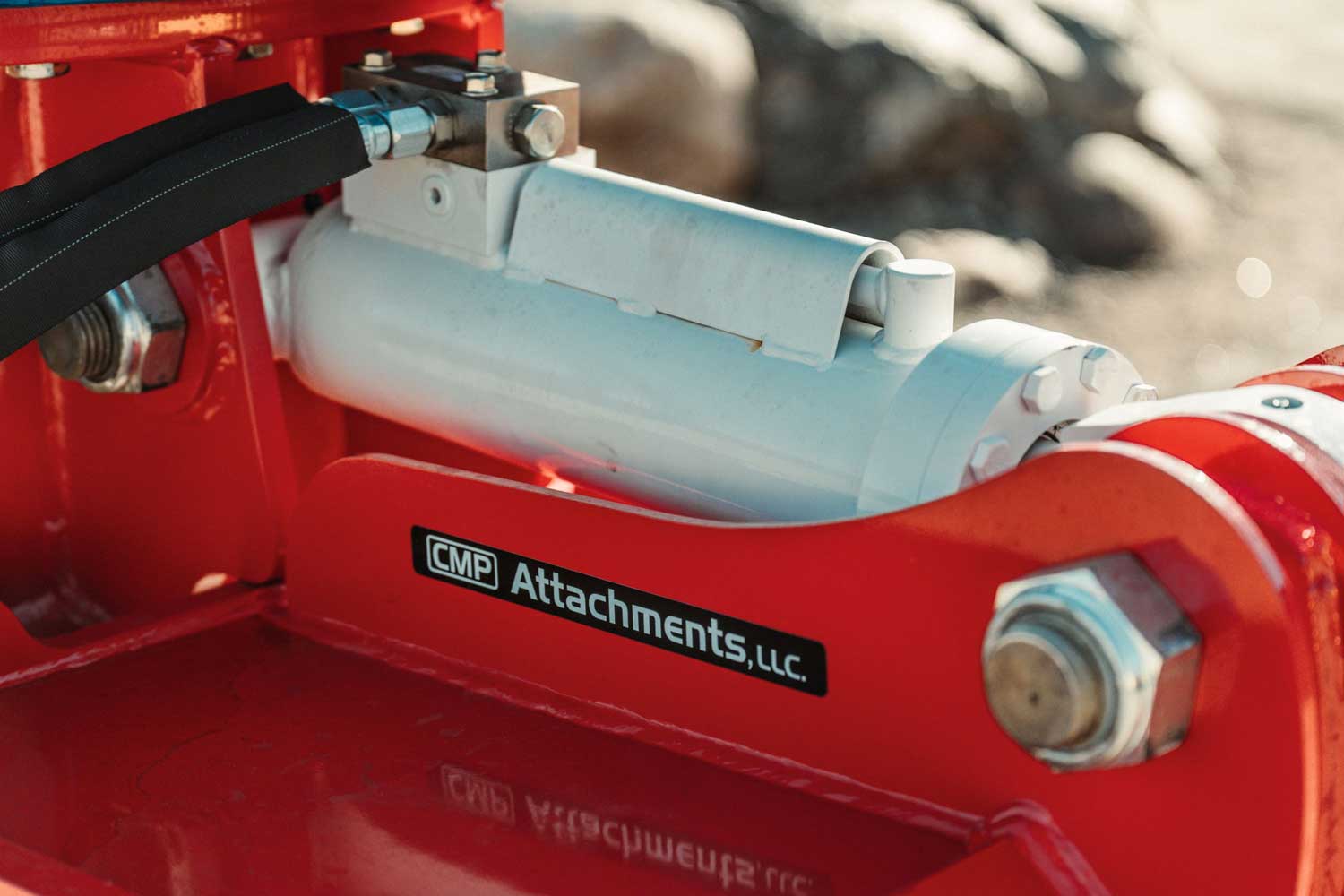

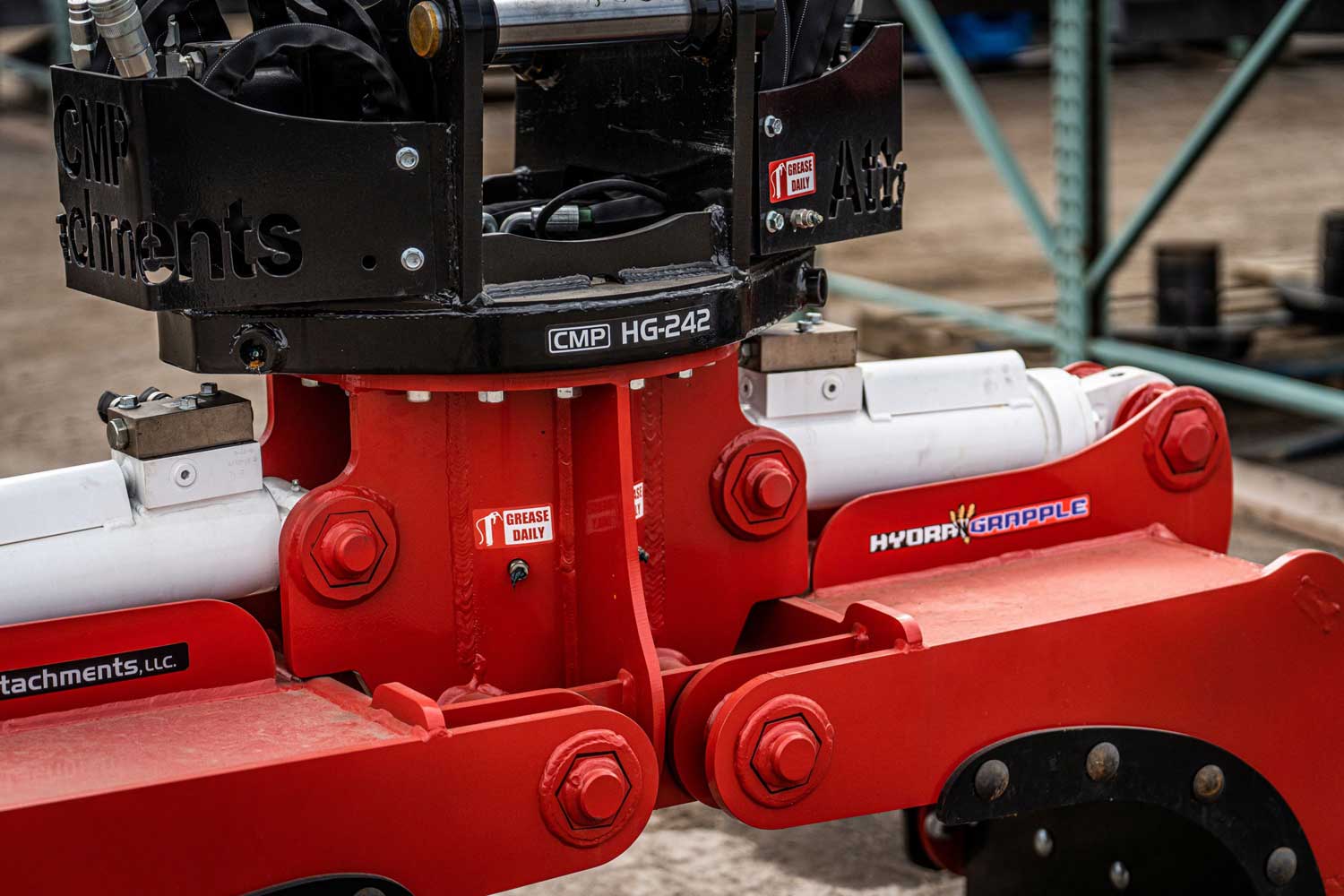

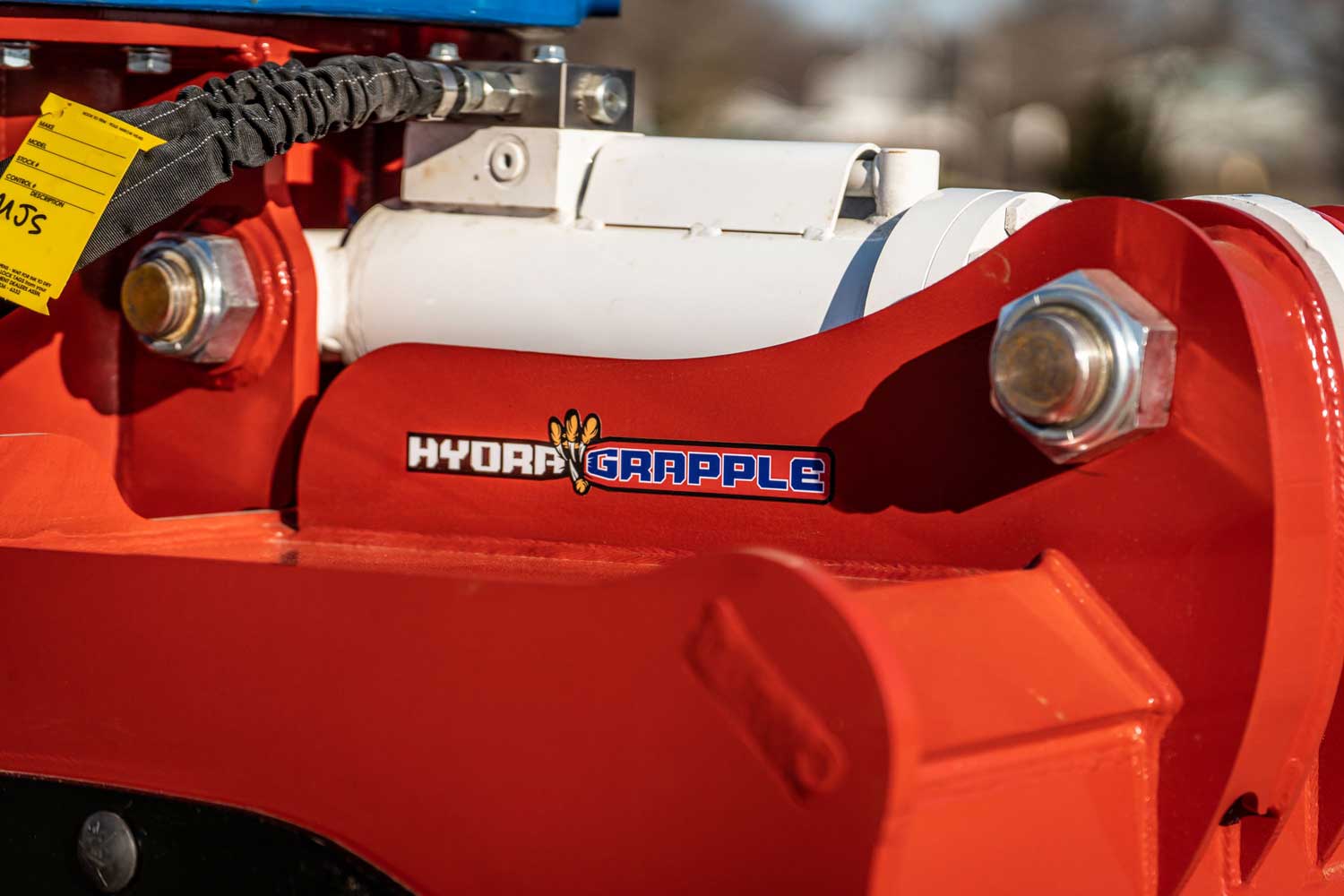

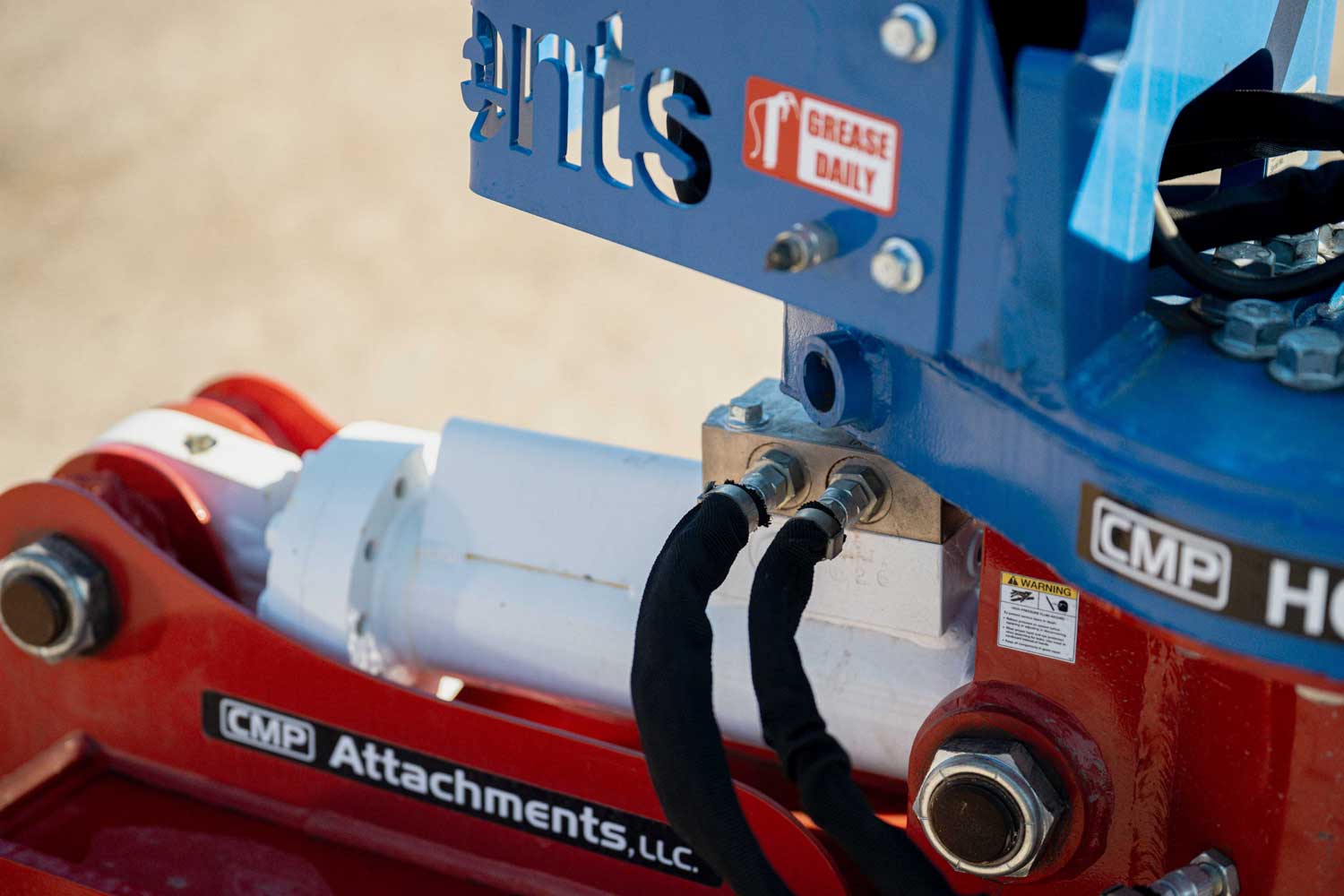

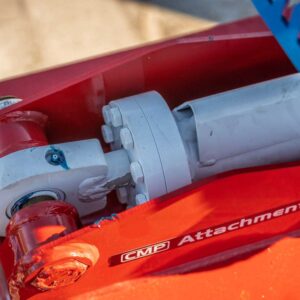

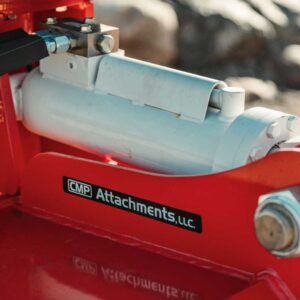

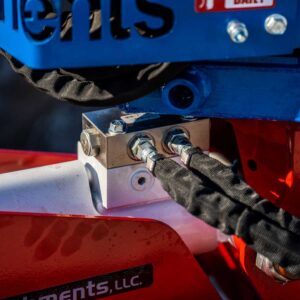

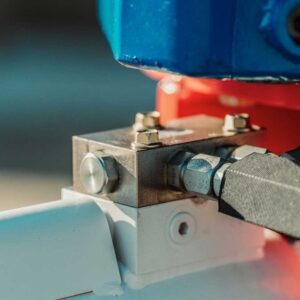

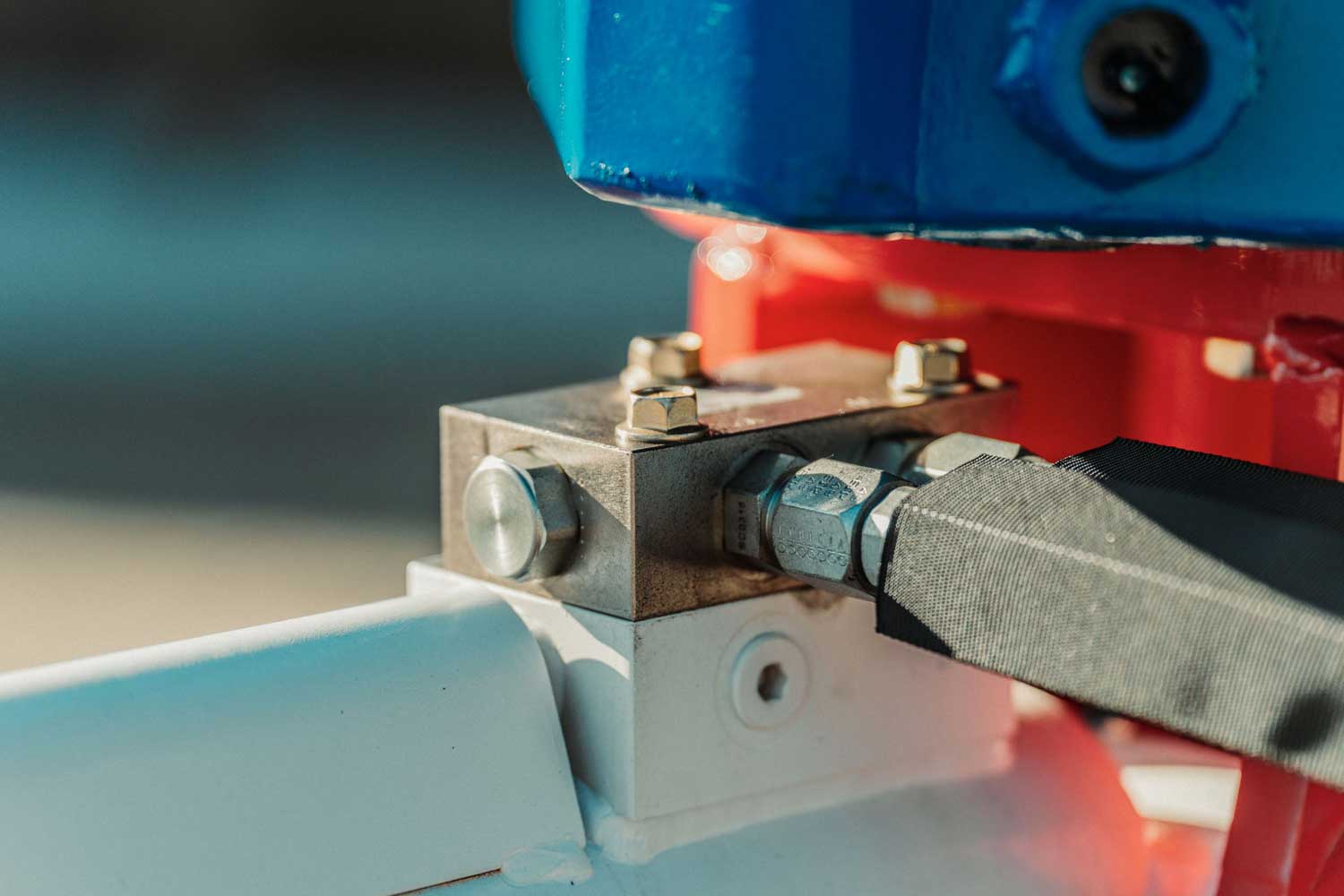

Our exclusive hydraulic cylinder lock valves efficiently hold material without needing to continuously apply auxiliary hydraulic pressure.

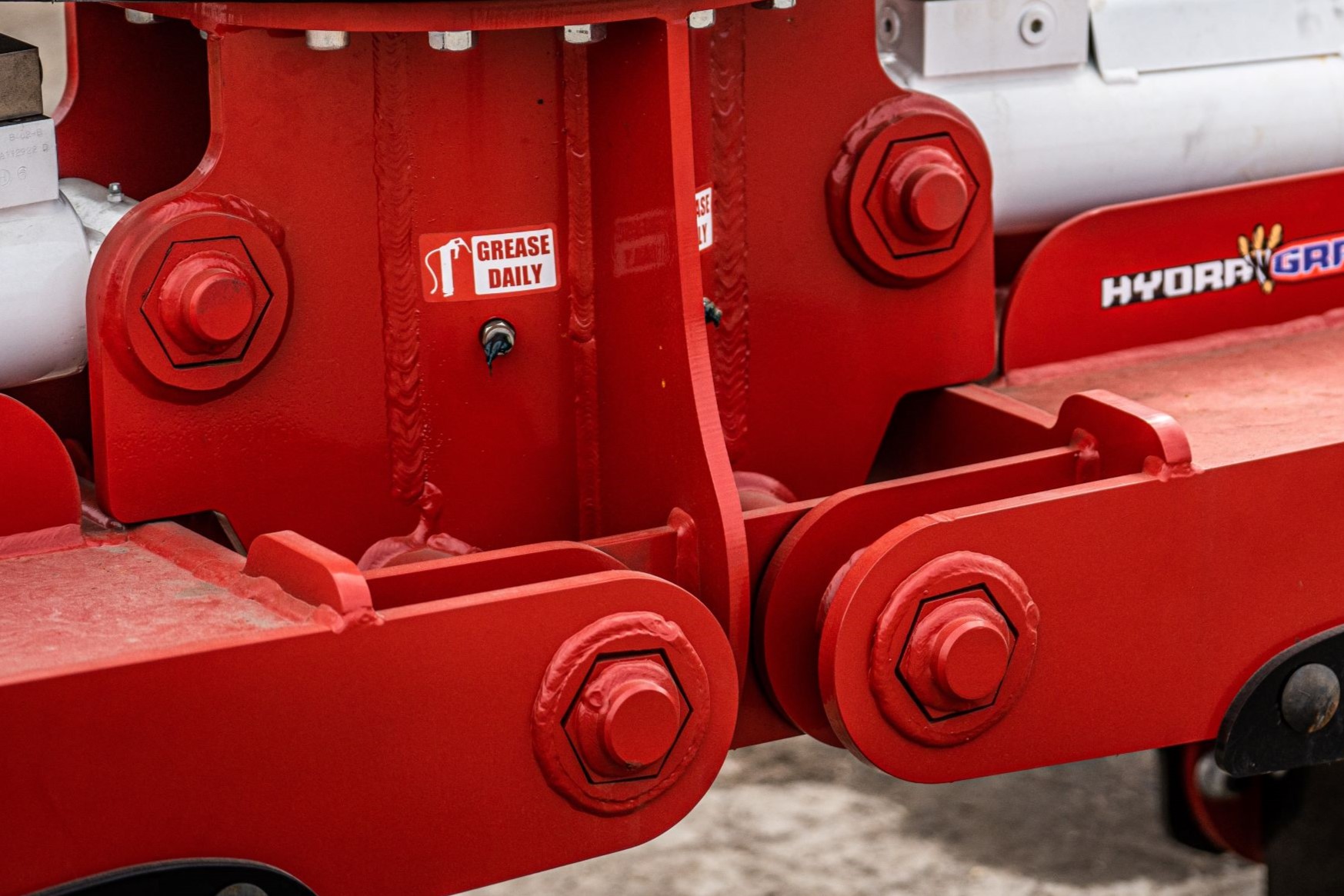

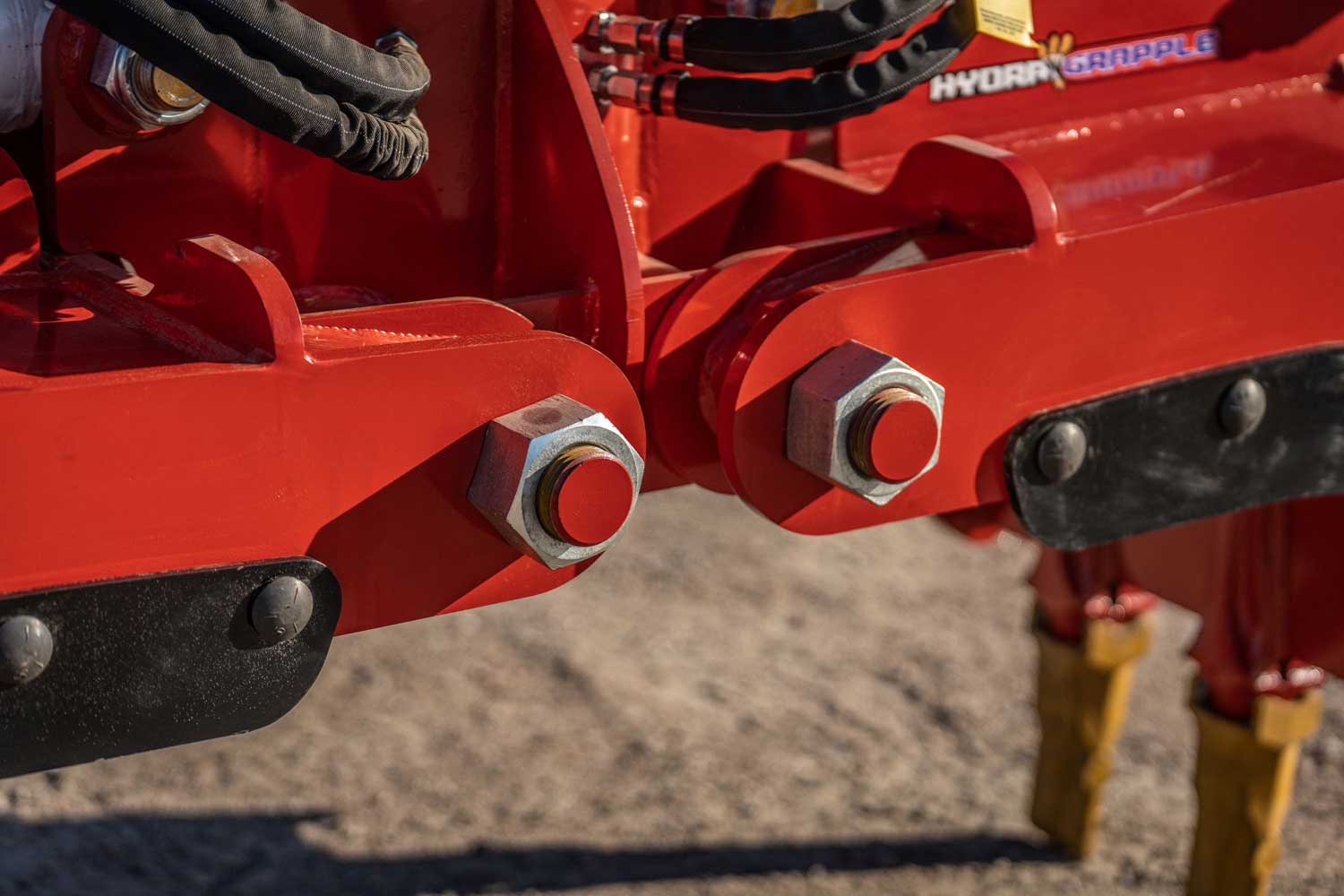

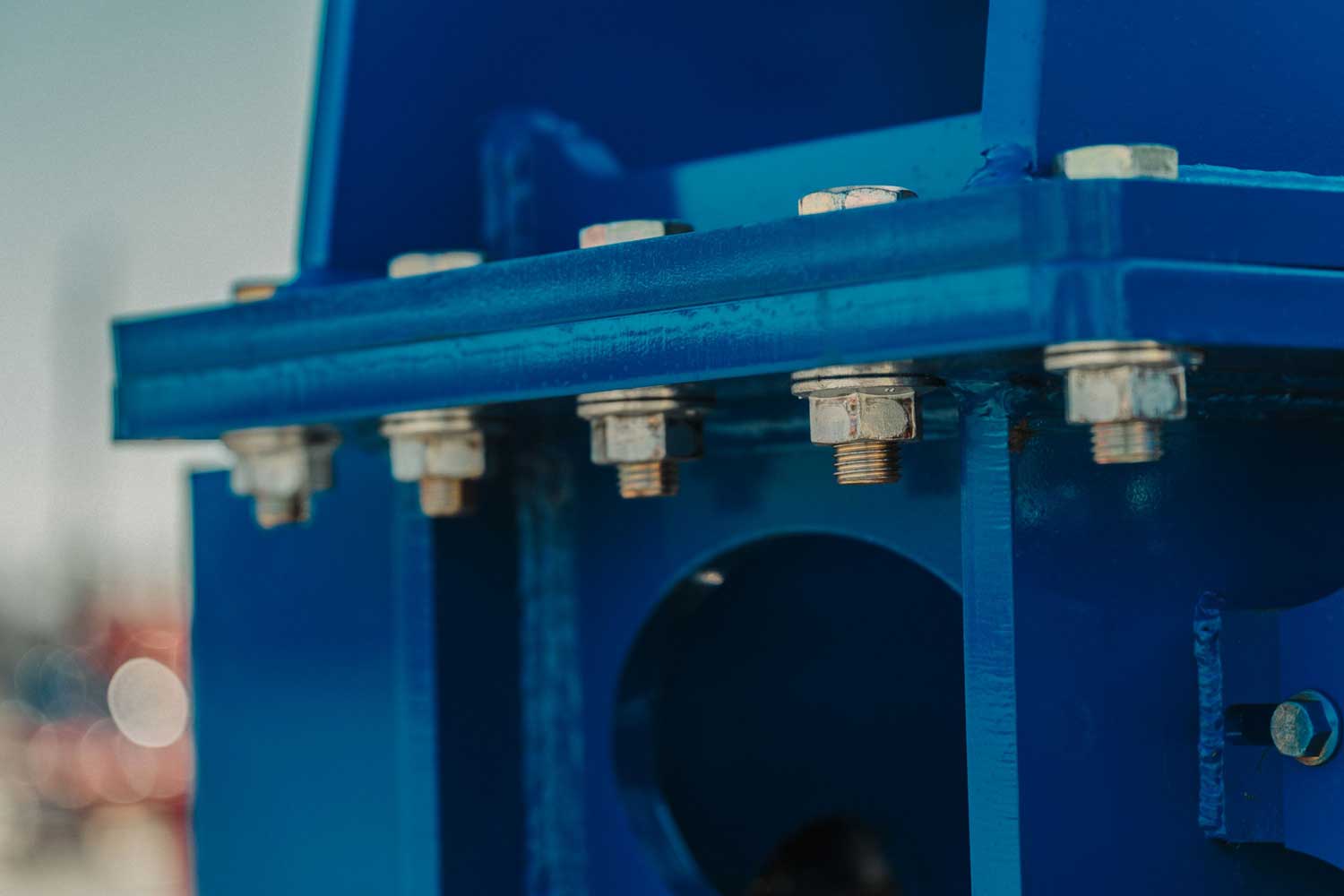

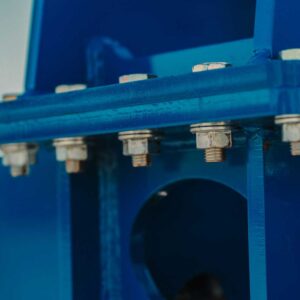

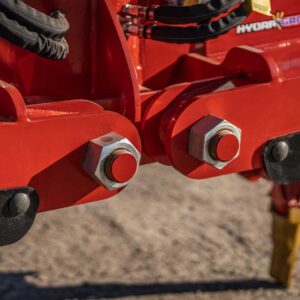

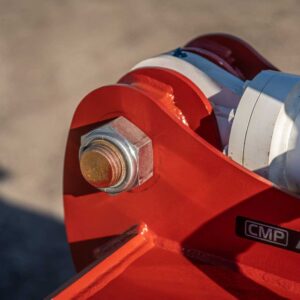

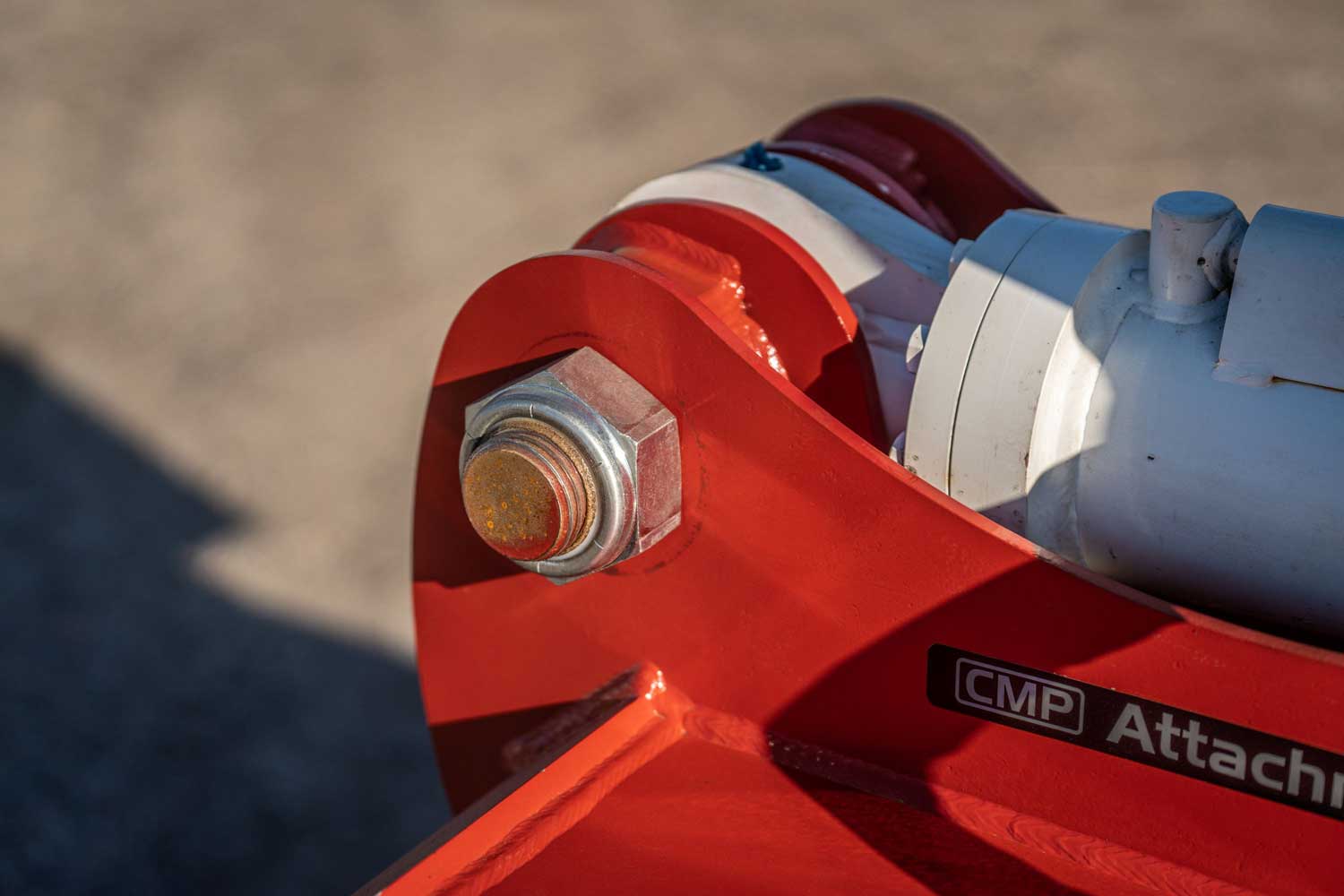

Stress-proof bolts are able to withstand tremendous amounts of flexing and fatigue over the lifetime of the grapple.

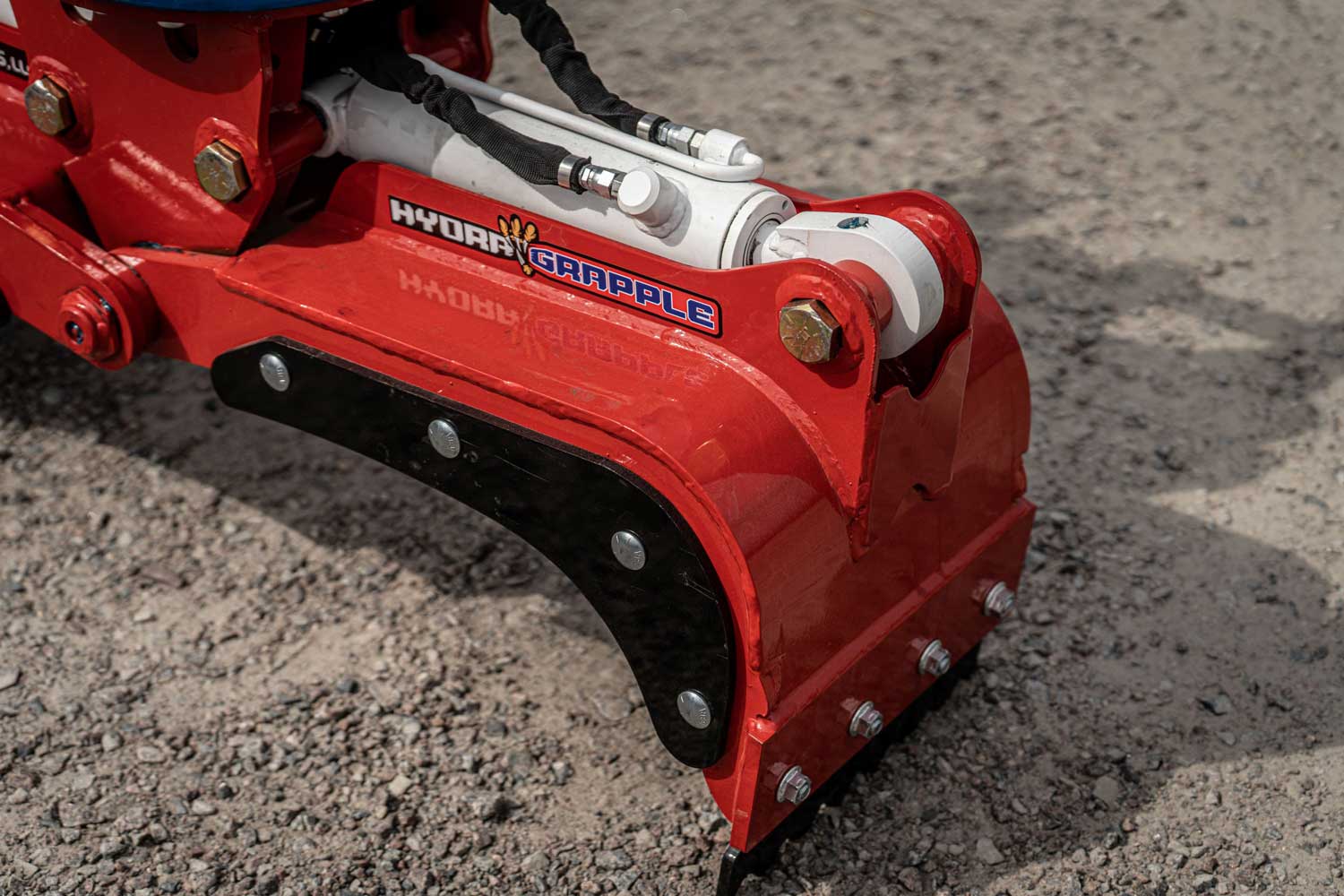

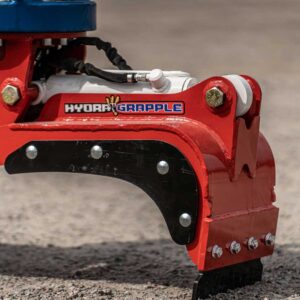

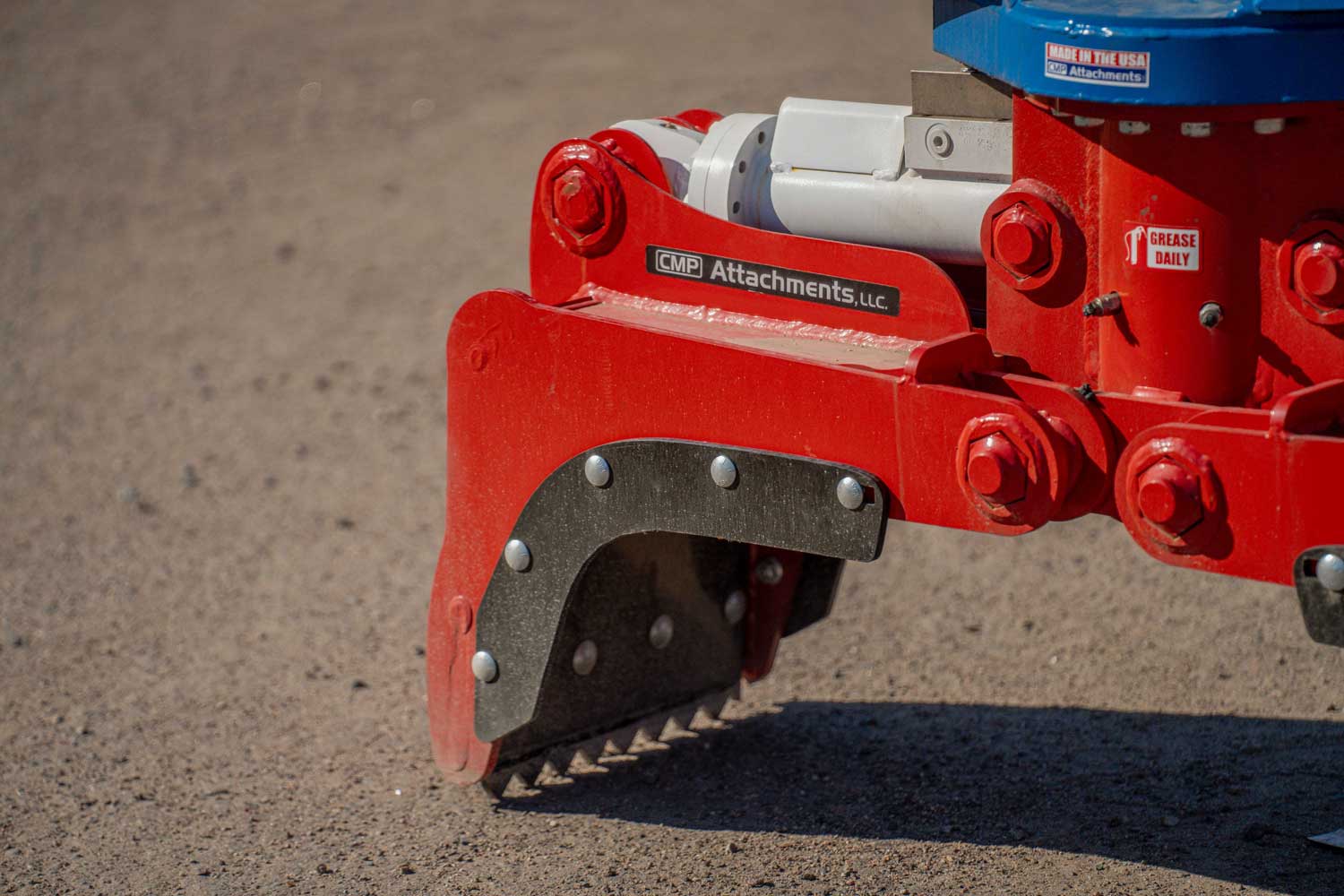

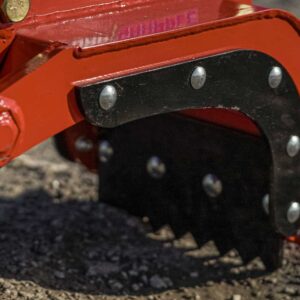

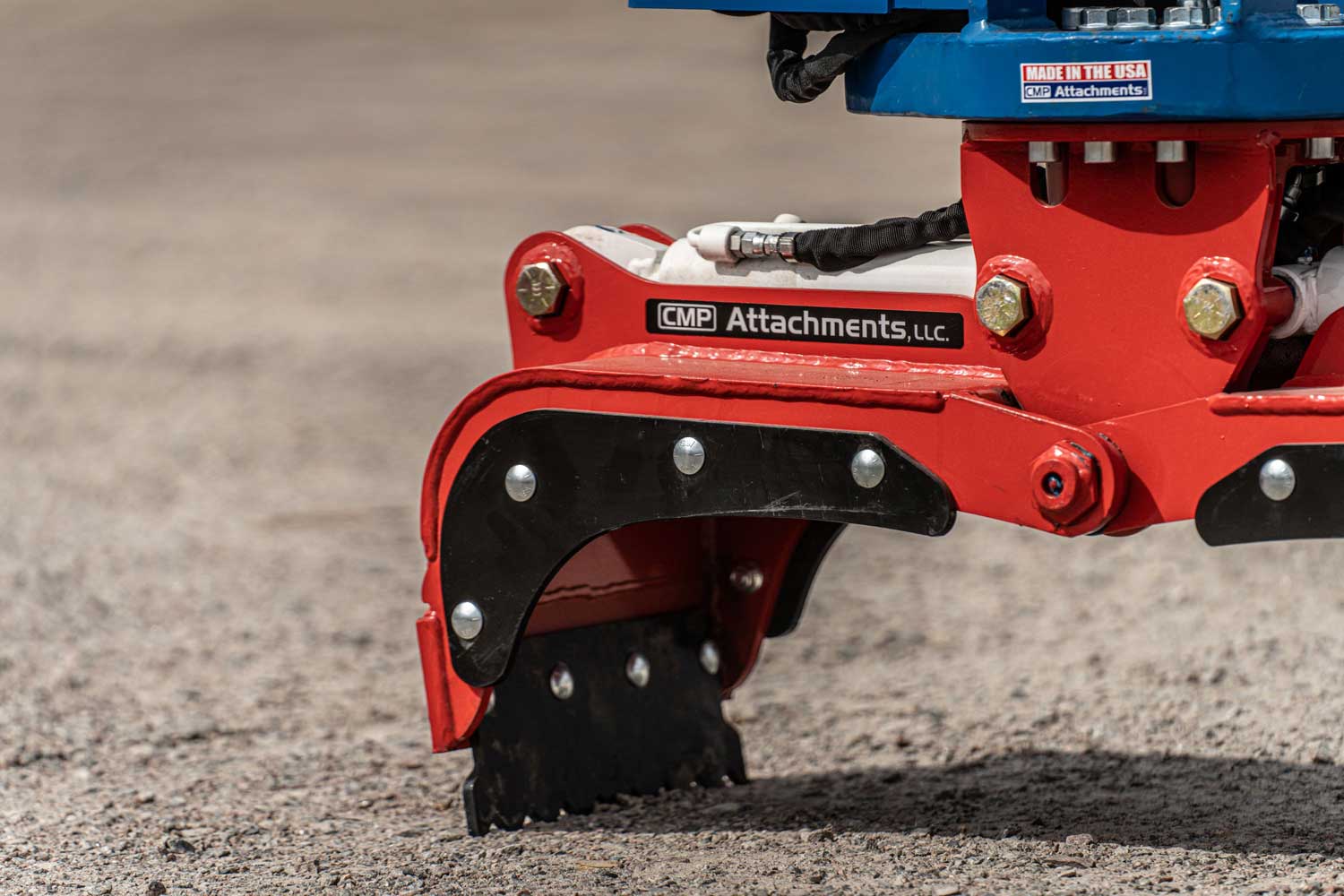

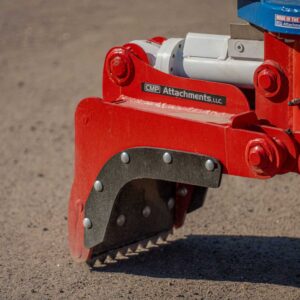

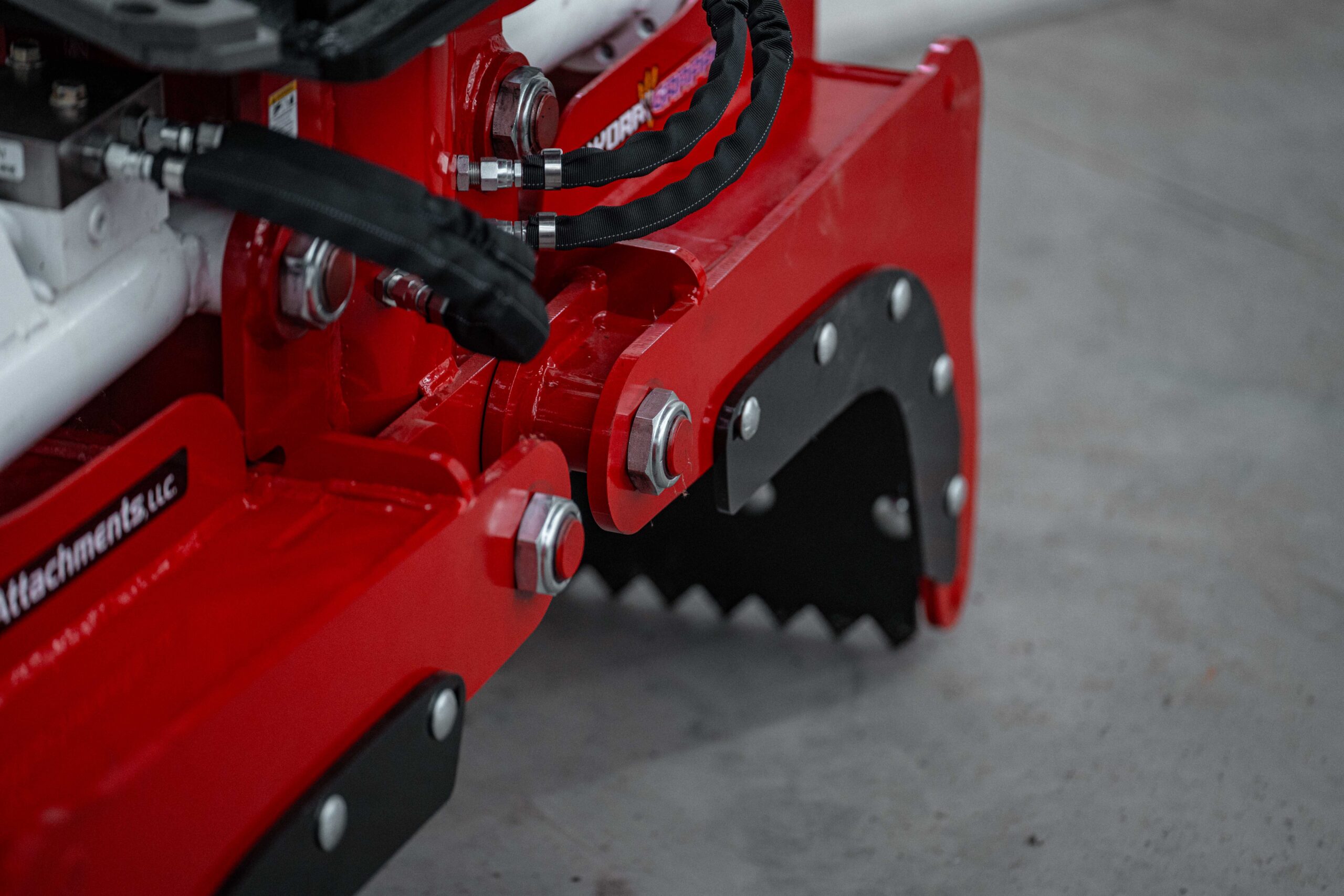

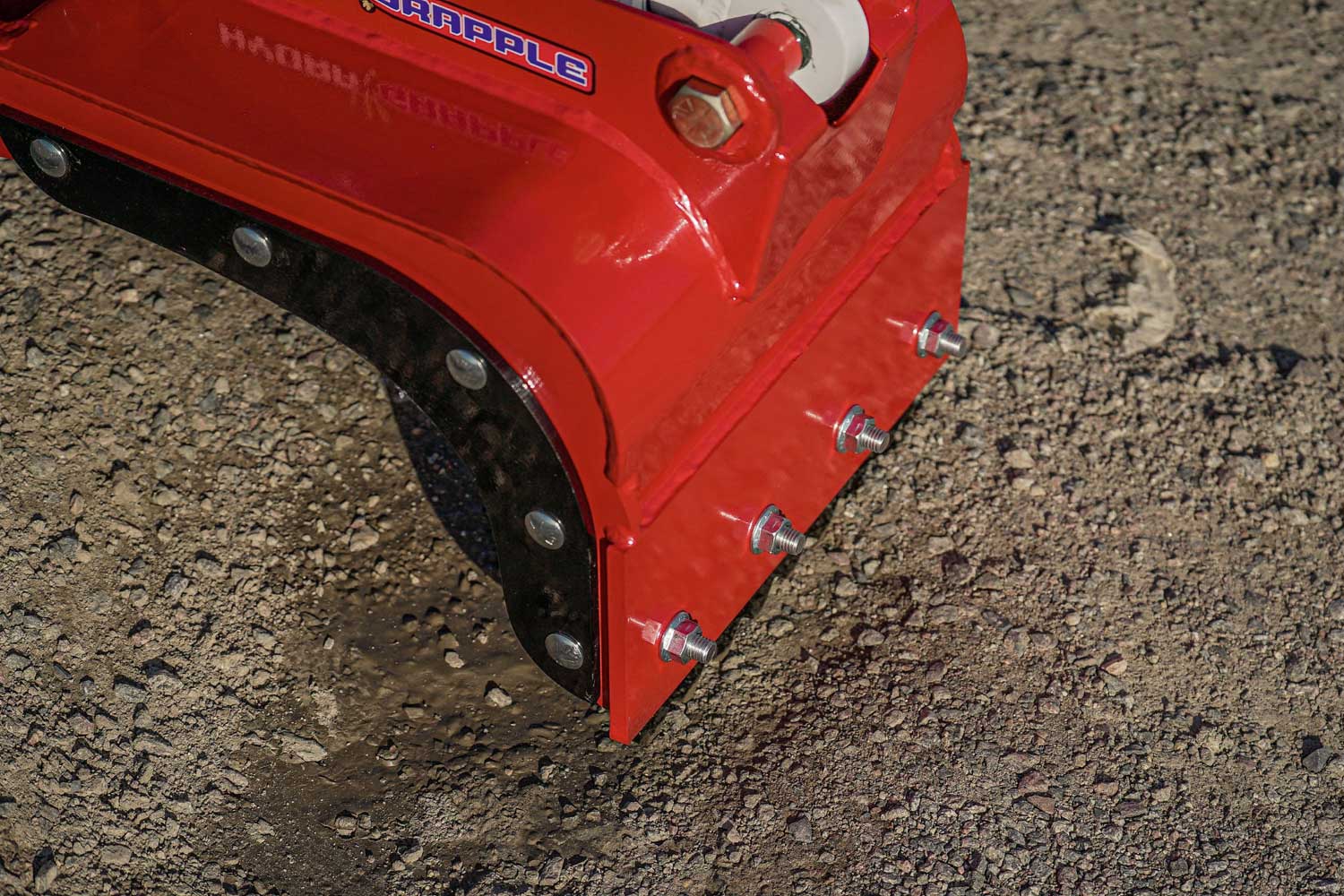

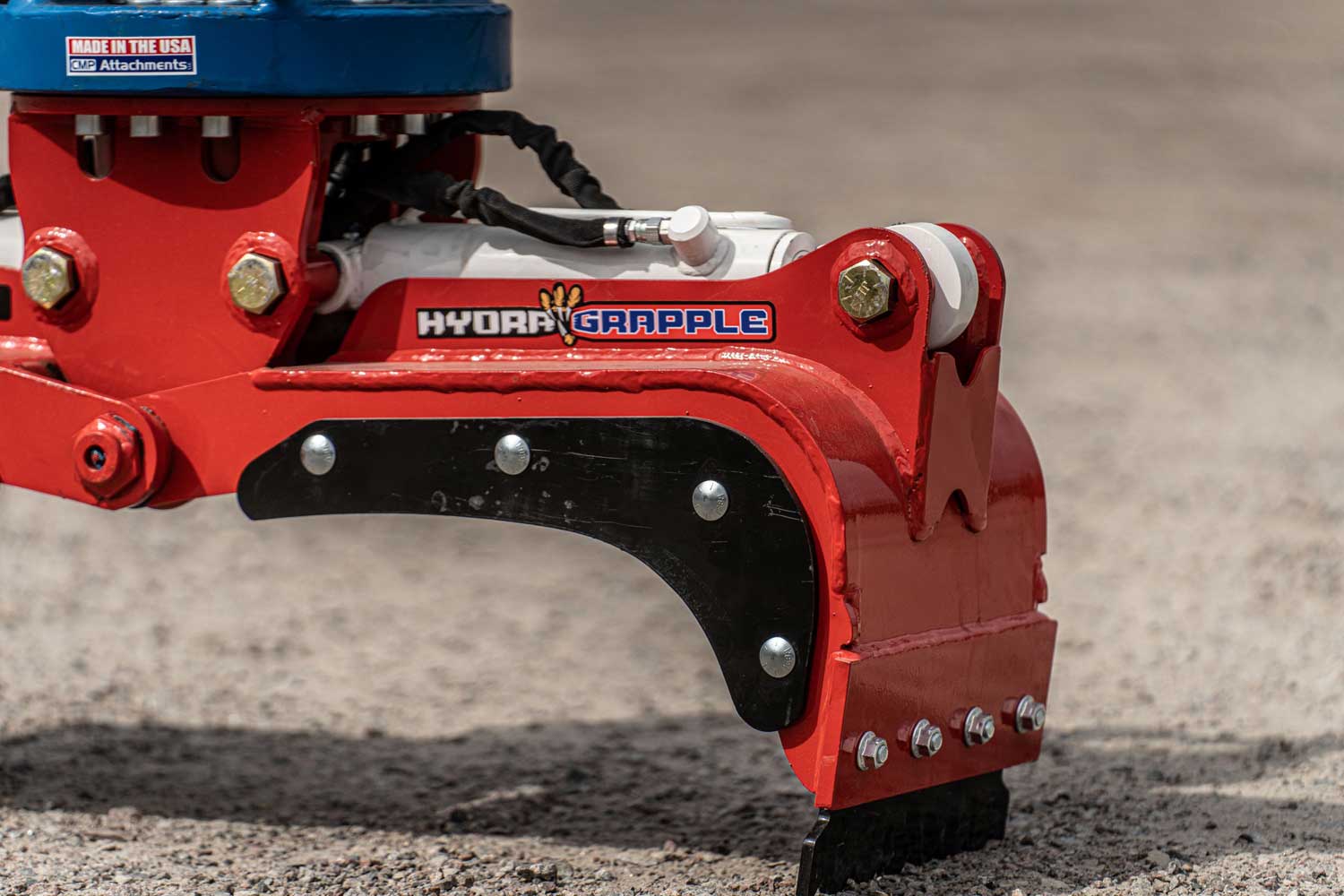

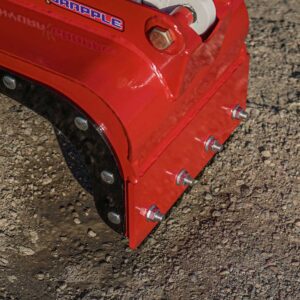

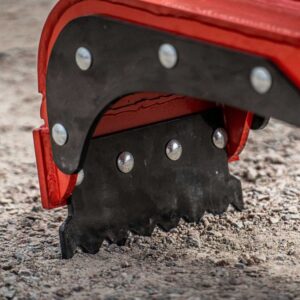

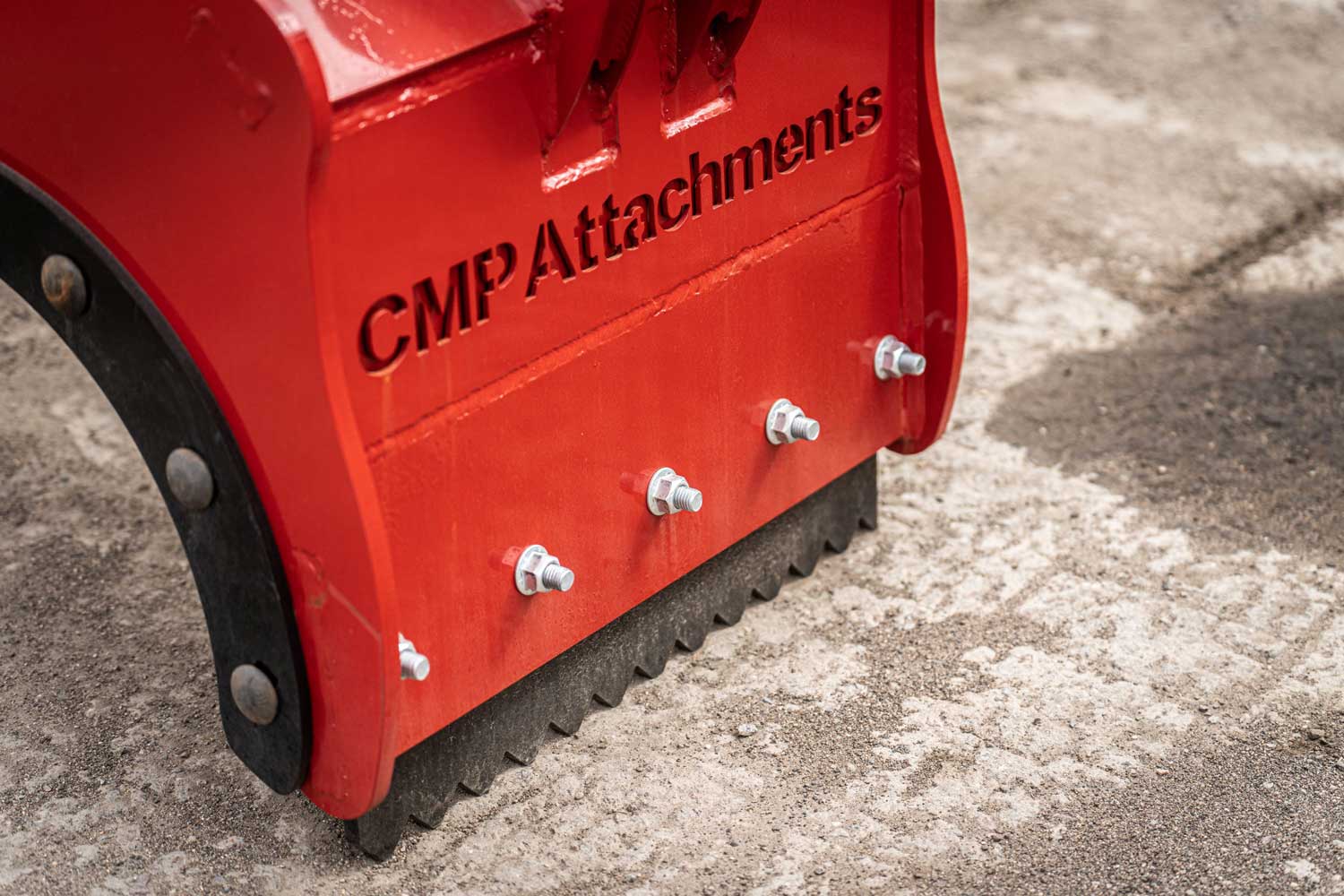

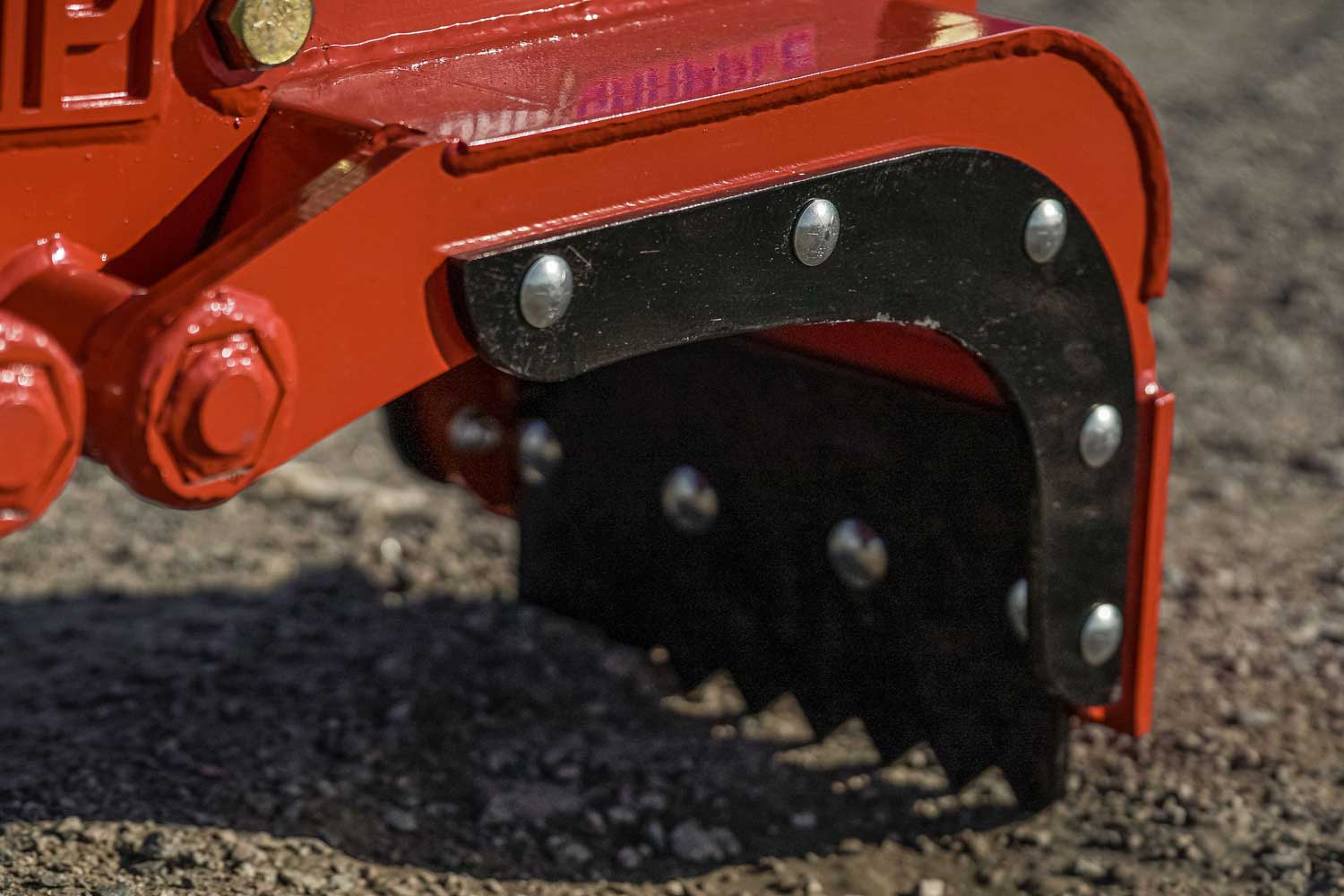

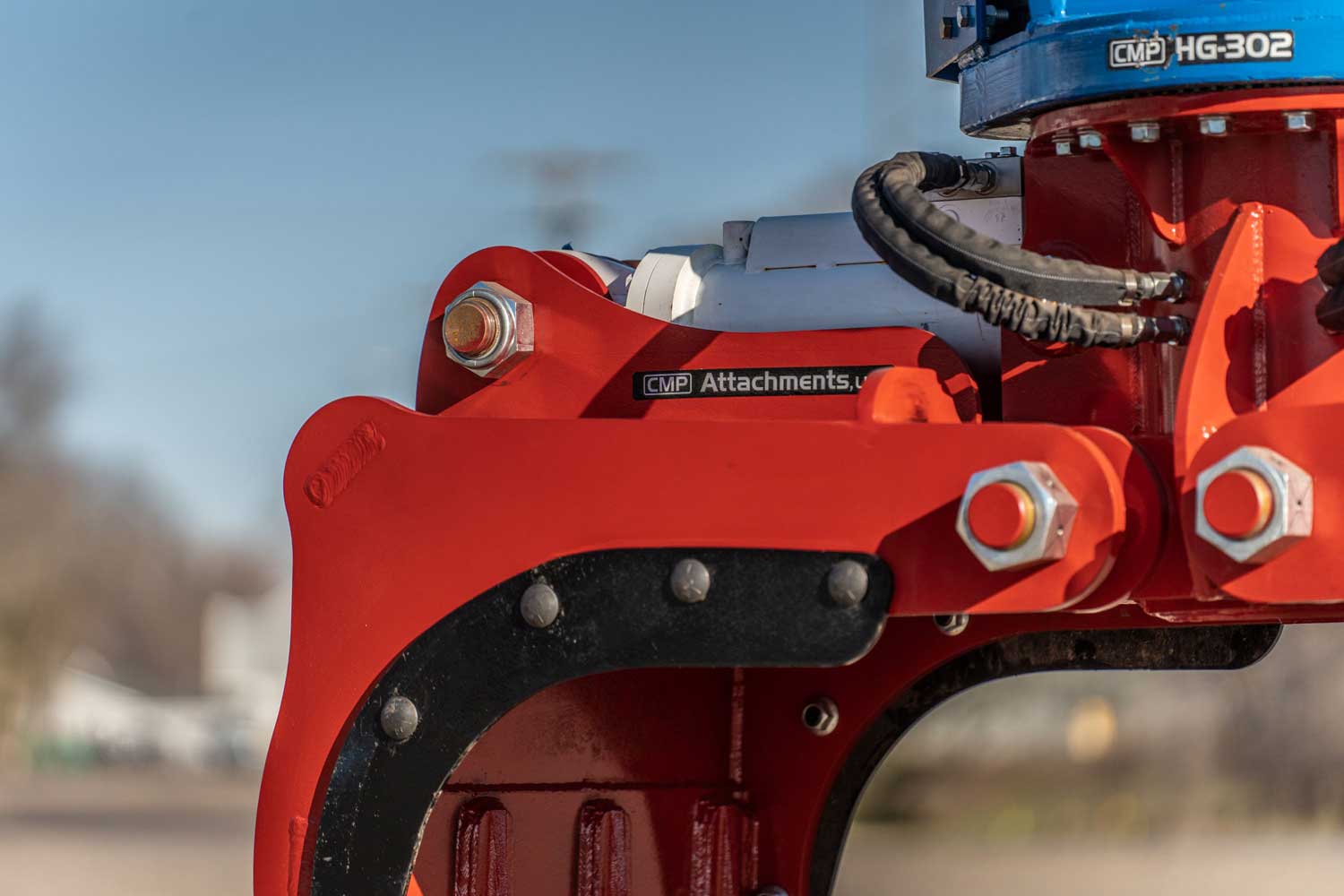

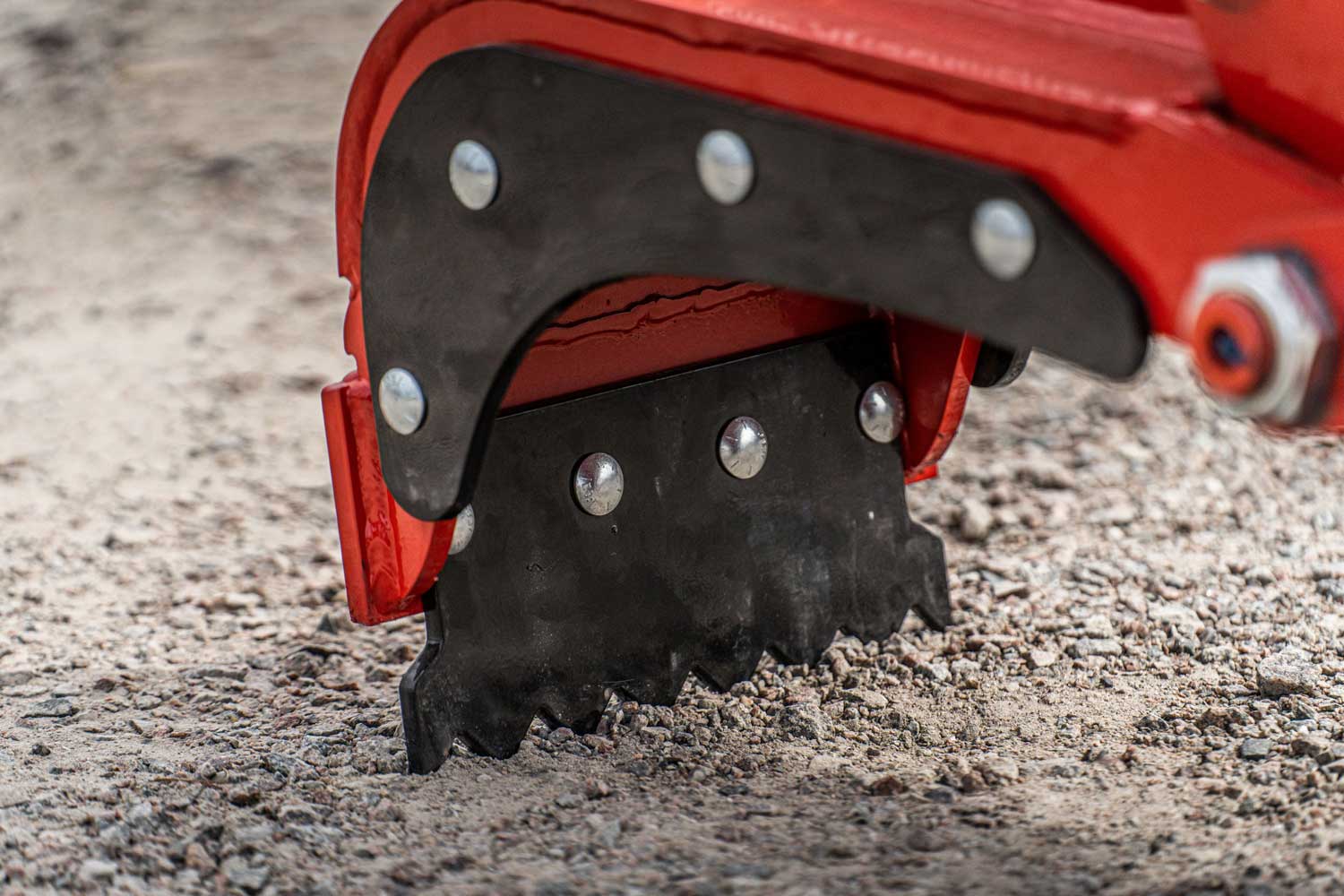

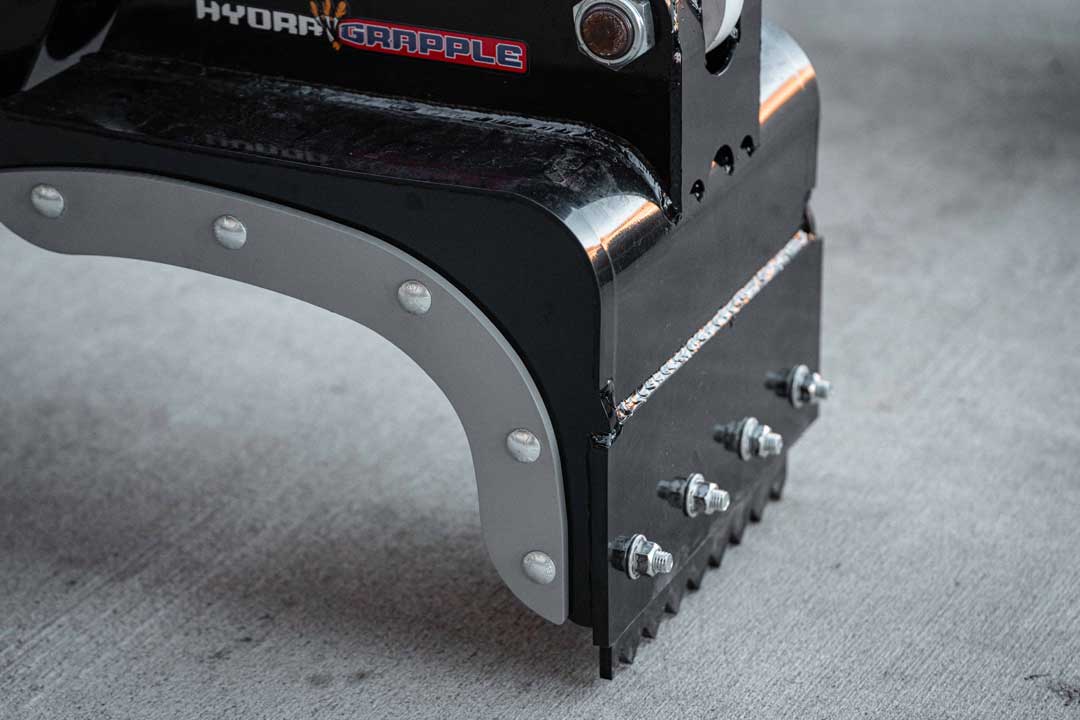

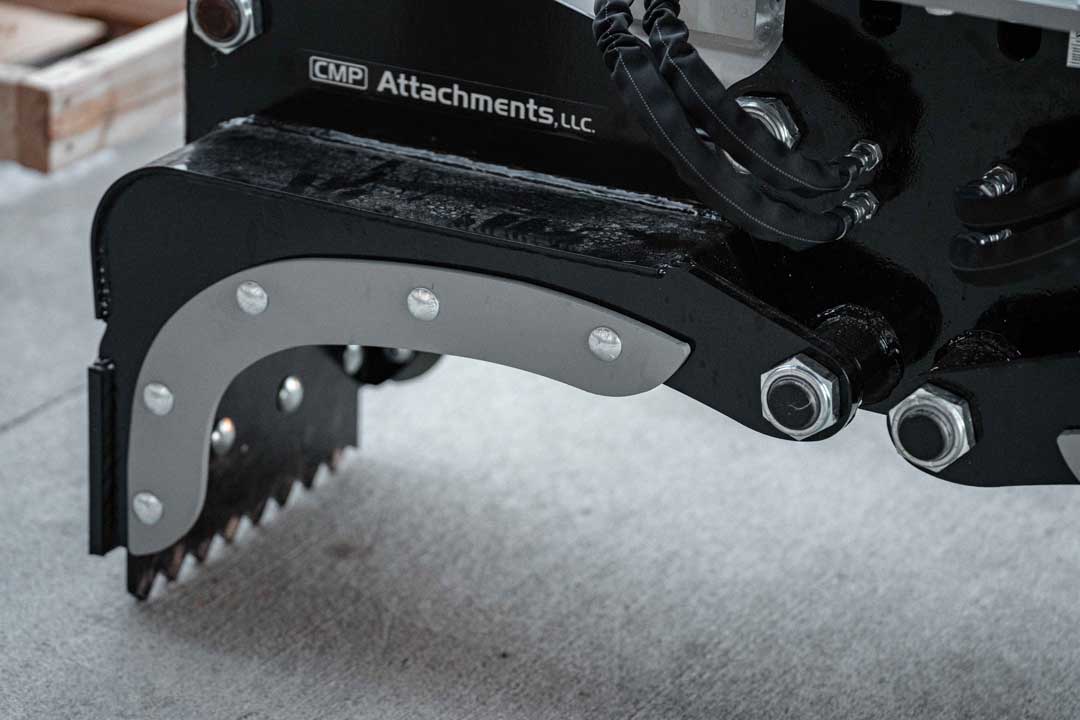

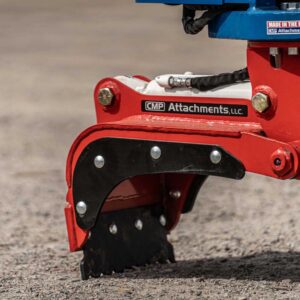

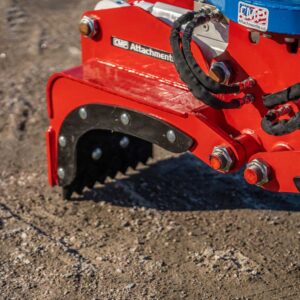

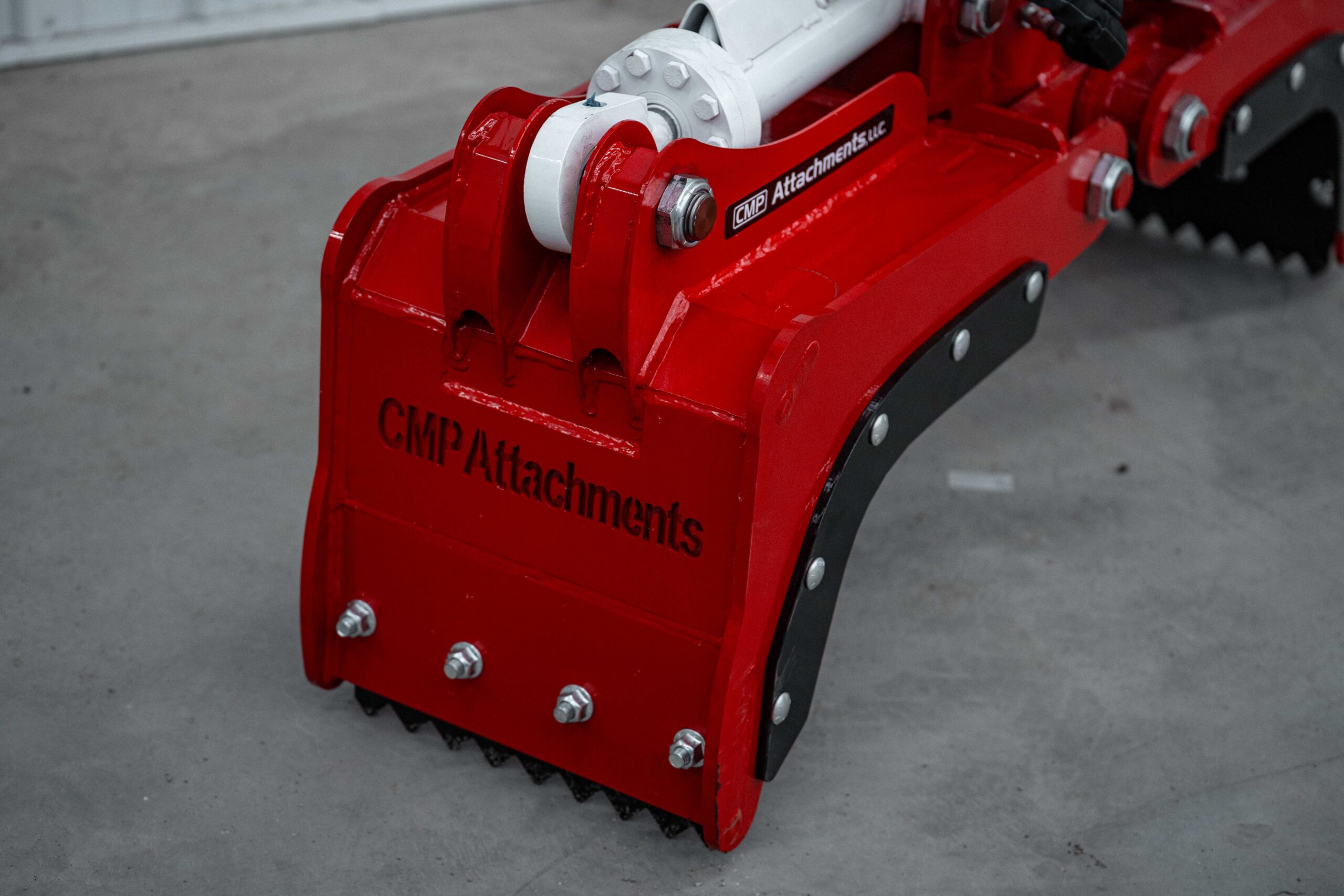

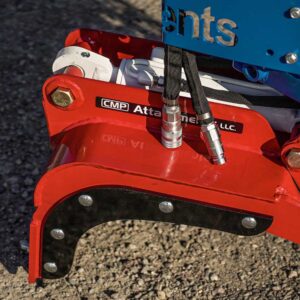

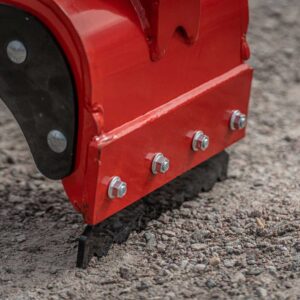

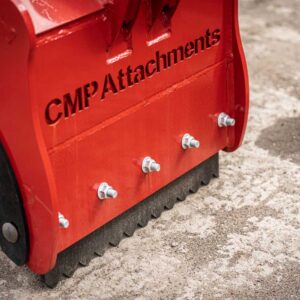

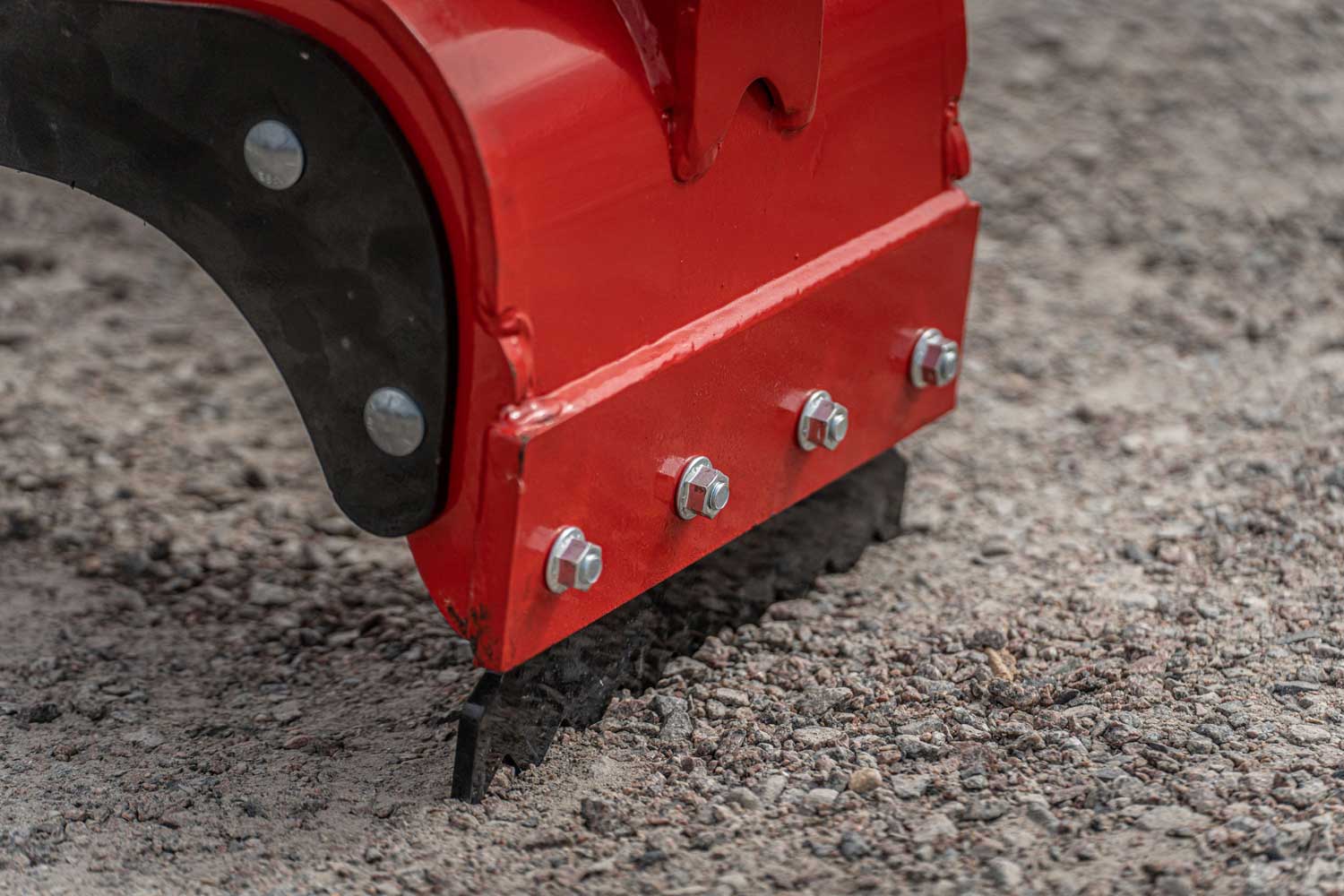

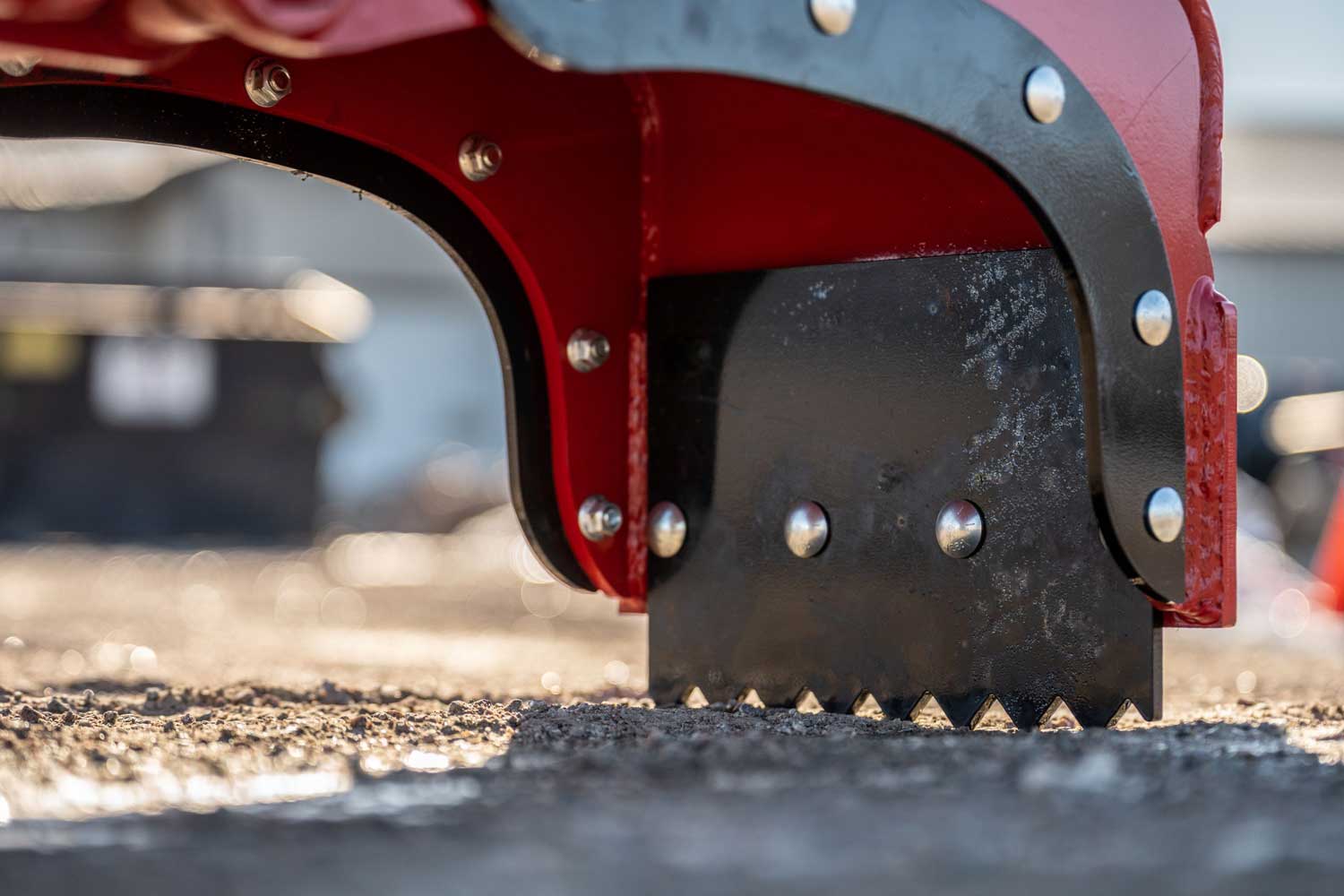

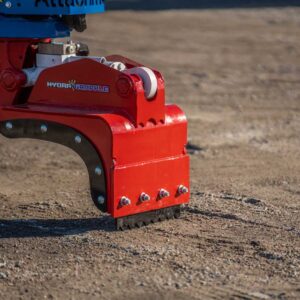

Interchangeable bolt-on edges allow the user to choose the best edge for the job. Smooth, serrated, rubber, or shanks/teeth are available.

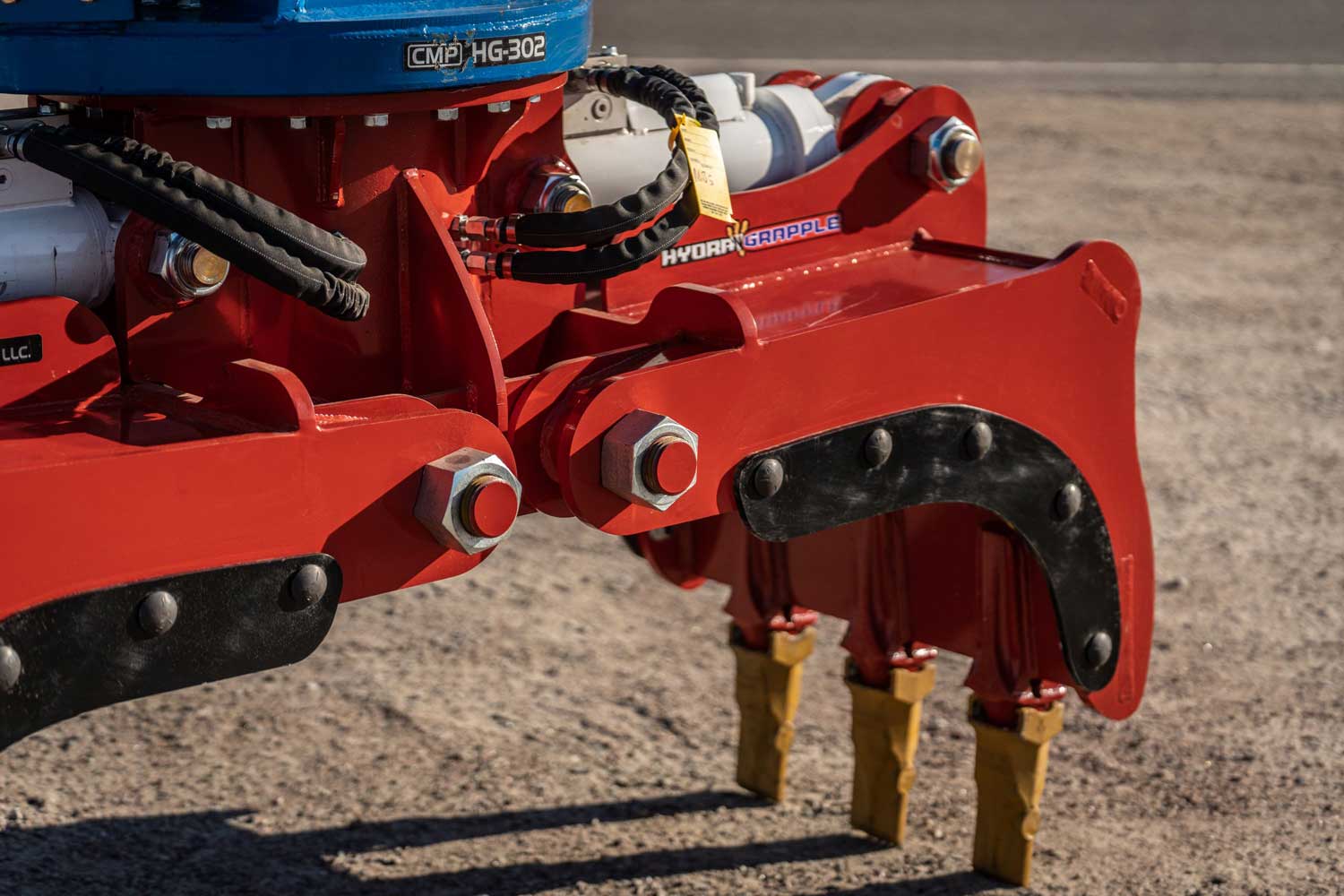

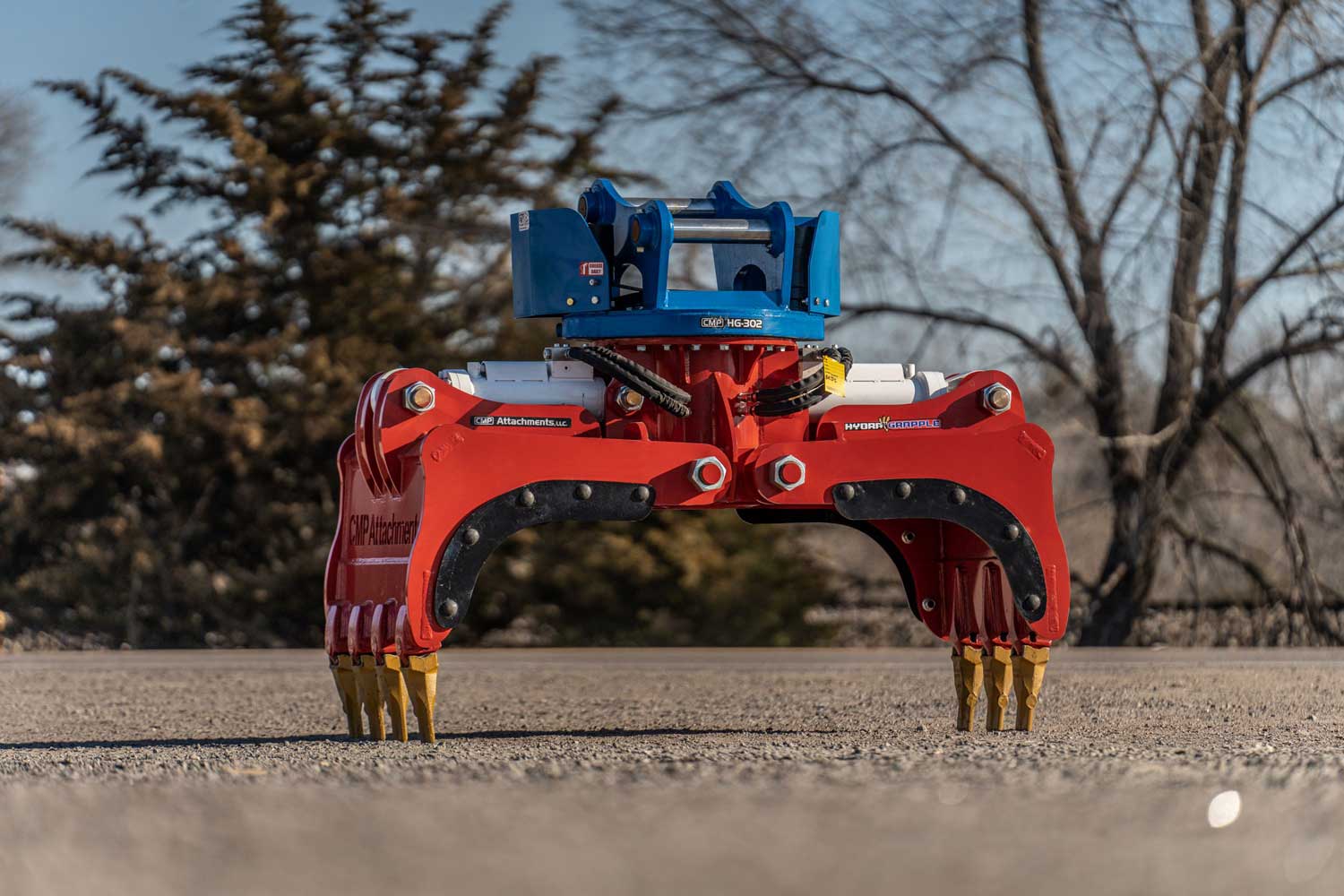

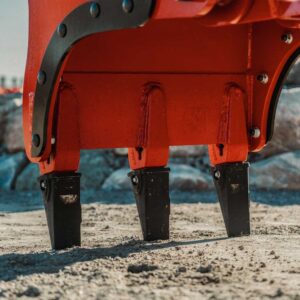

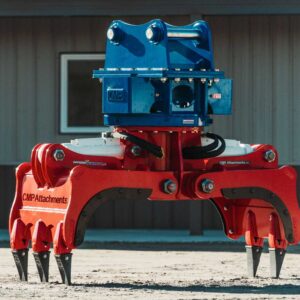

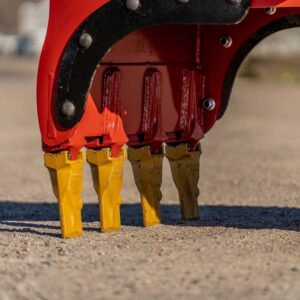

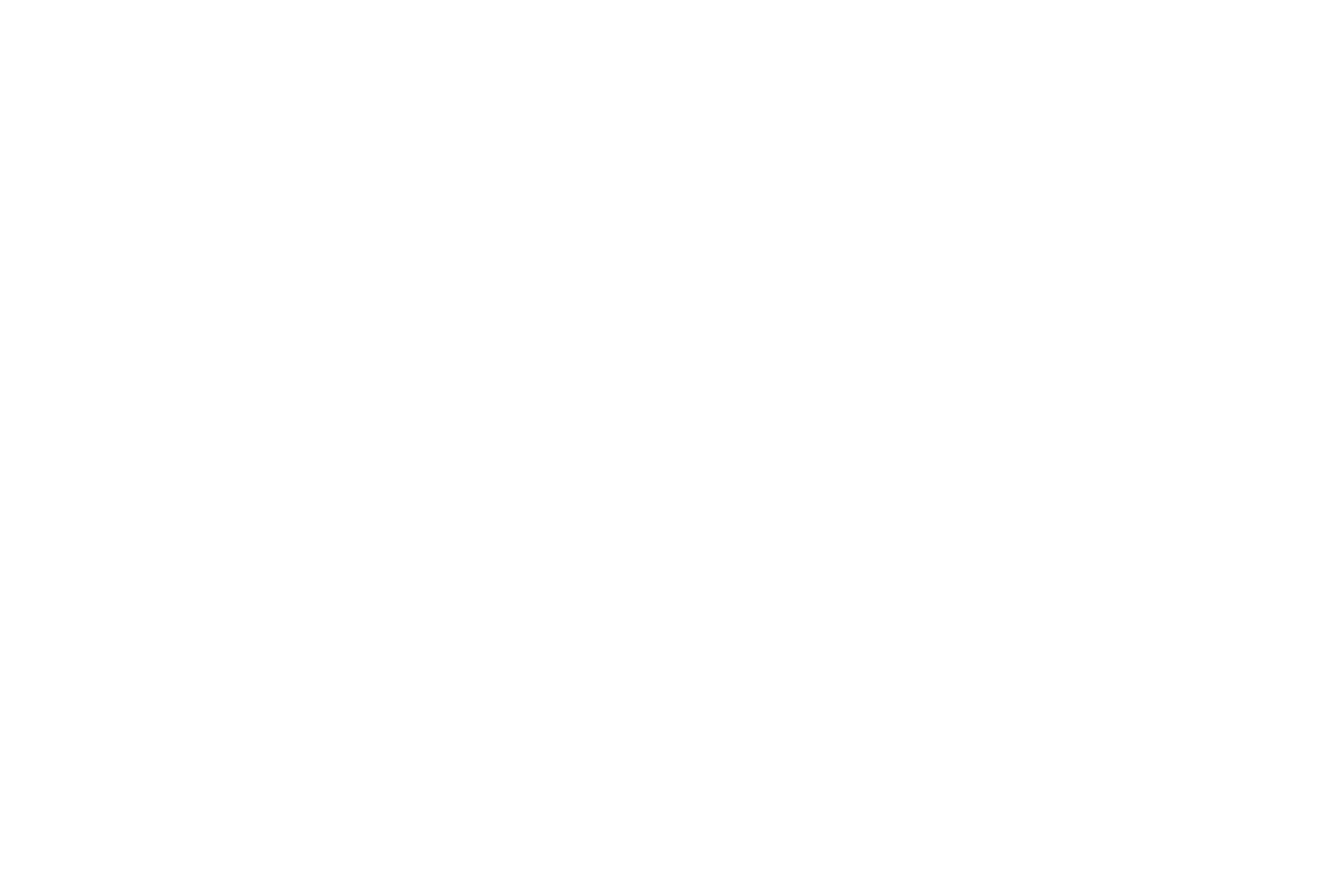

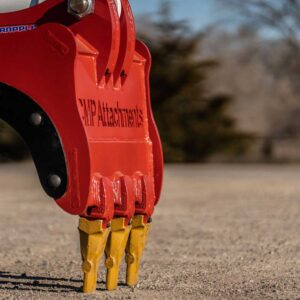

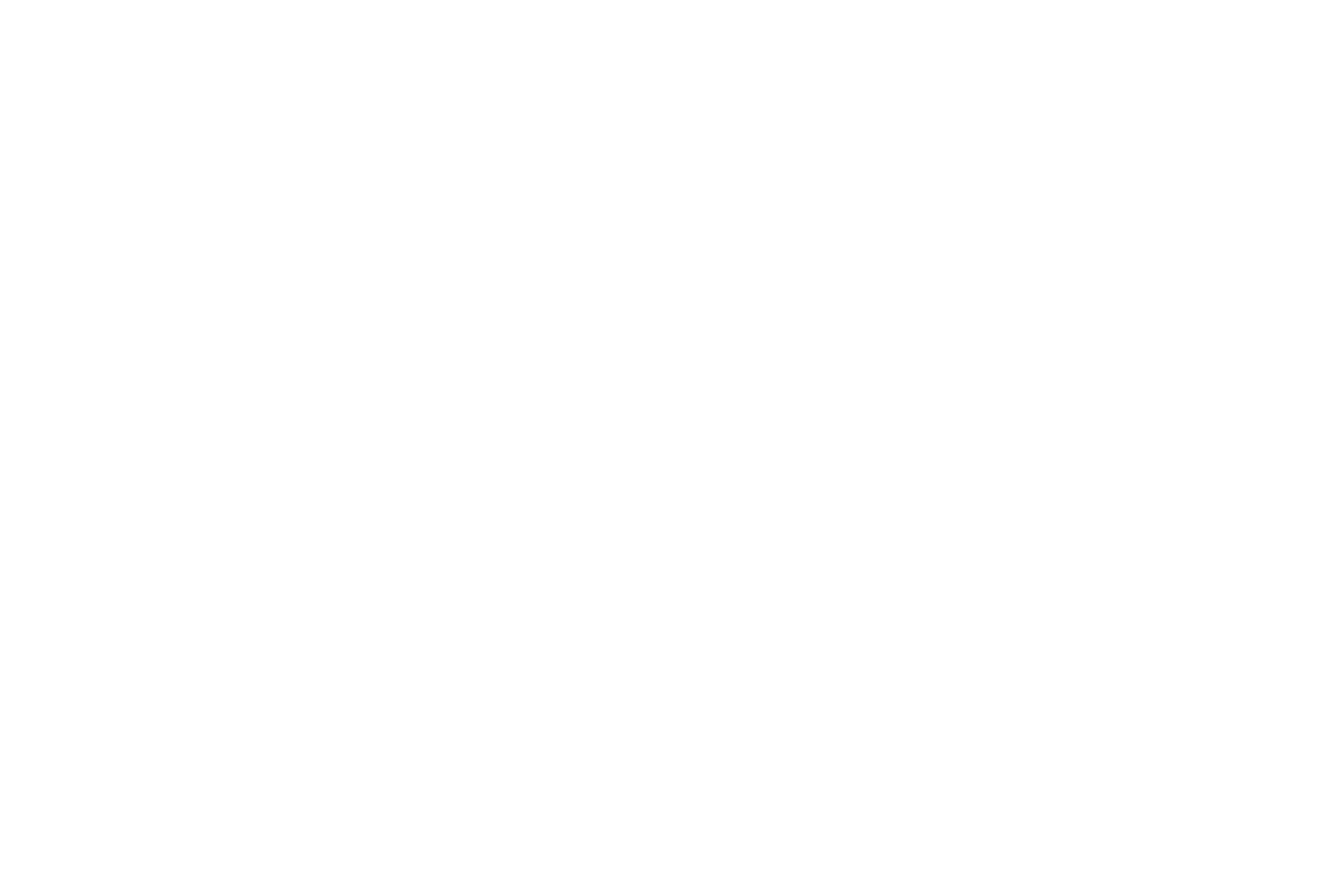

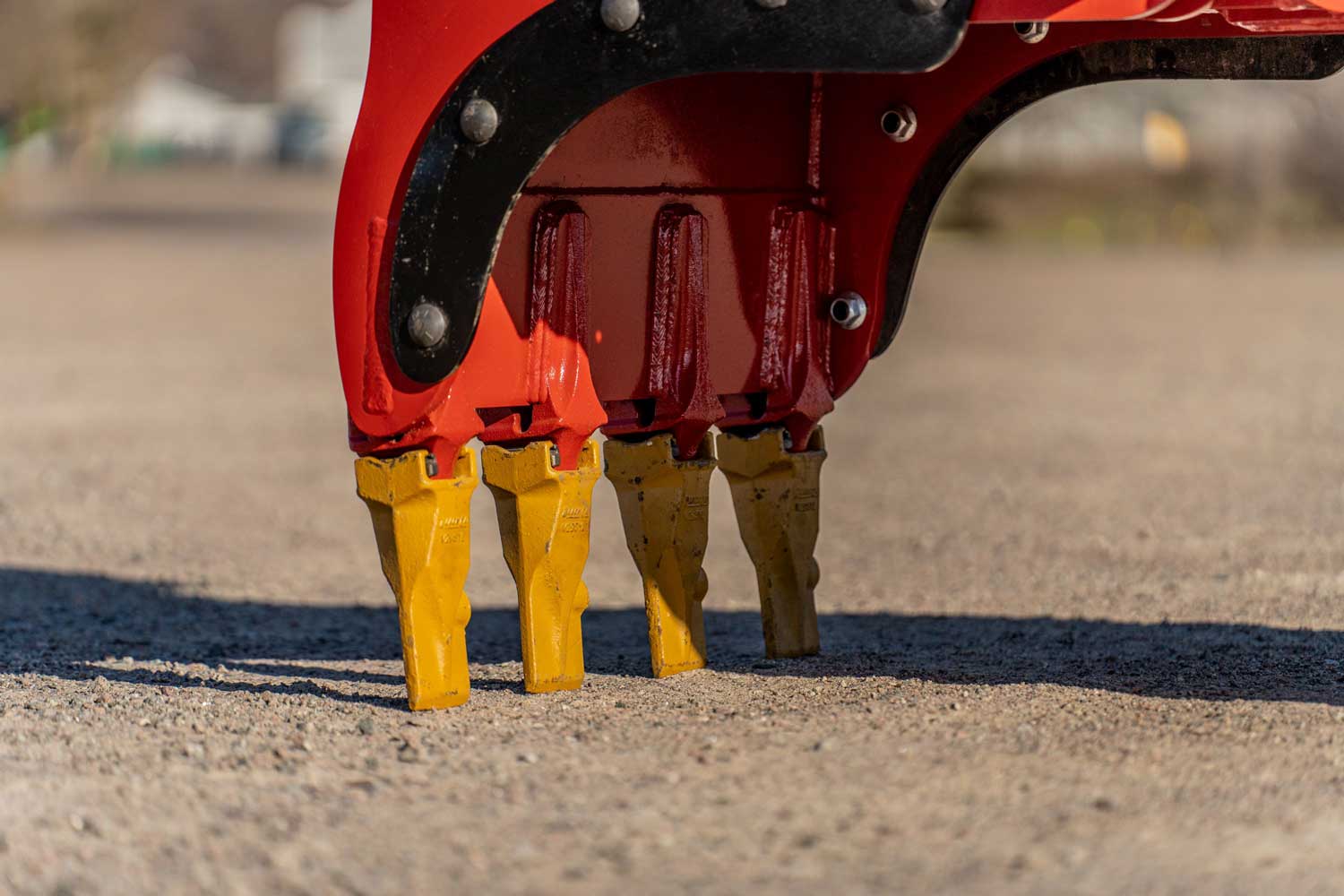

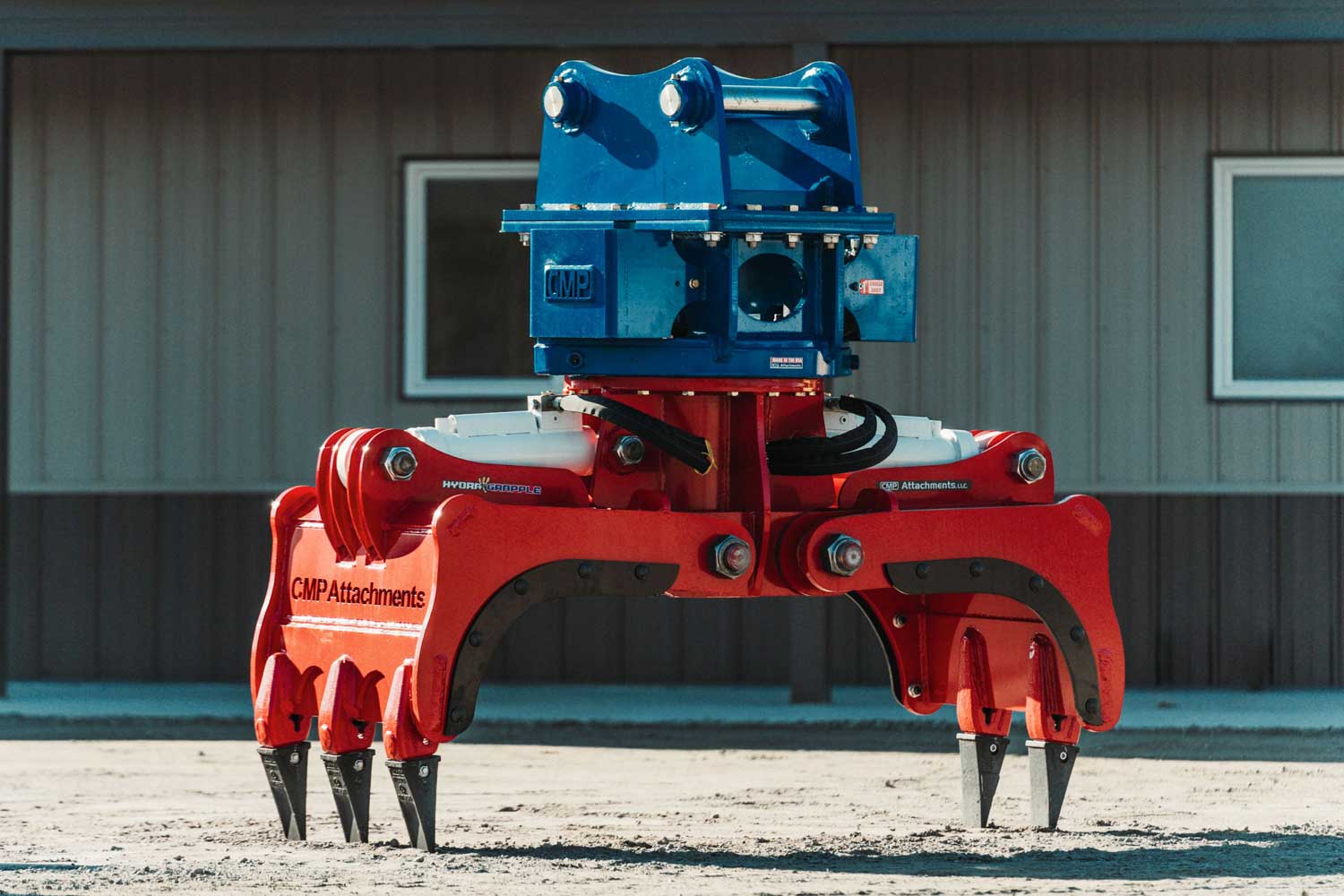

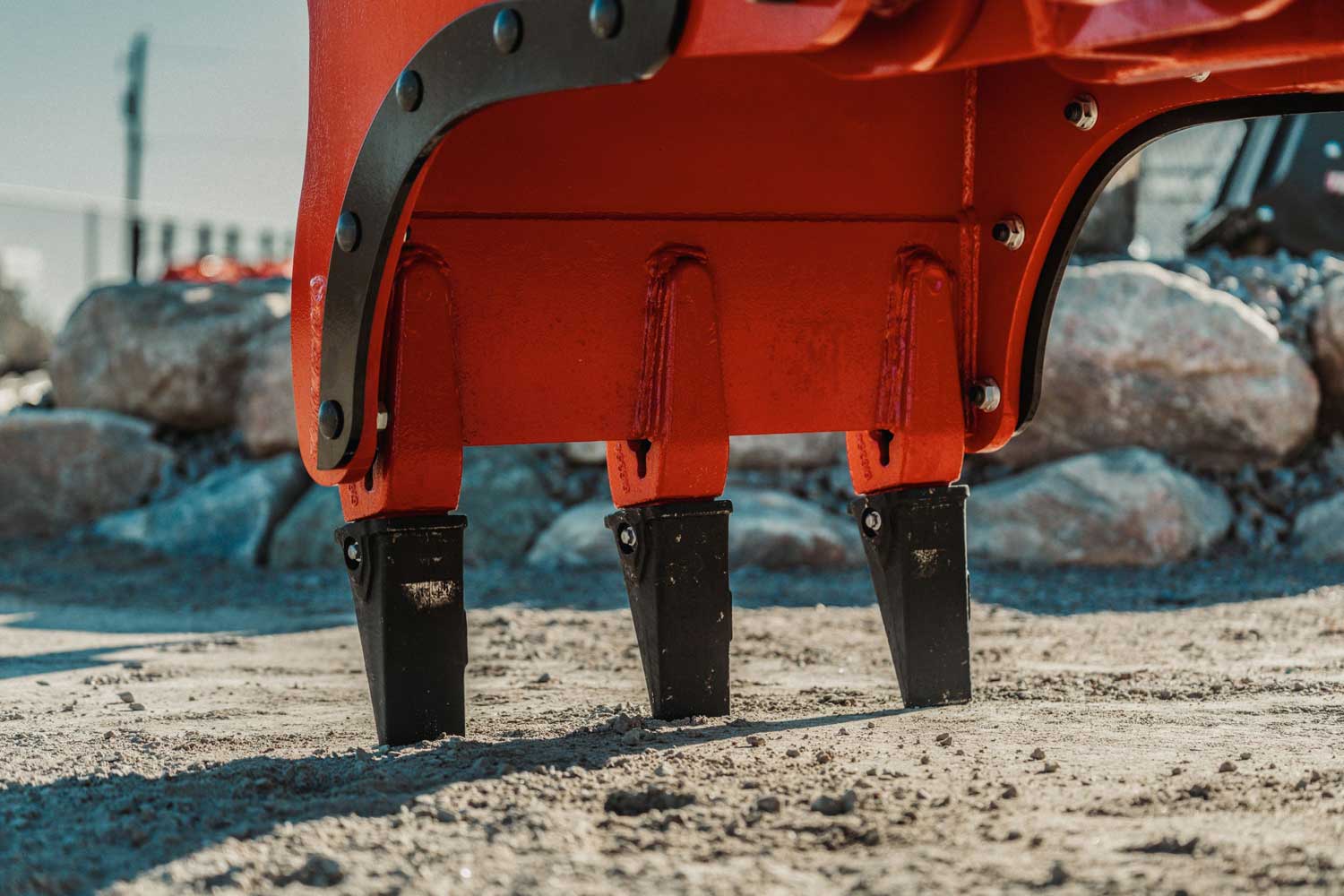

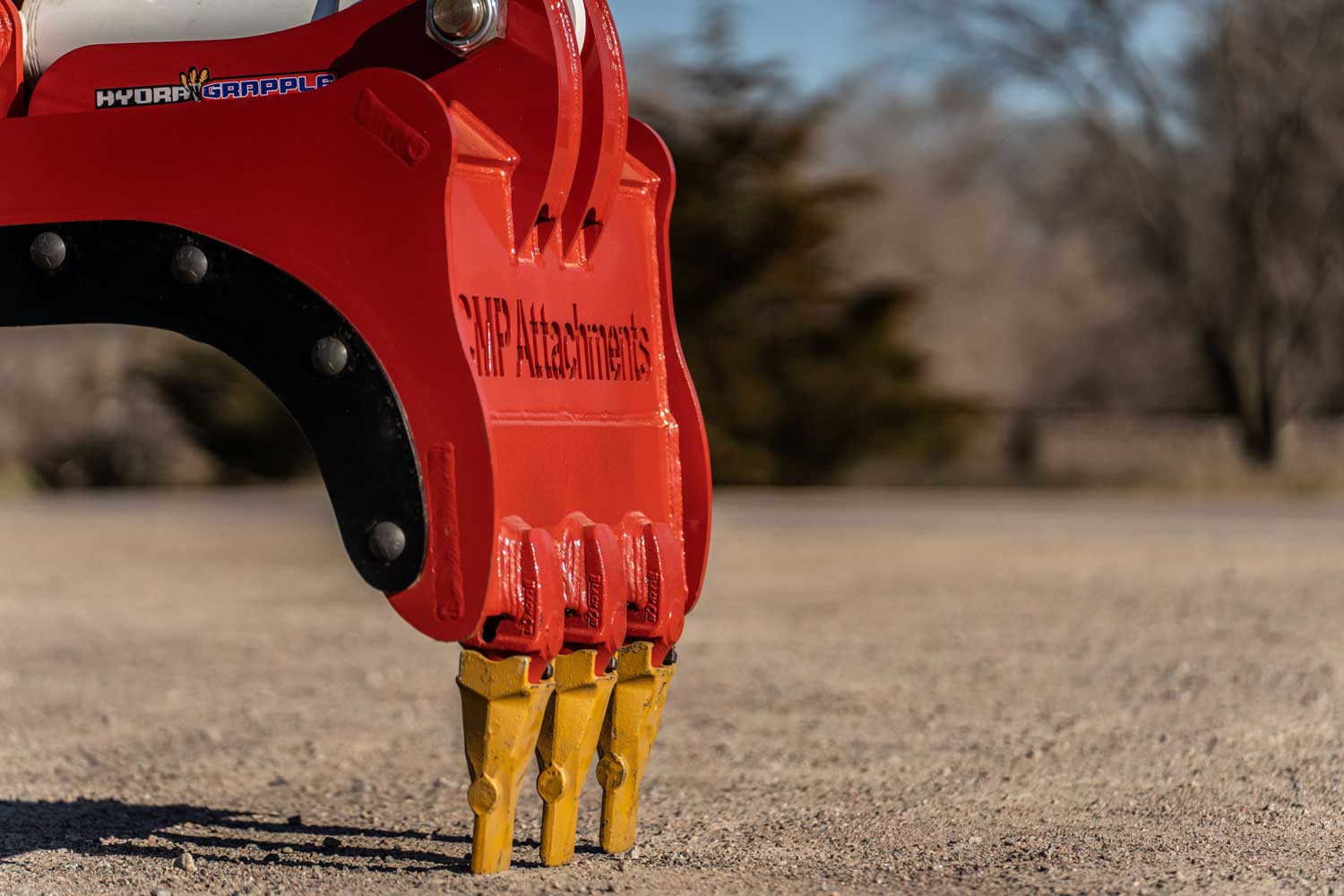

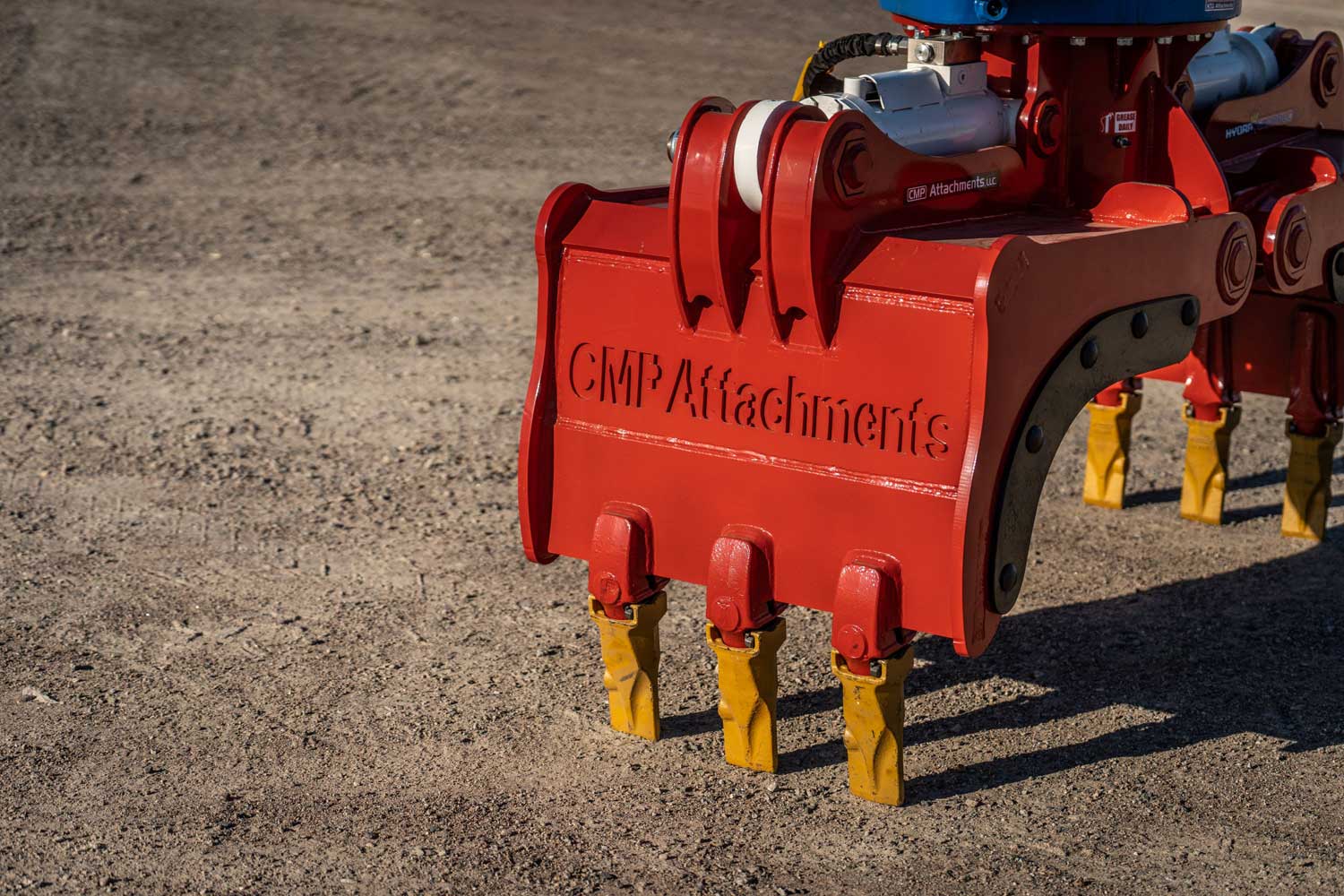

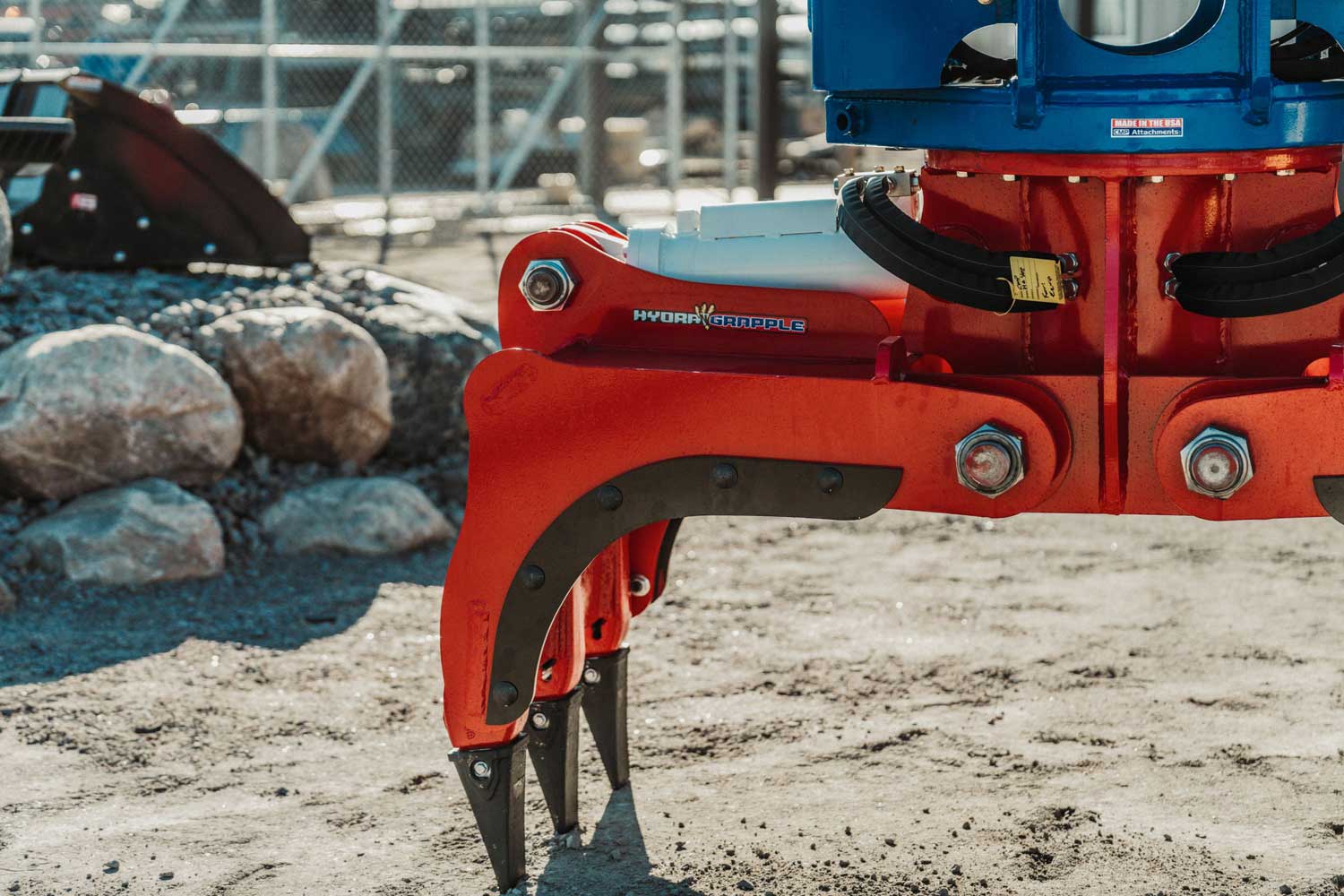

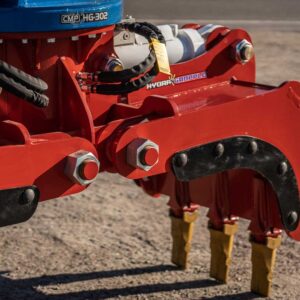

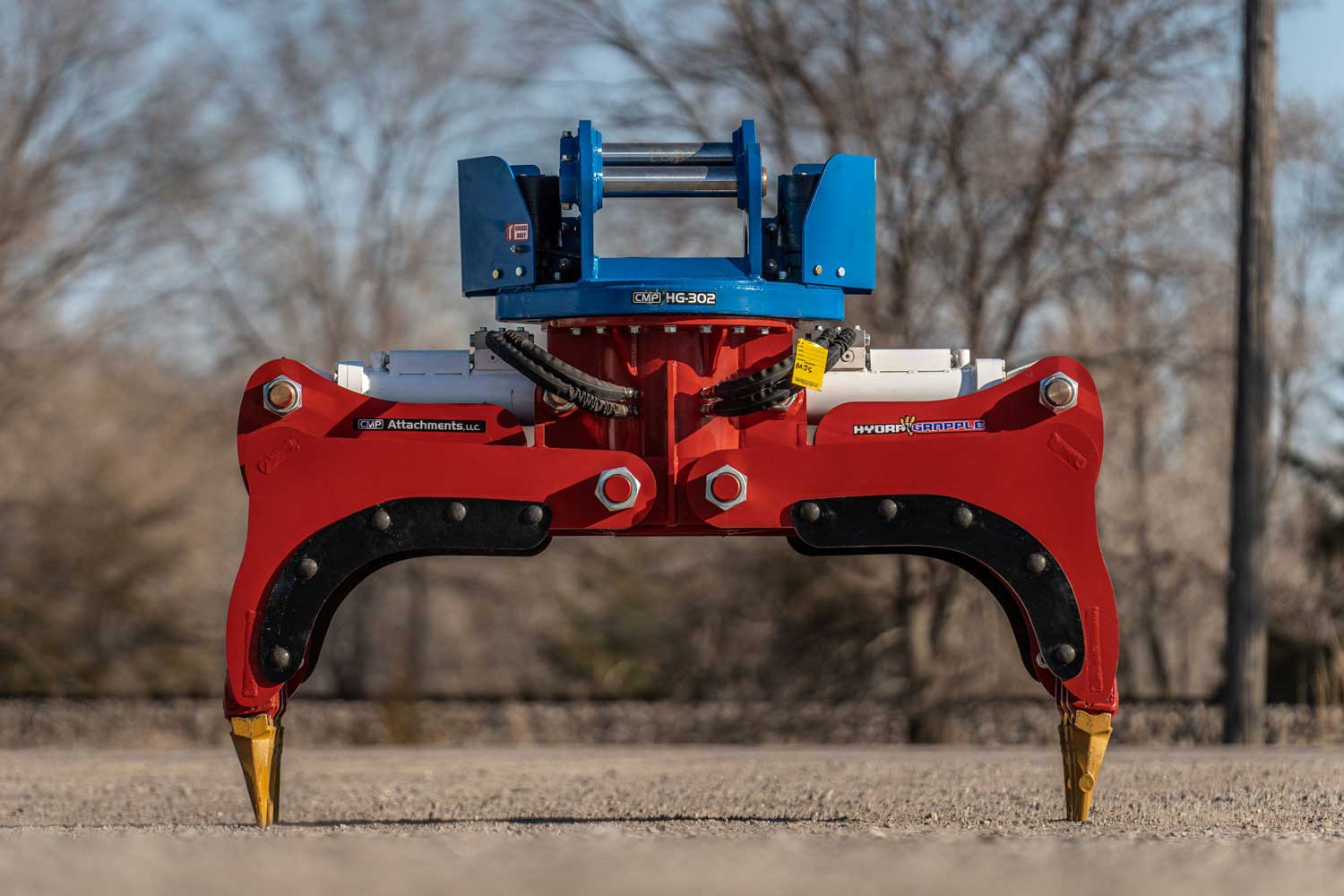

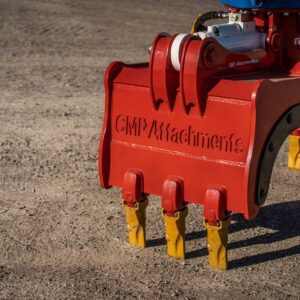

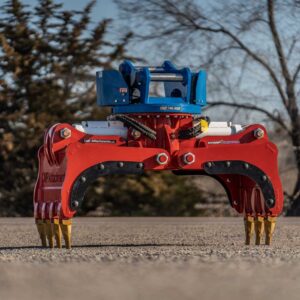

Our add-on tooth bar is ideal for excavating or grabbing boulders and other large objects.
Signature red & black tough powder coat finish ensures long lasting durability and prevents rust. Other color combinations available upon request.

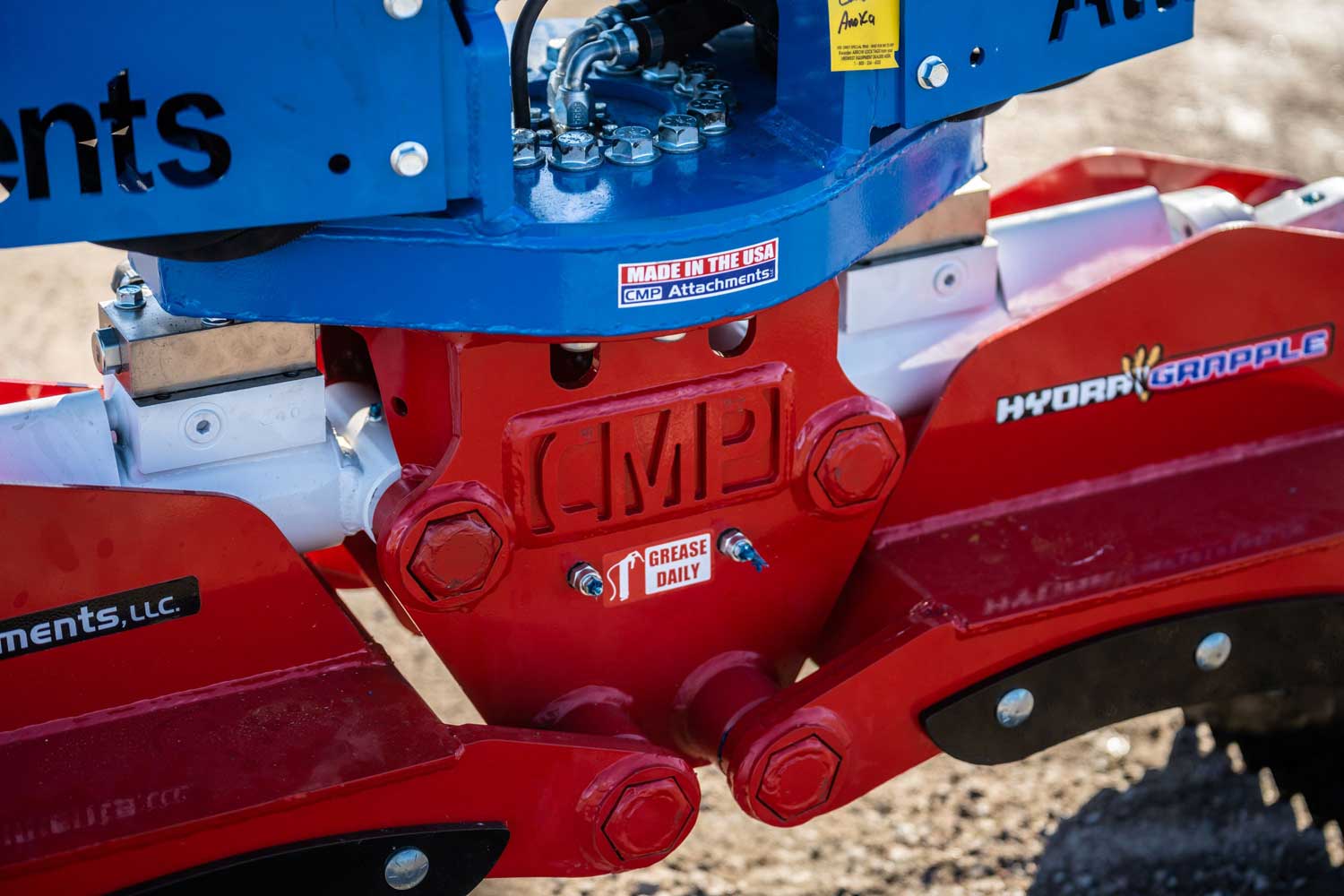

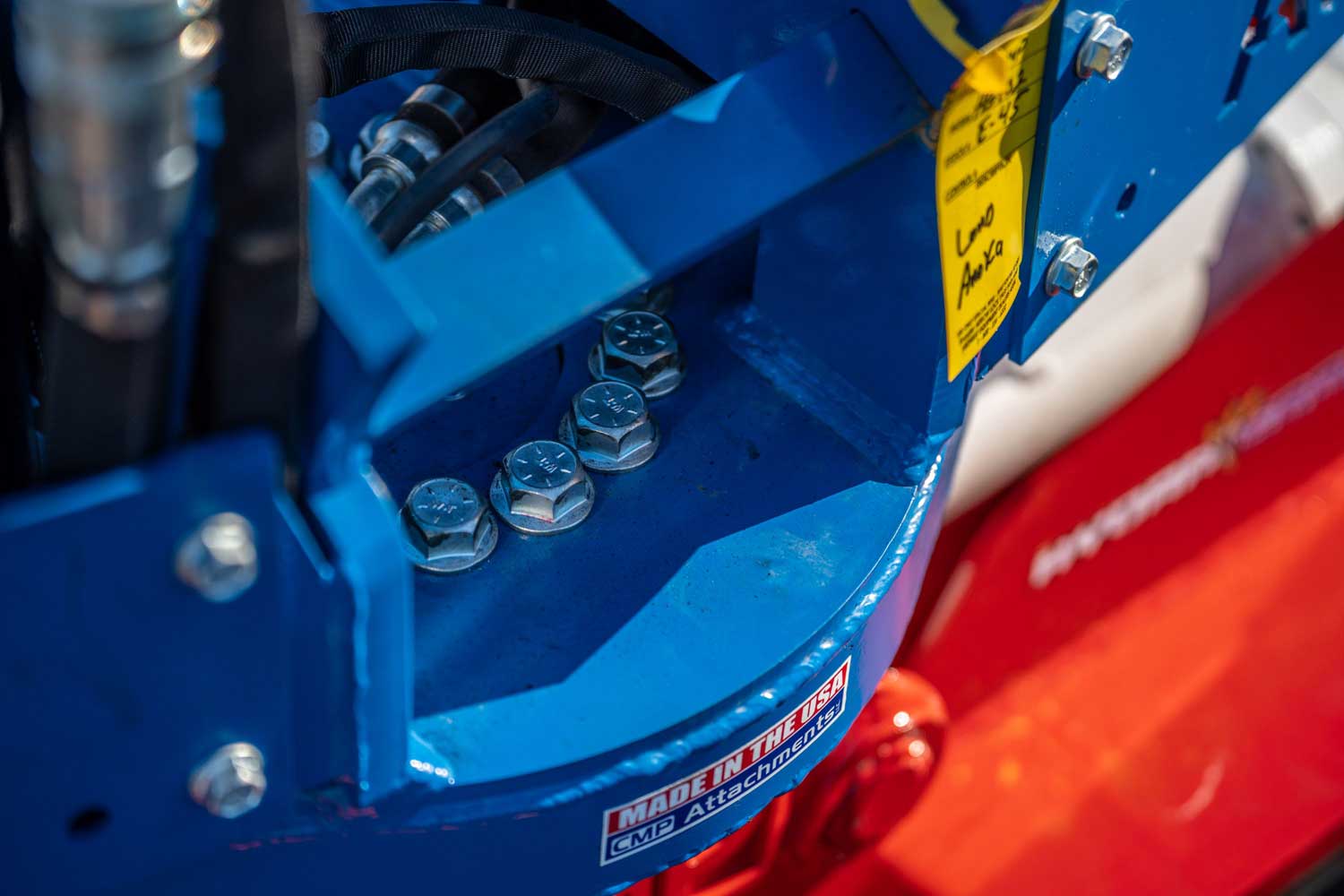

USA Made. Backed by our “Made Here. Made Better.” warranty.
