HYDRA GRAPPLE

WE HAVE A DEDICATED DEALER NETWORK AND SELL DIRECT, DON'T WAIT.

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
11	6	200	NA	360 deg.	32	Single	Yes	17	2.5-4.5k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
15	12	480	NA	360 deg.	36.5	Single	Yes	25	5.5-7.5k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
15	12	490	NA	360 deg.	40	Single	Yes	35	6.5-9.5k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
17	12	680	NA	360 deg.	48	Dual	Yes	40	8-10k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
17	12	750	Standard	360 deg.	50	Dual	Yes	40/50	8-12k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
17	12	850	Standard	360 deg.	53	Dual	Yes	50/60	10-16k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
23	12	995	Standard	360 deg.	53	Dual	Yes	60	11-16k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
26.5	17	1200	Standard	360 deg.	59	Dual	Yes	70/80	14.5-18k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
26	17	1550	Standard	360 deg.	60	Dual	Yes	80/90	17-22k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
26	21	2200	Standard	360 deg.	62	Dual	Yes	130/140	25-35k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
31	21	2550	Standard	360 deg.	66	Dual	Yes	150/160	26-35k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
31	24	3400	Standard	360 deg.	71	Dual	Yes	200	32-43.5k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
34	24	4050	Standard	360 deg.	78	Dual	Yes	200	45-65k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
35	27	4450	NA	360 deg.	80	Dual	NA	250	55-75k

Width (in)	Bearing Size (in)	Weight (lbs)	Lock Valves	Grapple Rotation	Grapple Openings (in)	Rotation Motors	Non-Rotate Available	Class	Machine Size (lbs)
37	27	5000	NA	360 deg.	84	Dual	Yes	250	55-85k

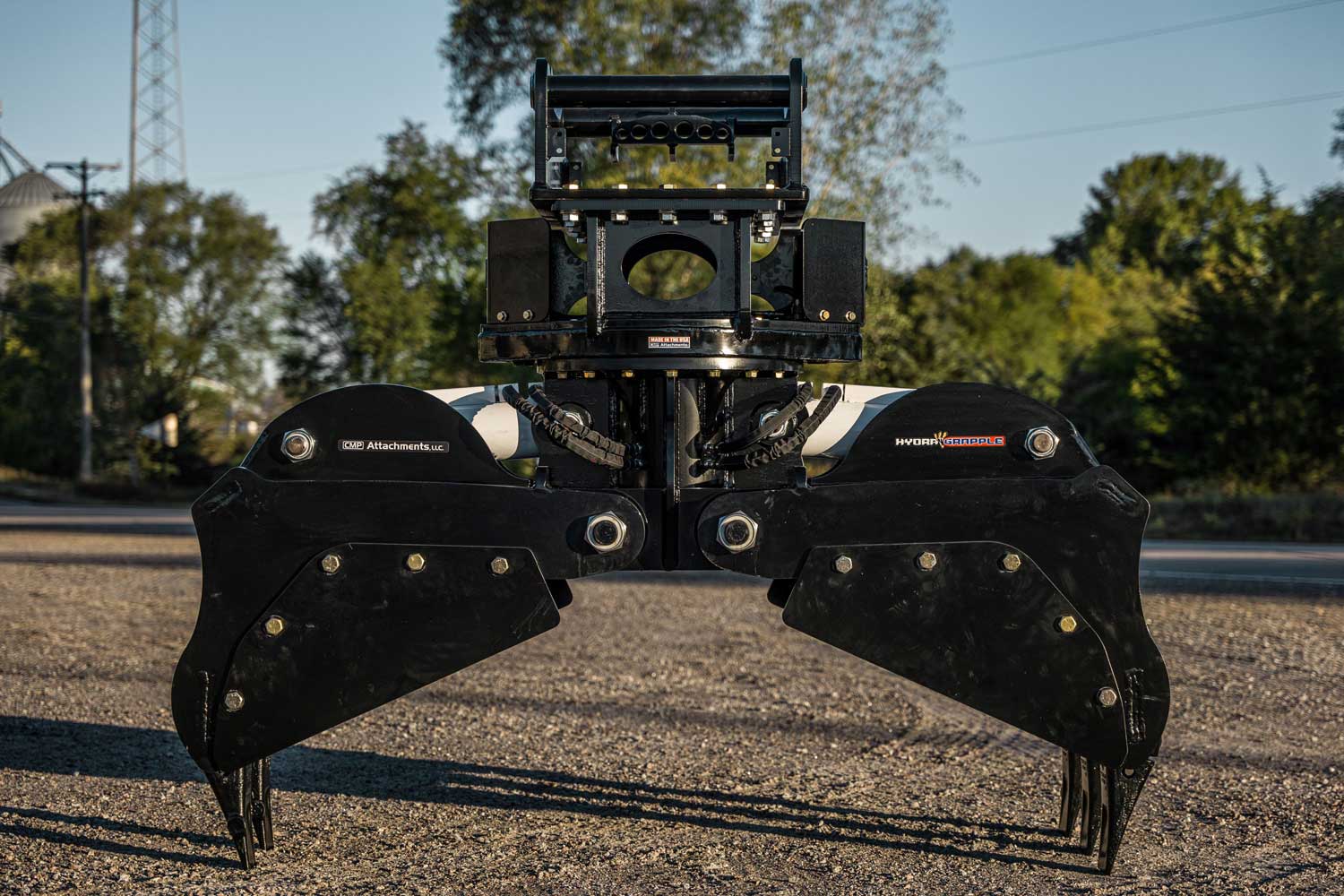

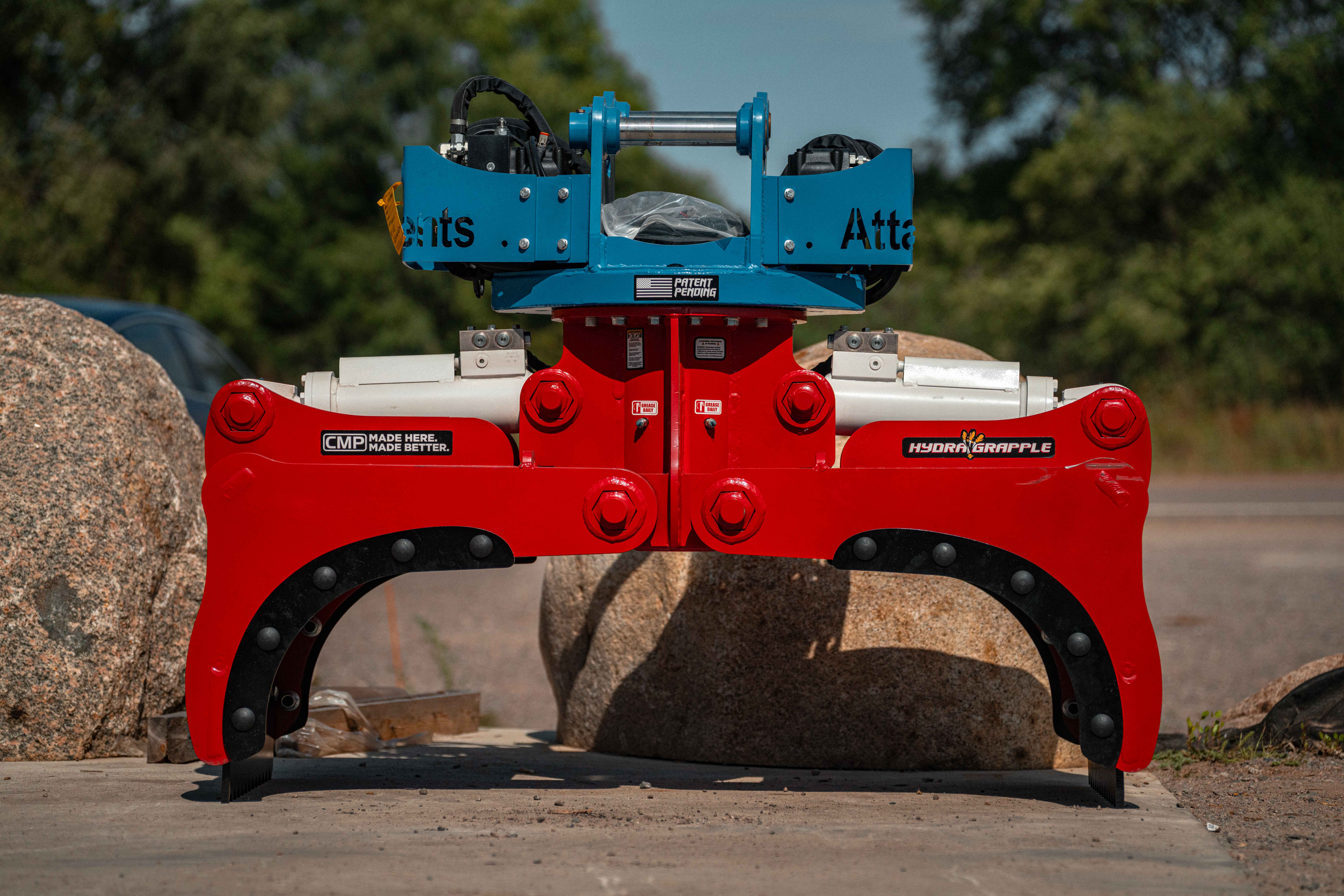

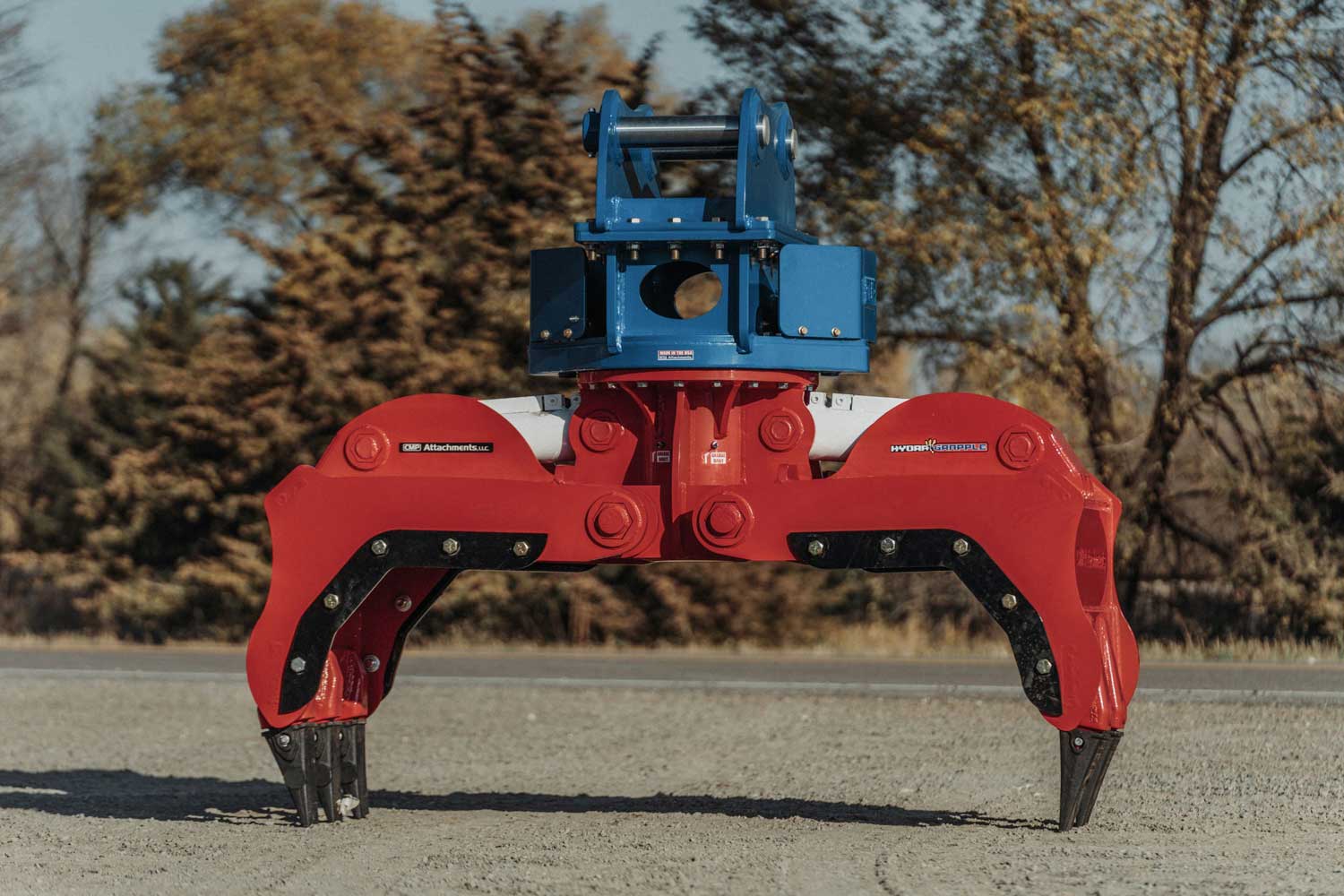

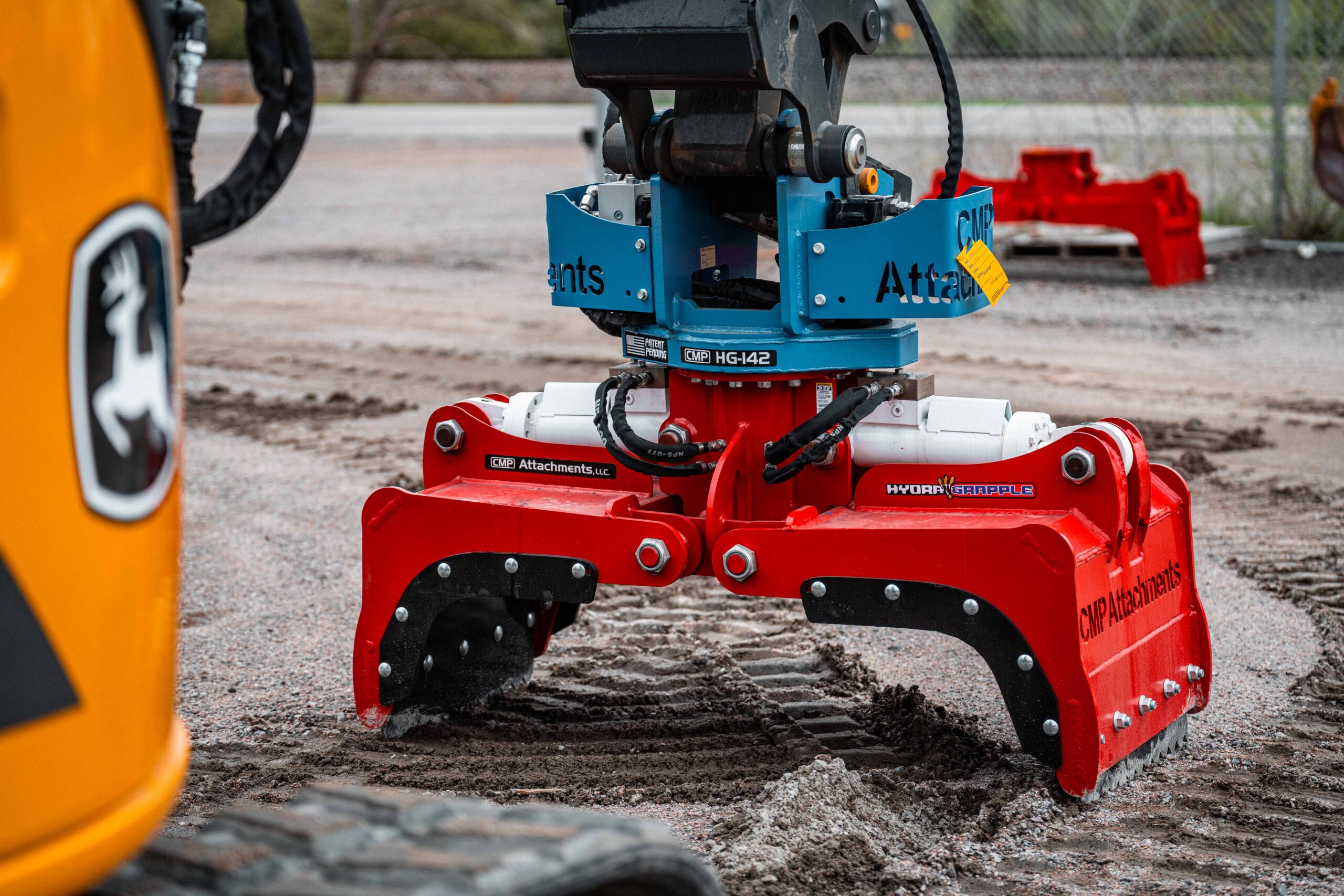

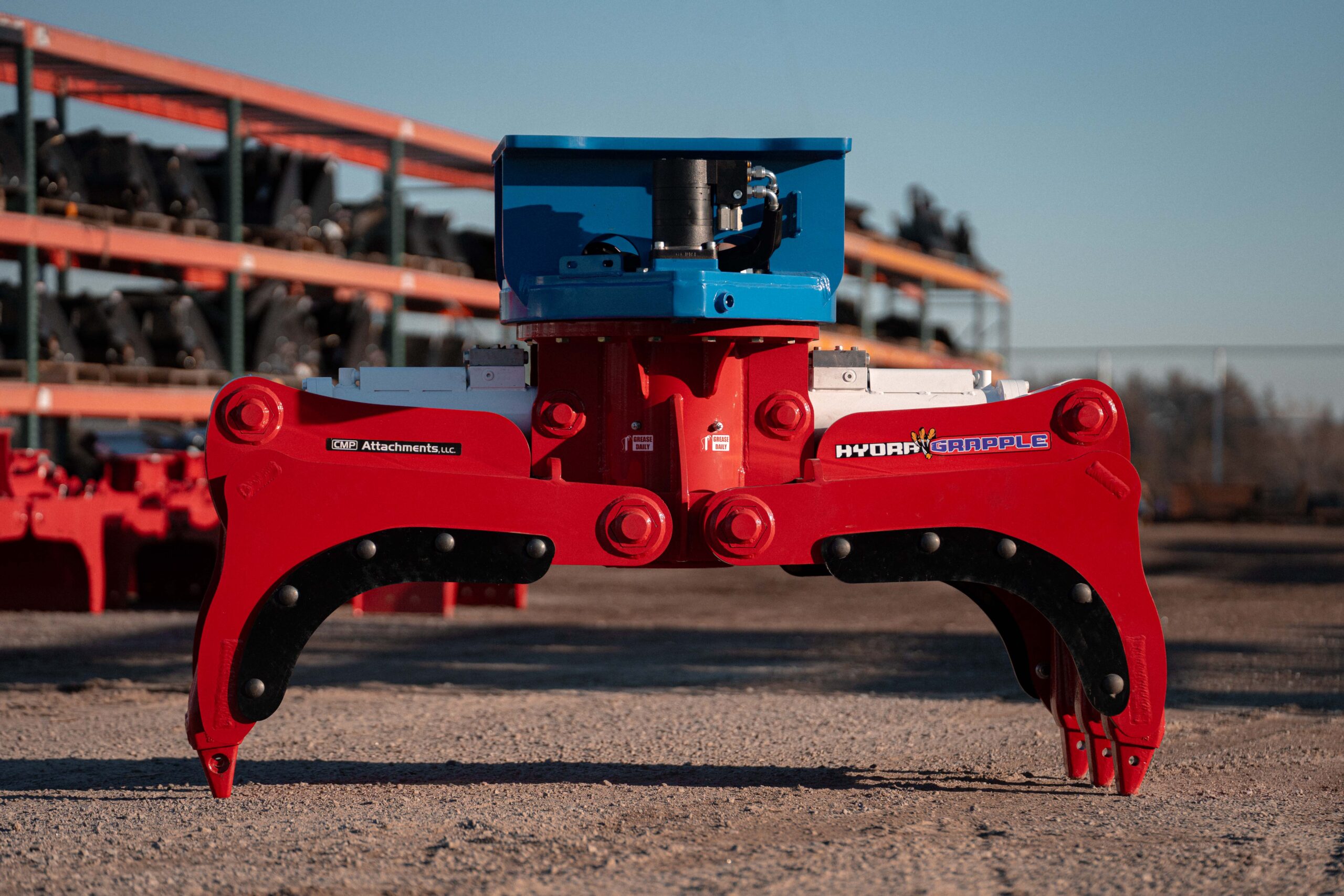

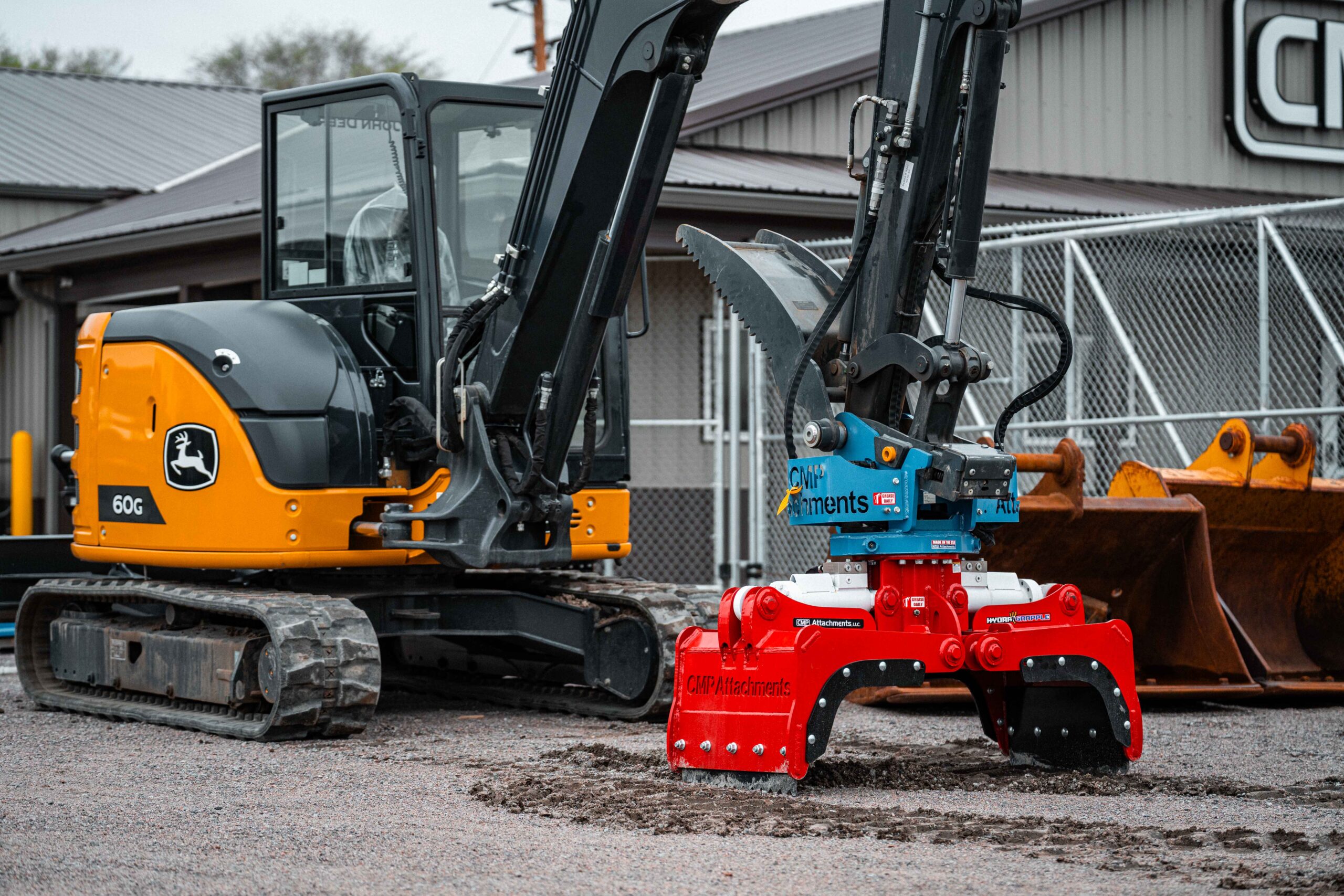

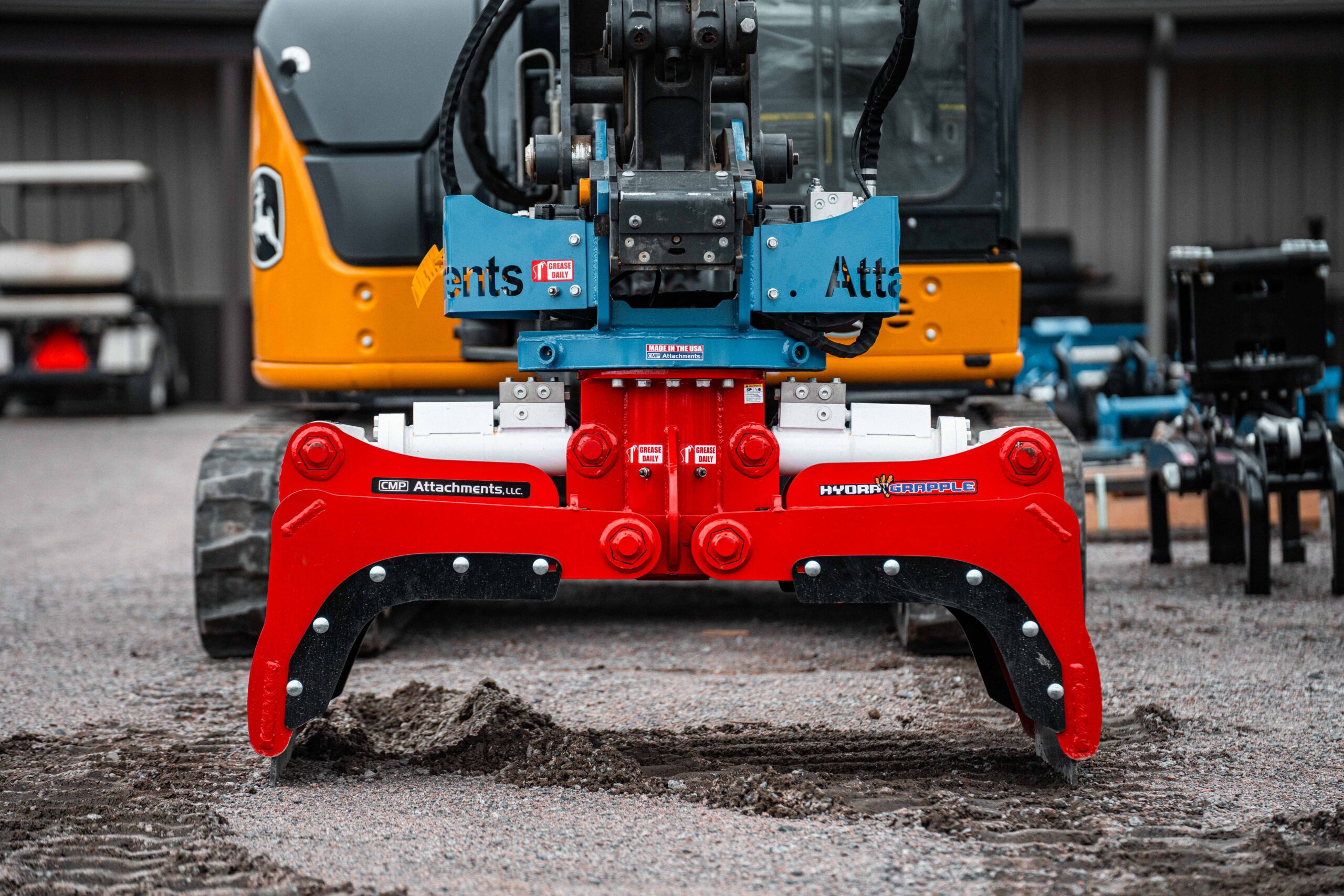

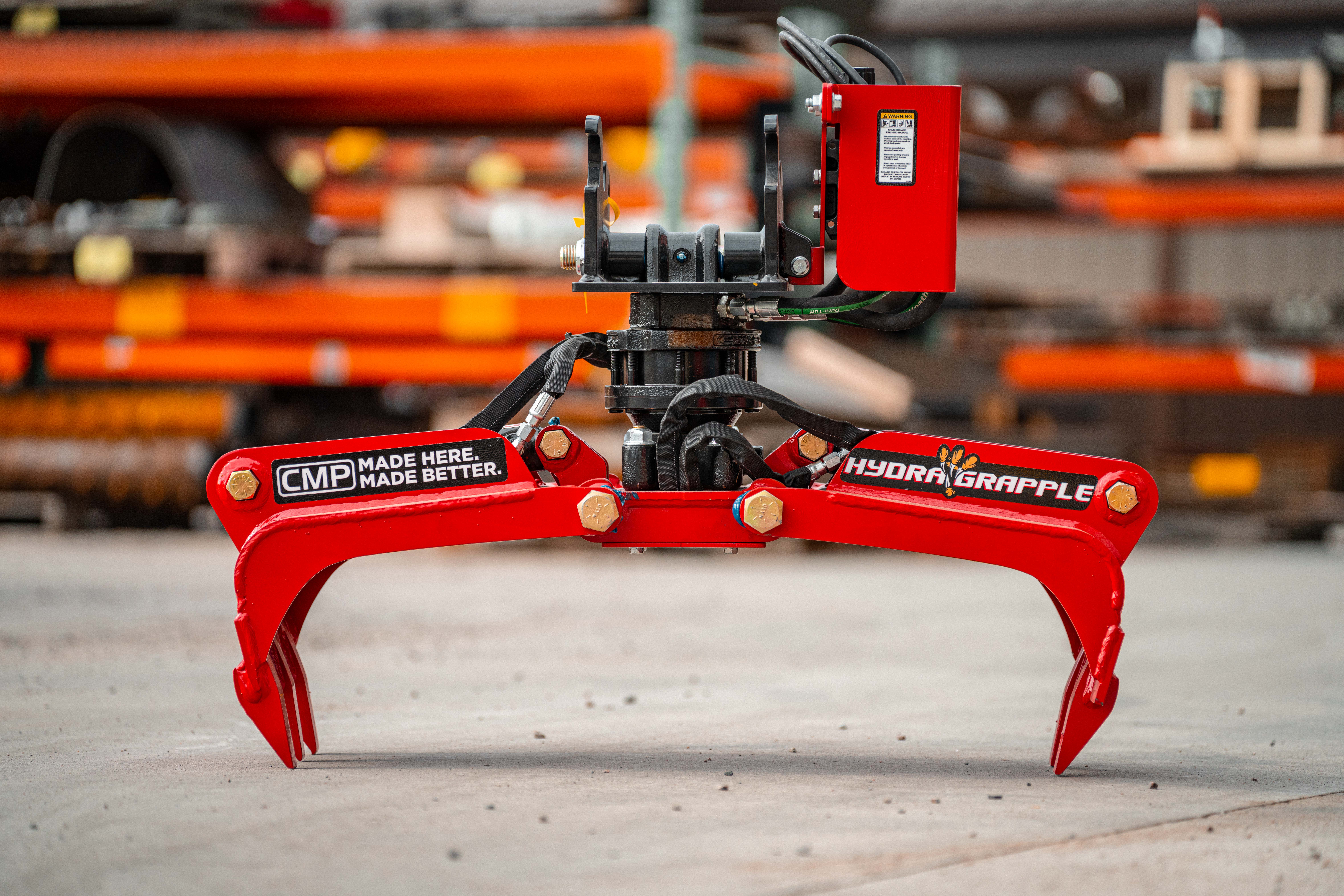

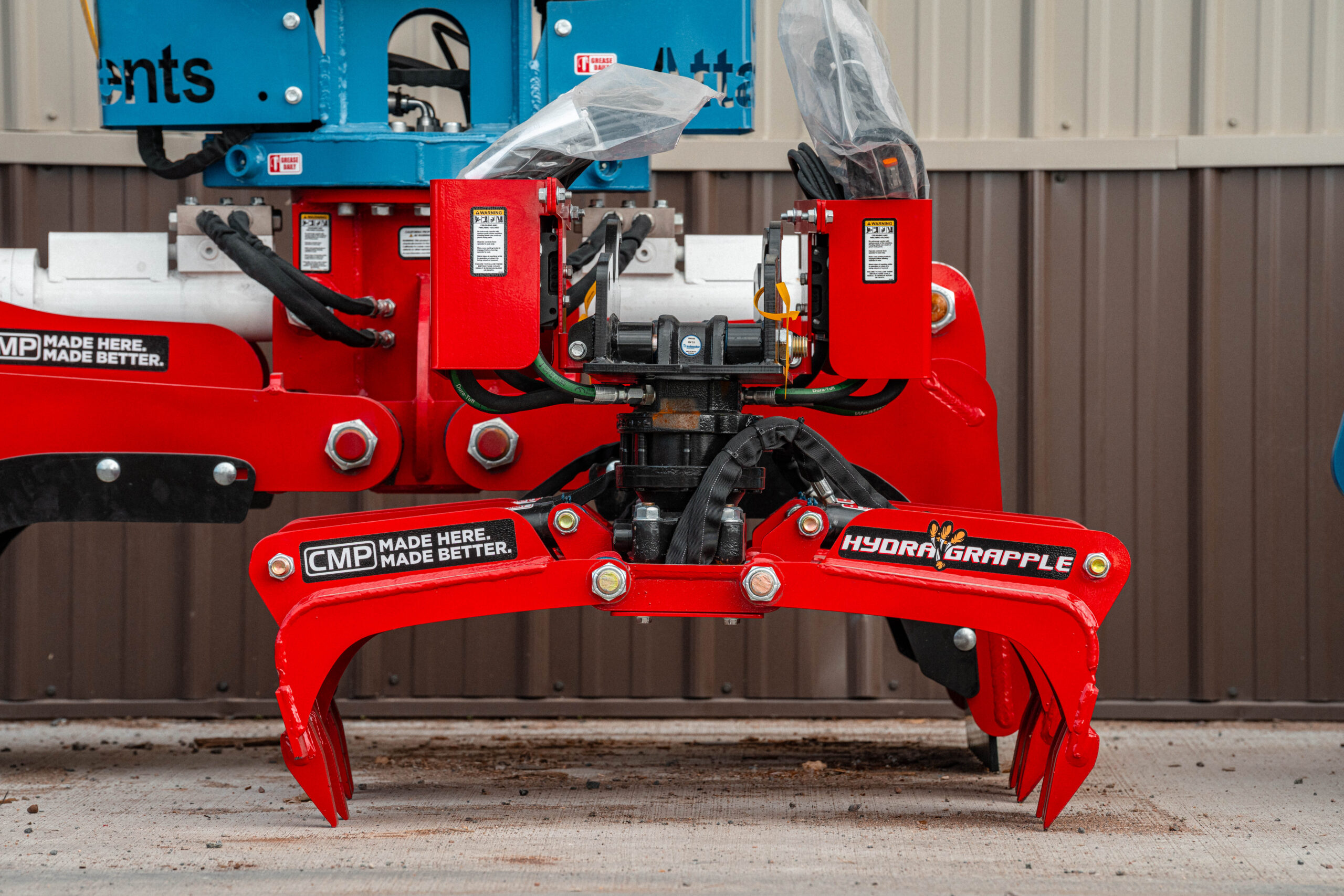

The “Do-it-all” Grapple. Boulder walls, Forestry, Demolition, and Digging. This is a different beast from the typical sorting grapple. It’ll pick up and rotate as much your excavator can handle, in 360 glorious degrees. 2x the rotational torque of the competition means you have the baddest grapple for feeding a chipper, setting block & boulders, or tearing apart a double wide for the fastest demolition you’ve ever witnessed.

Dual motors on HG82+. Single on HG61, 51, 41.
Built in cross reliefs that cushion when stopping rotation under load.

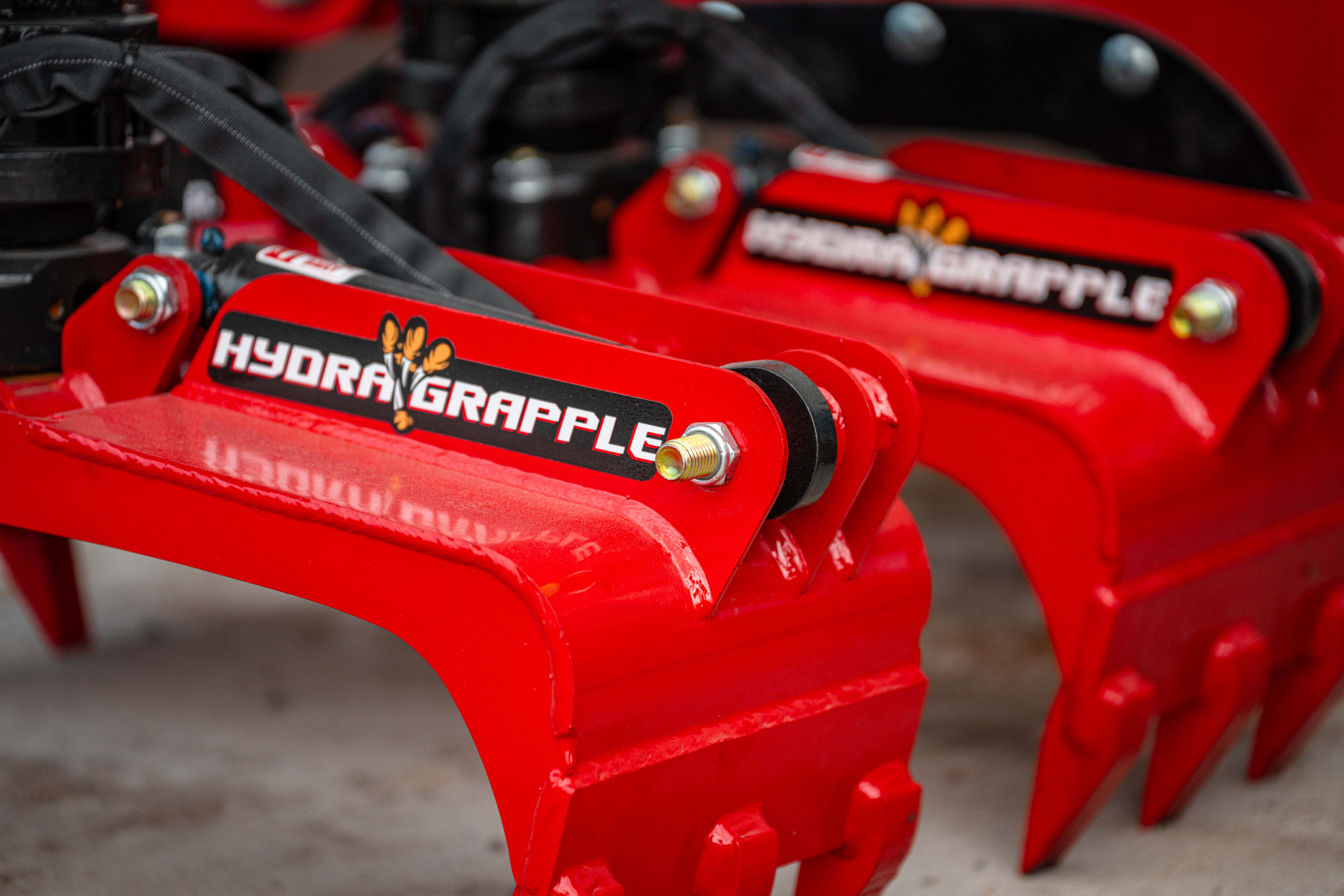

AR steel wear edges.
High tensile body to negate flexing or cracking under load.

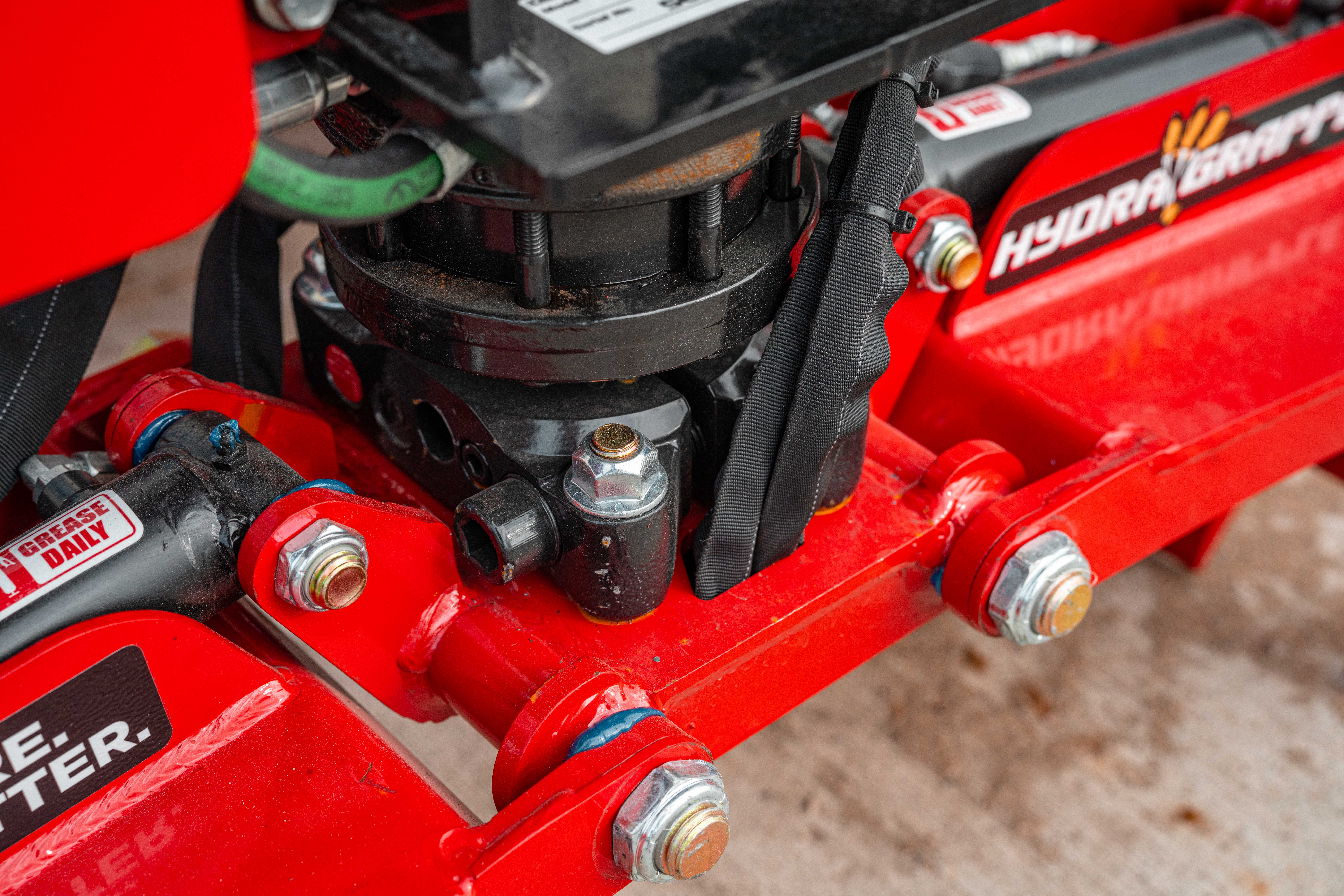

Oversized slewing bearings produce unmatched rotational torque.

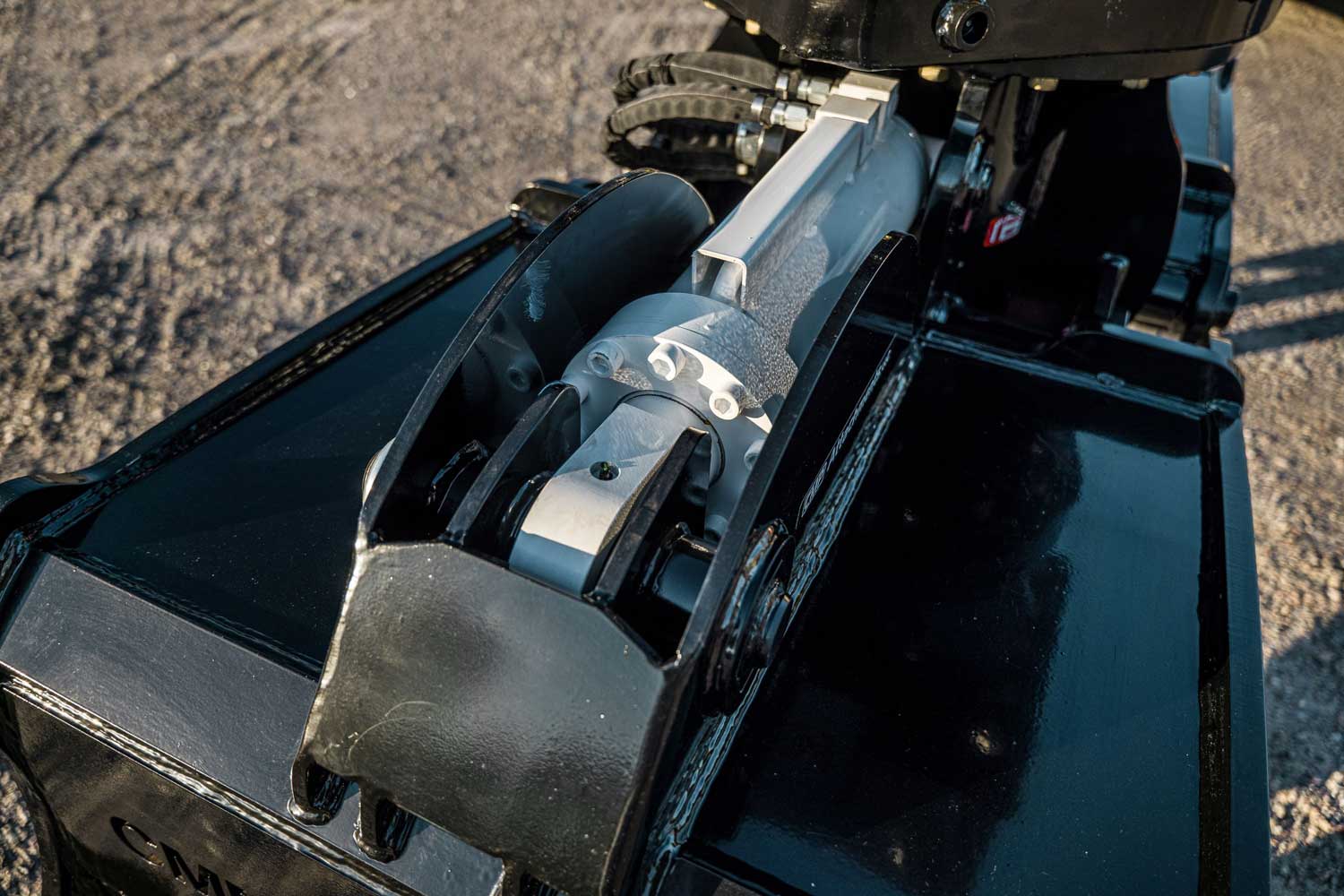

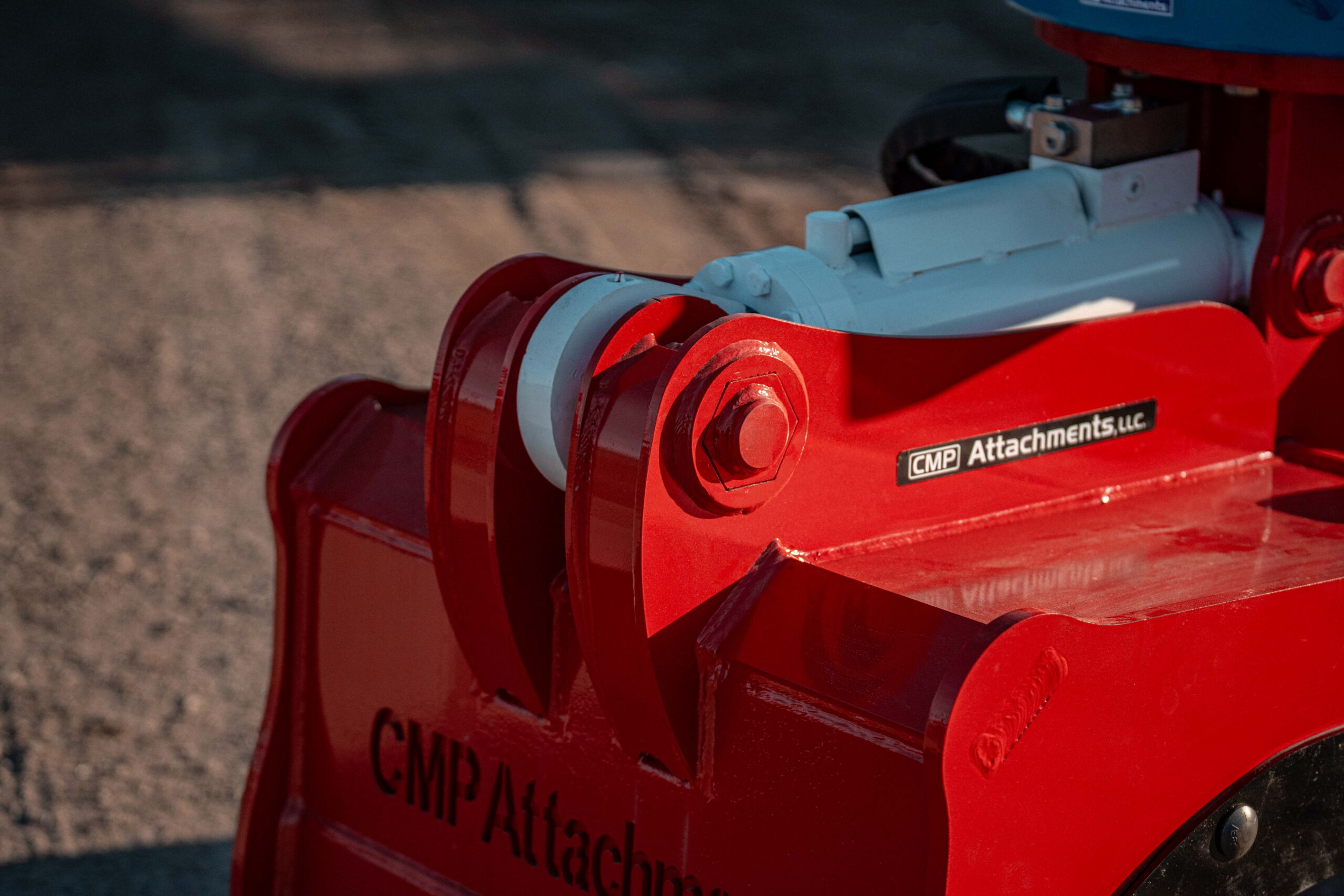

Exclusive hydraulic cylinder lock valves keep full clamp pressure without needing to continuously hold the button. *On HG102-HG402.

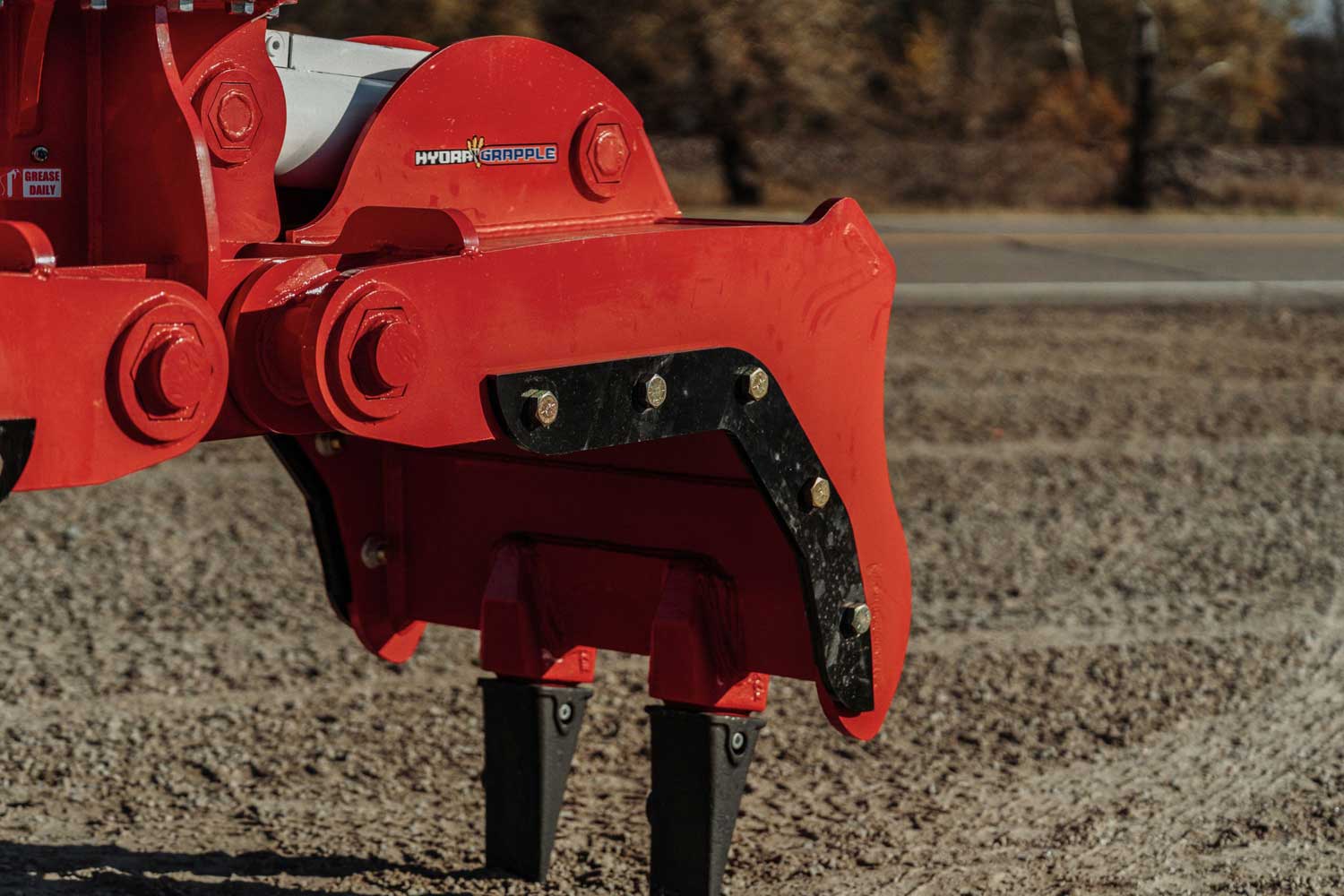

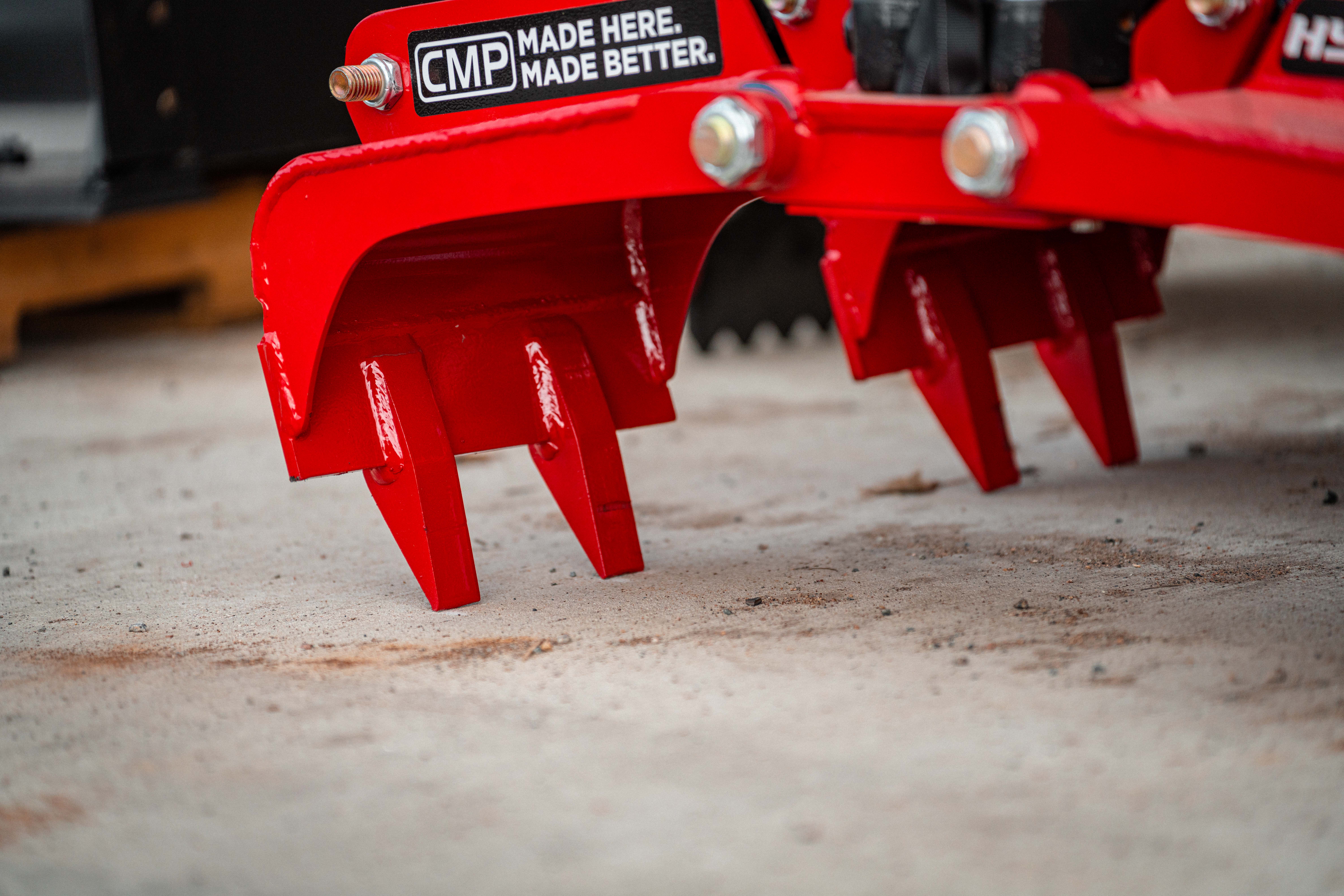

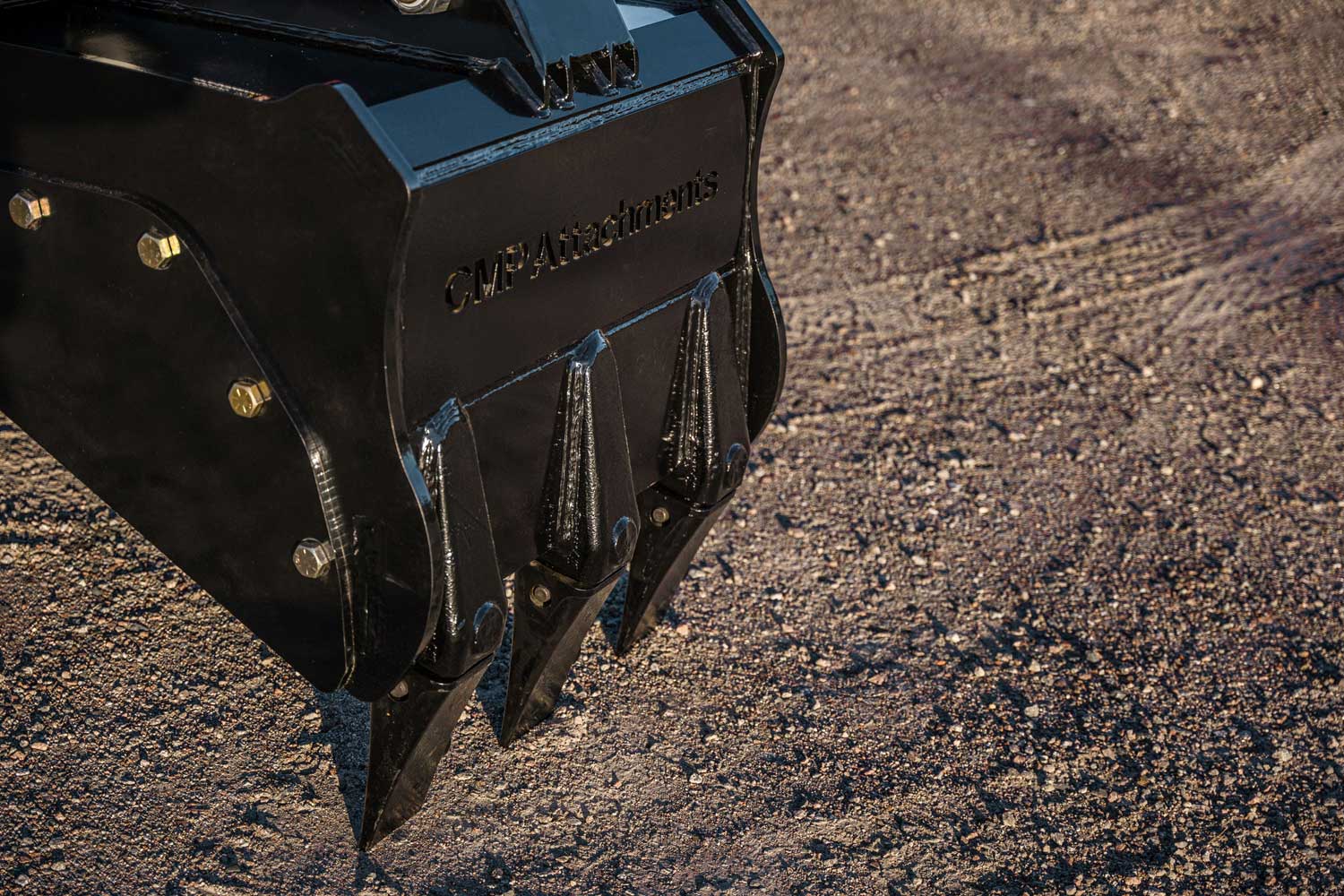

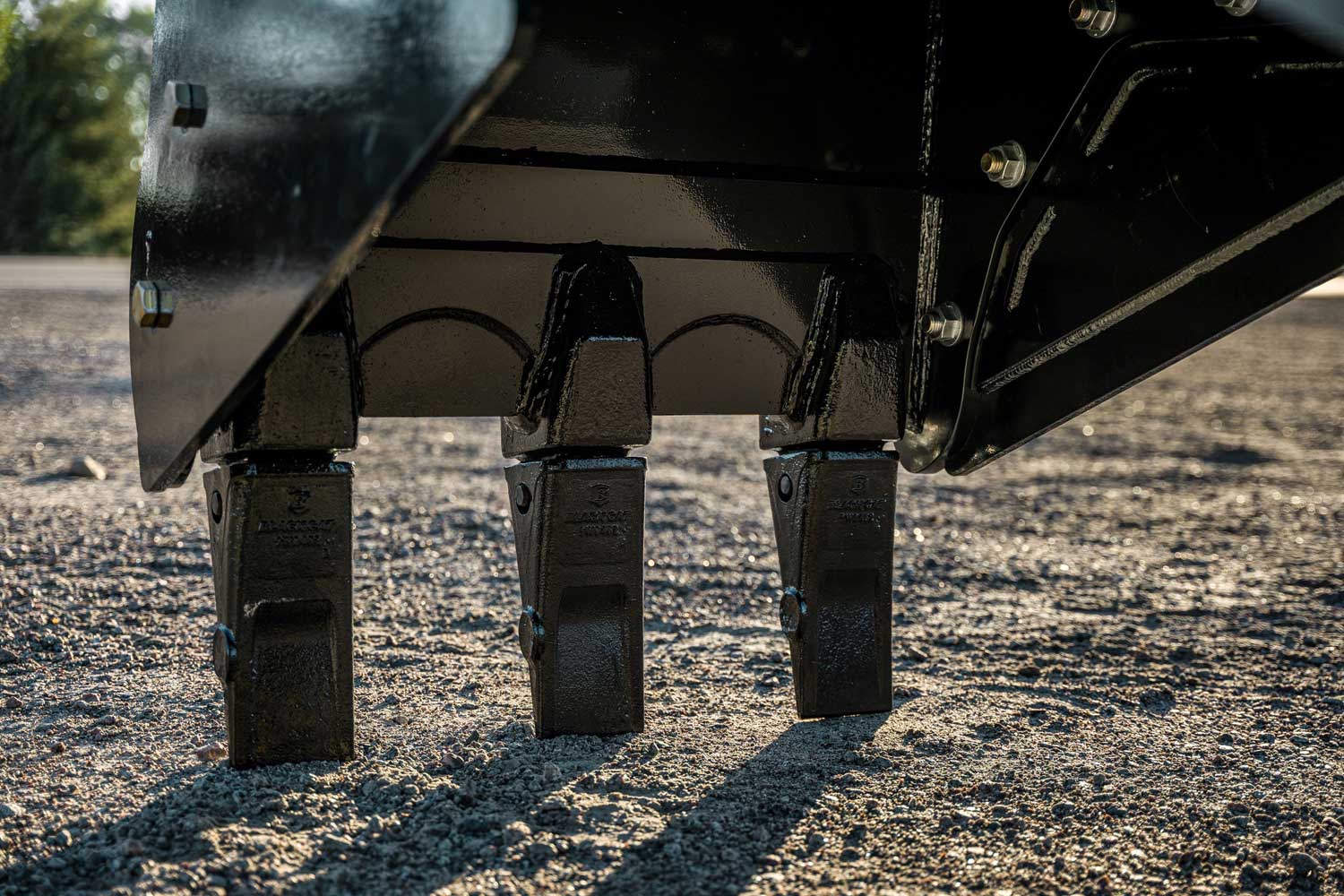

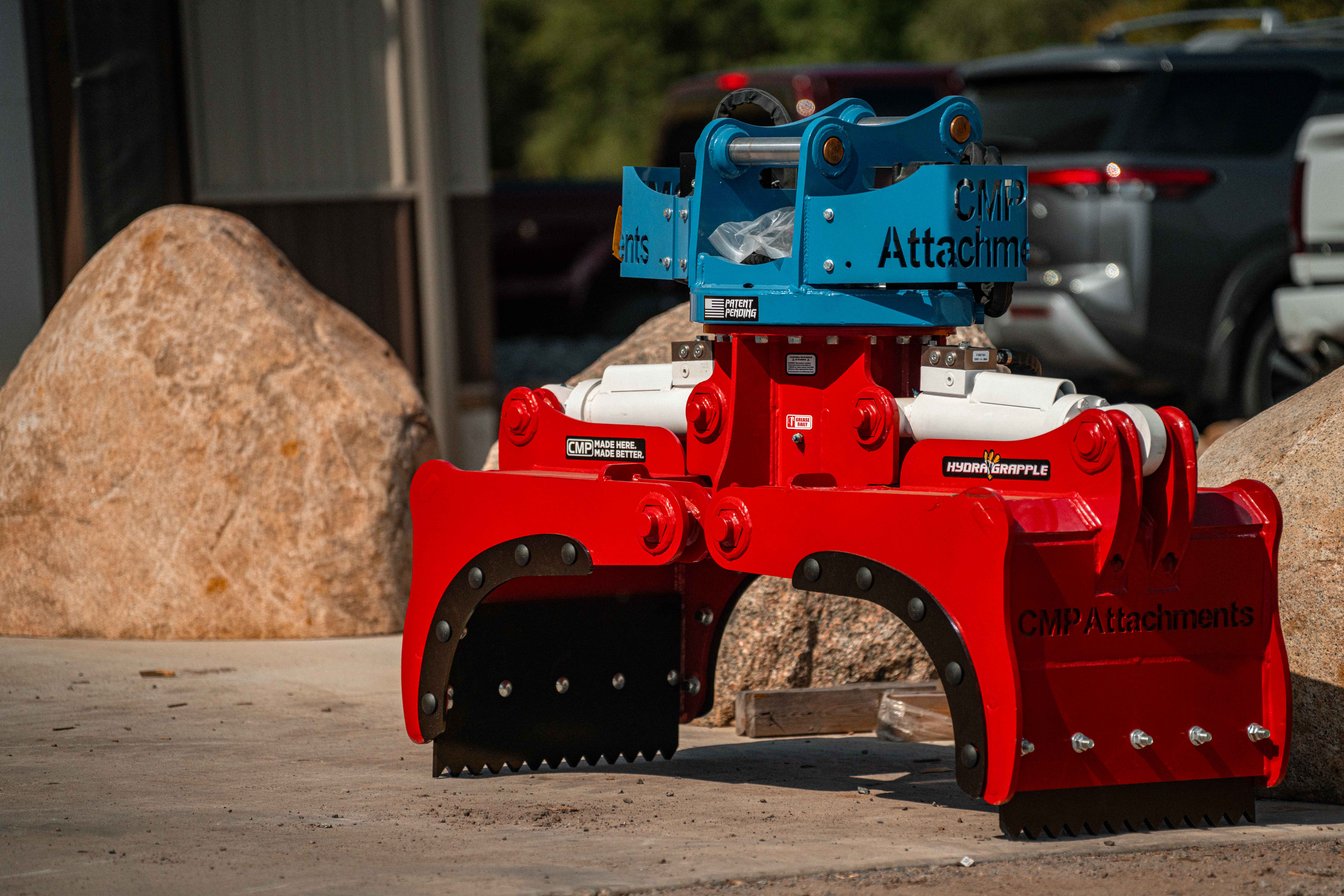

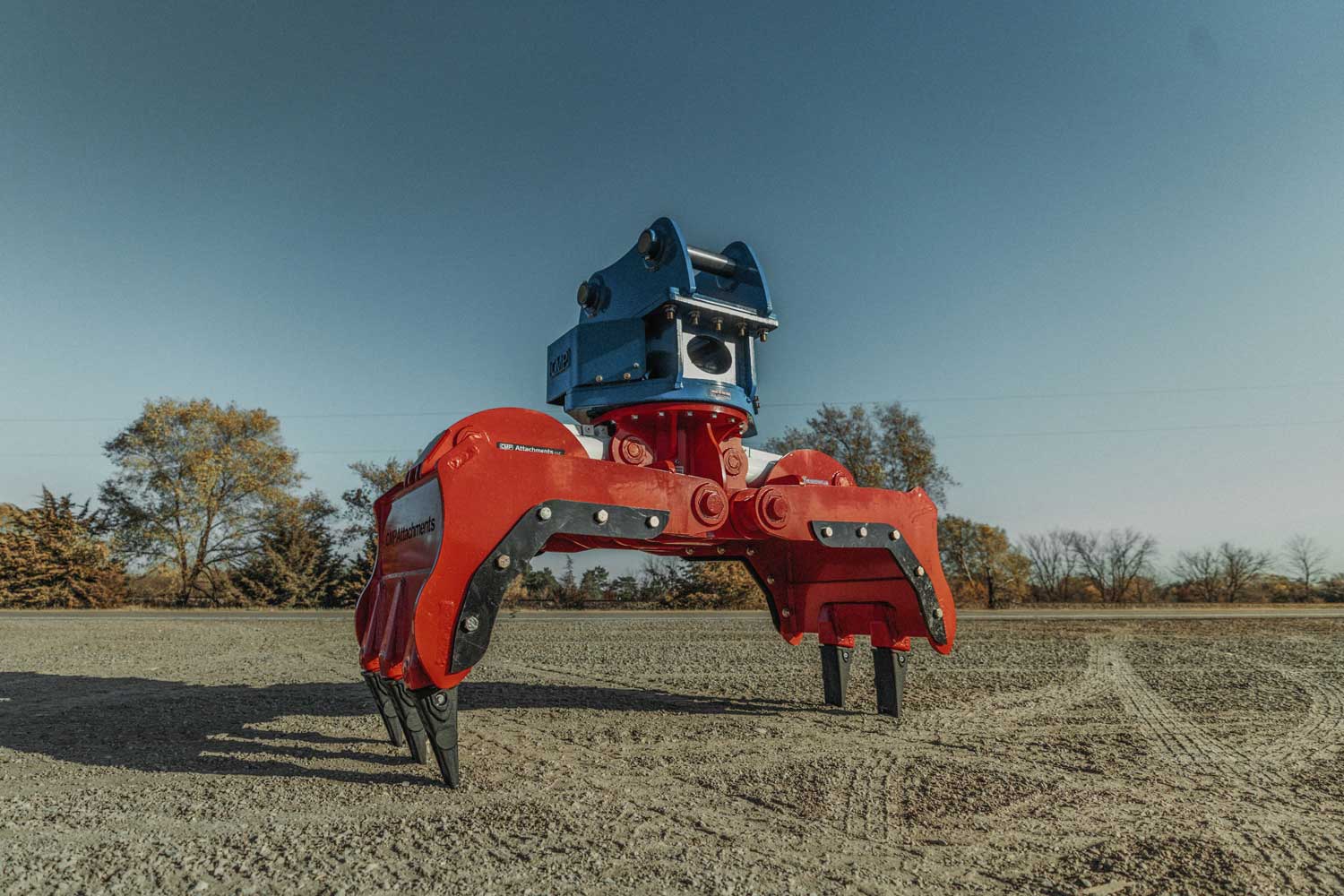

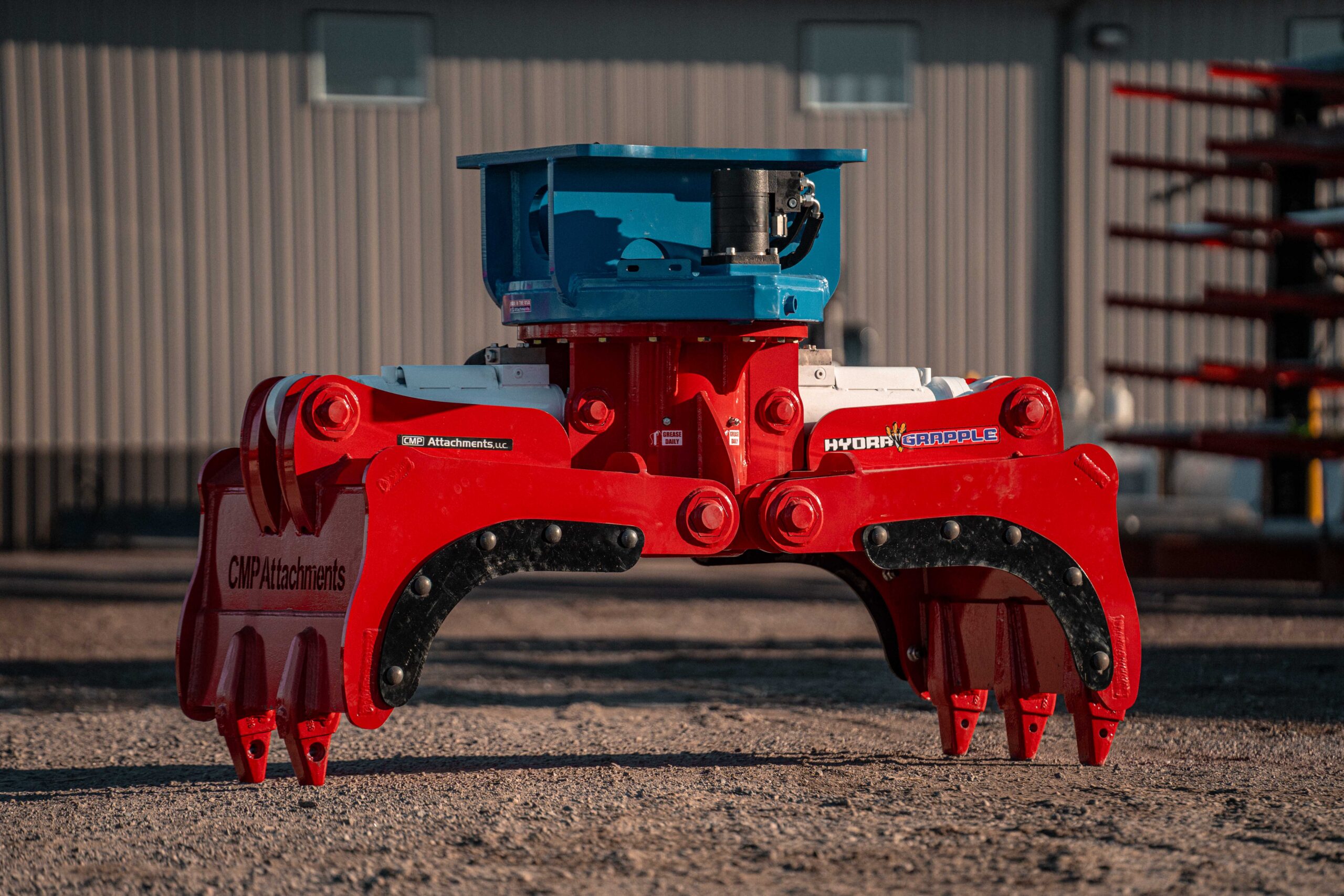

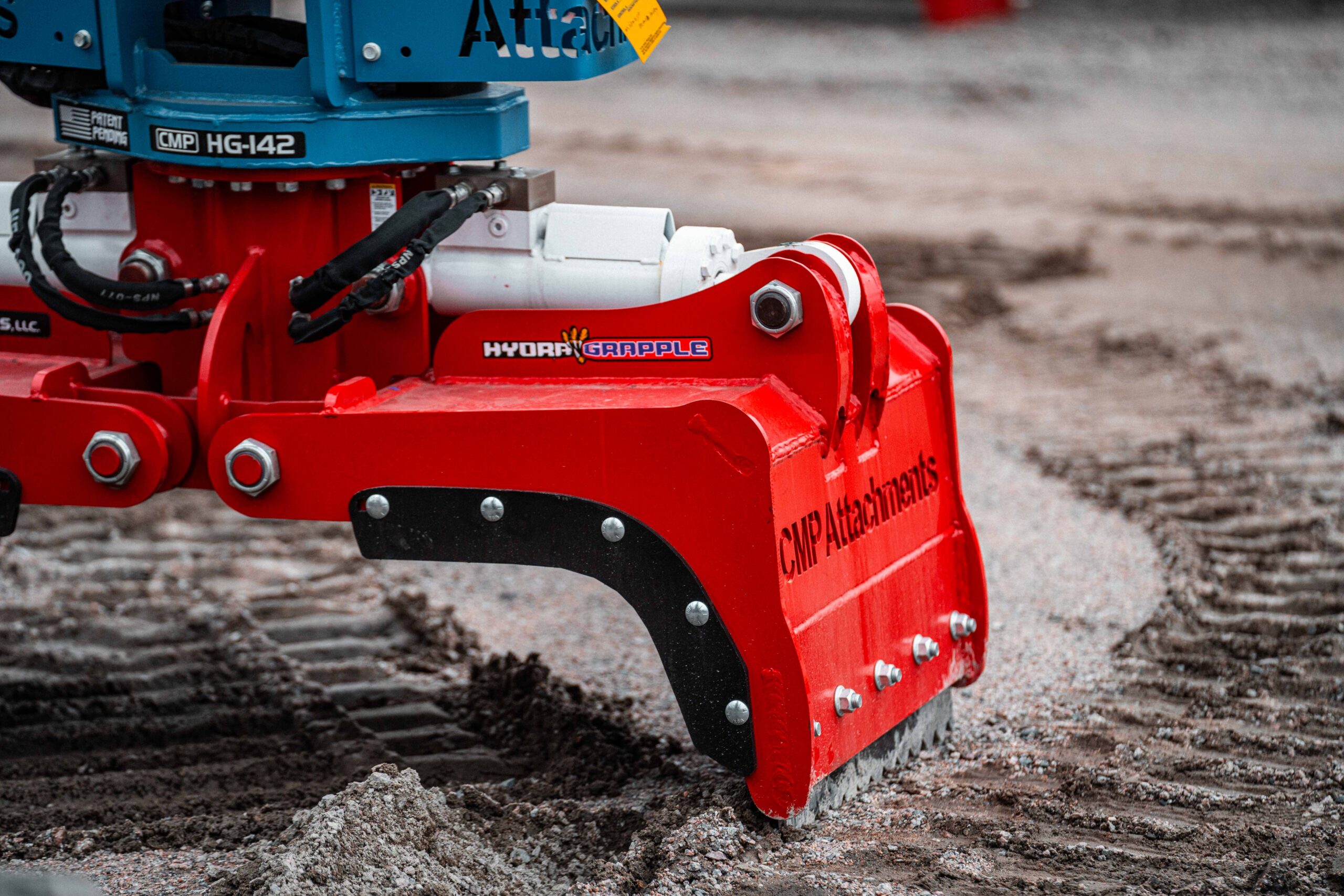

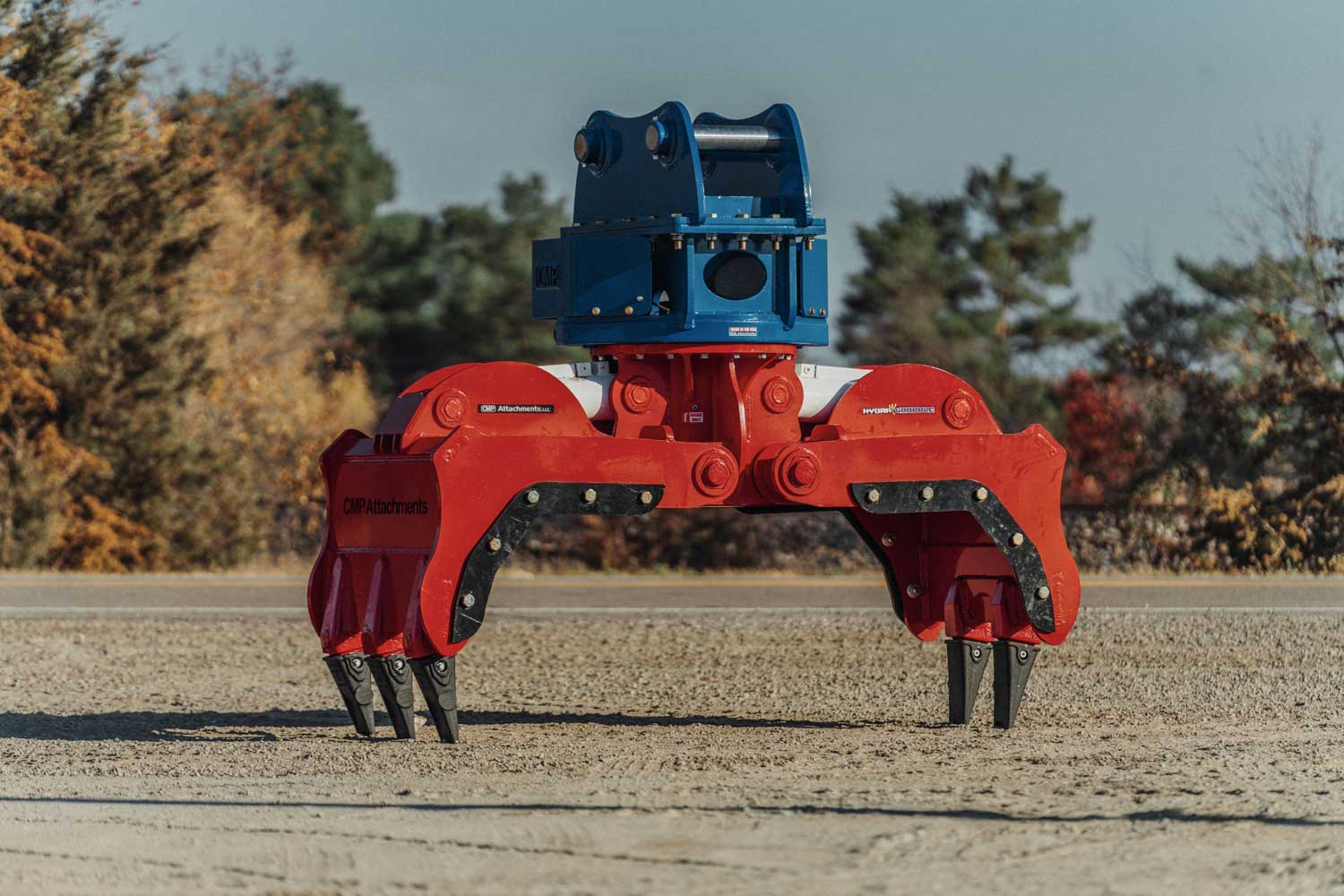

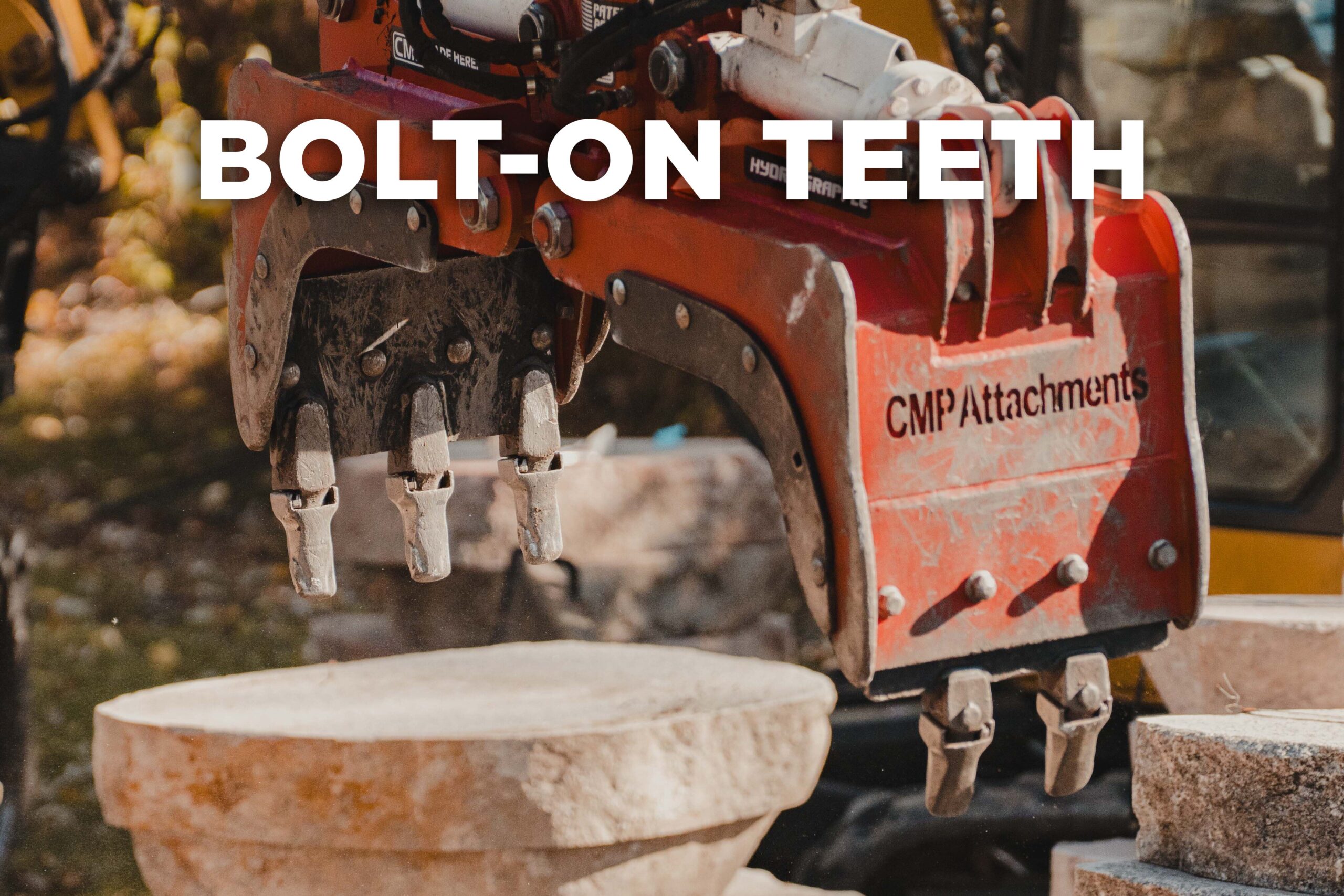

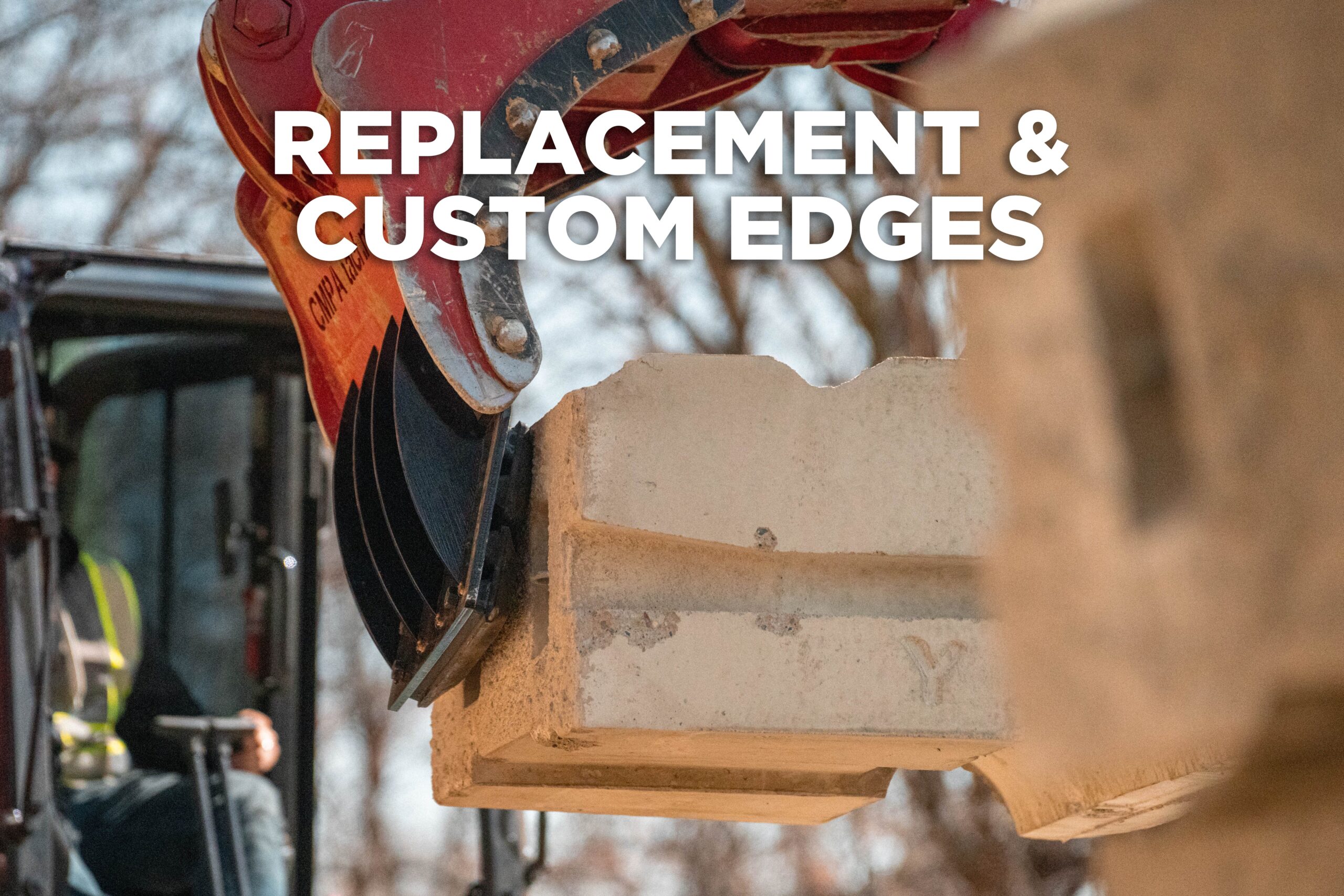

Bolt-on edge options, excluding the HG41: Serrated, rubber, or teeth. *HG282+ have built in teeth.

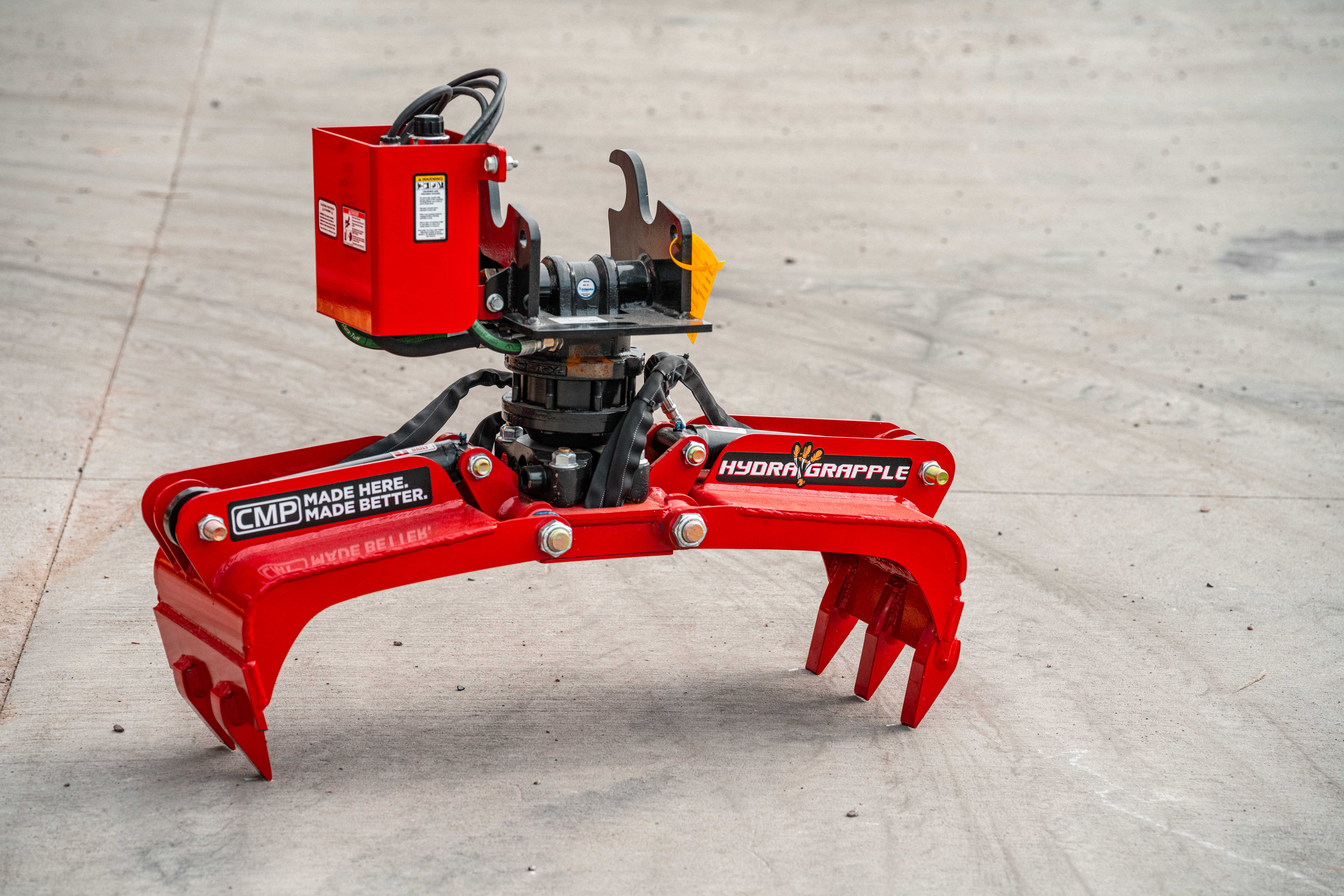

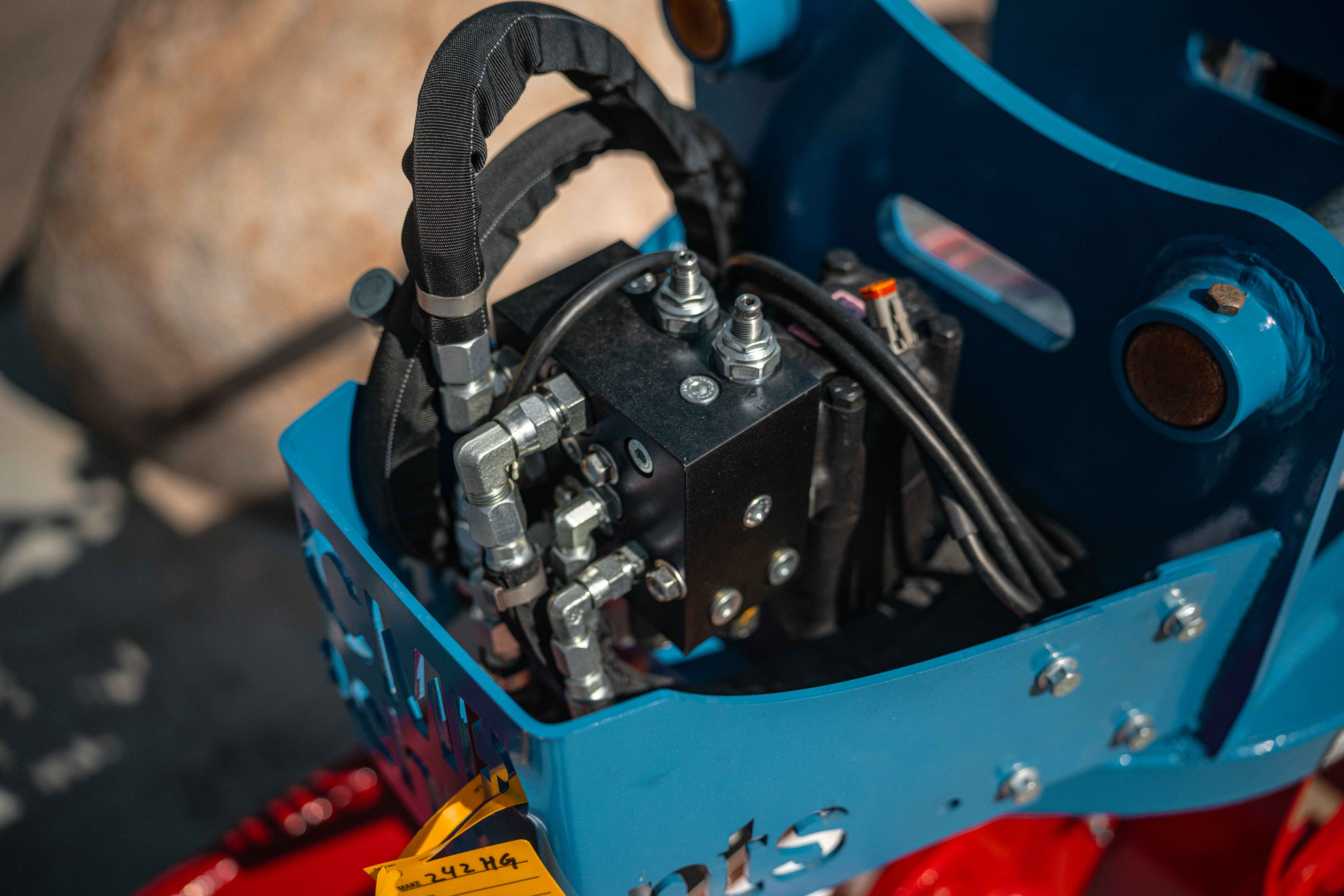

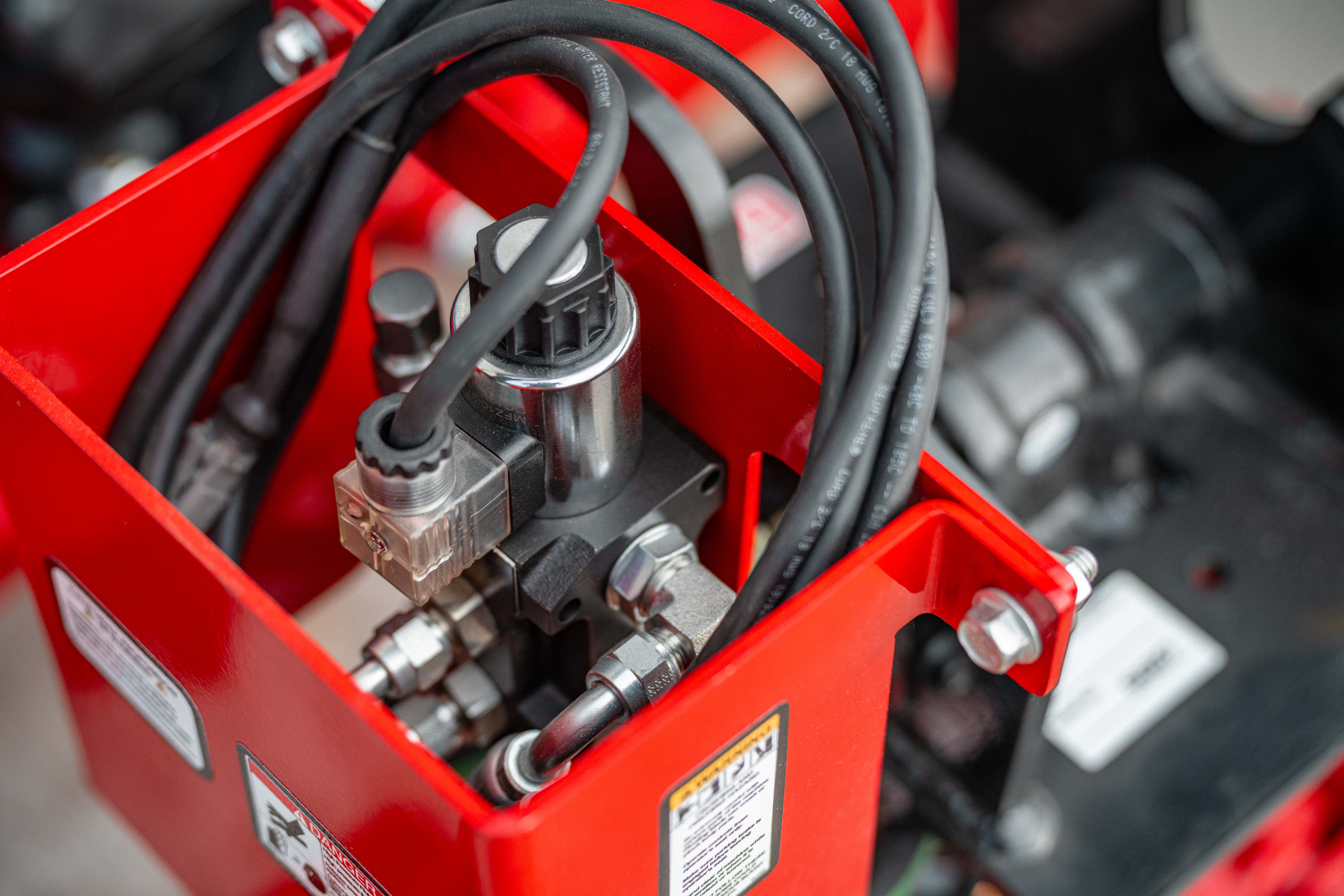

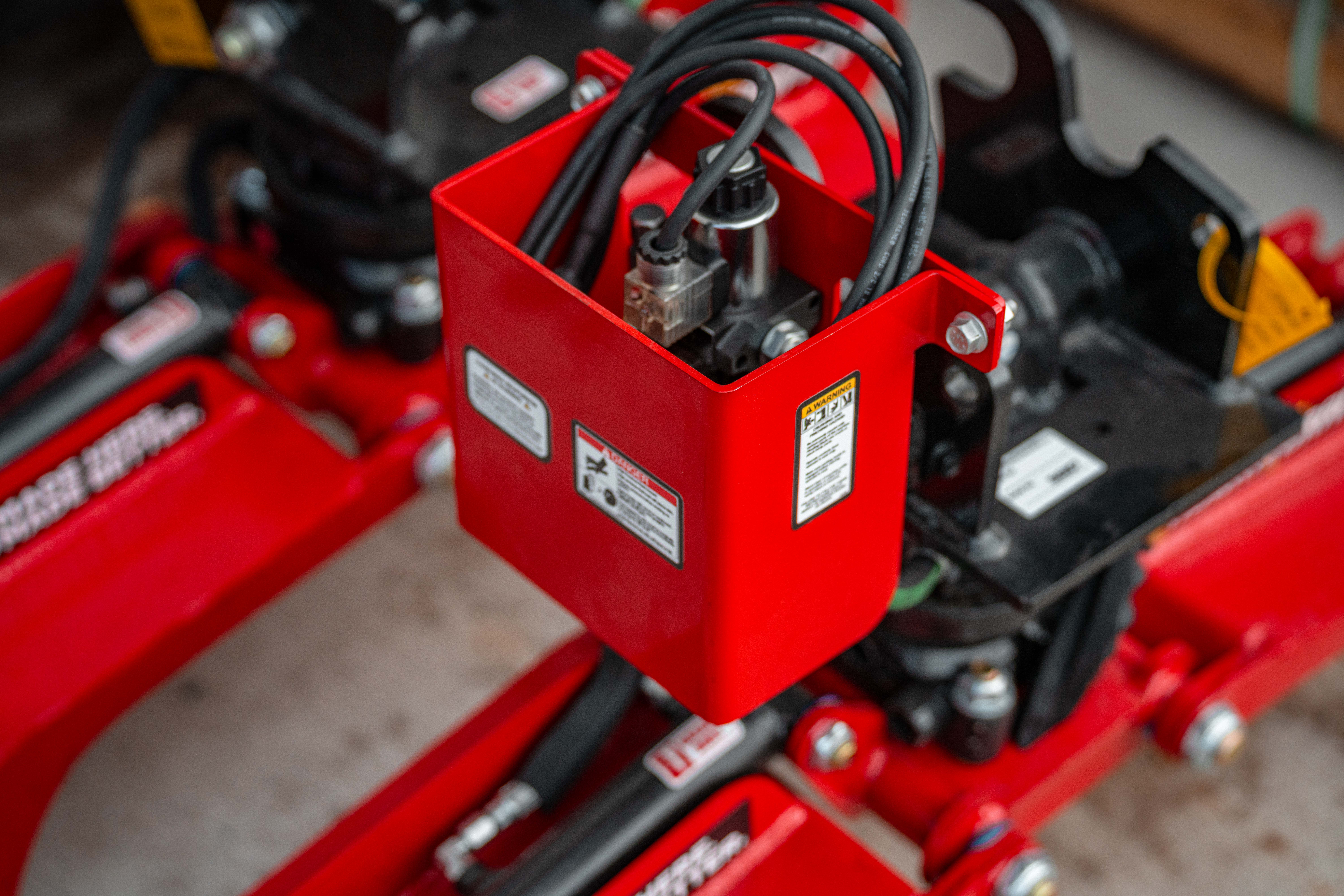

Electronic diverter valve option eliminates the need to plumb expensive secondary auxiliary hydraulics on your excavator.

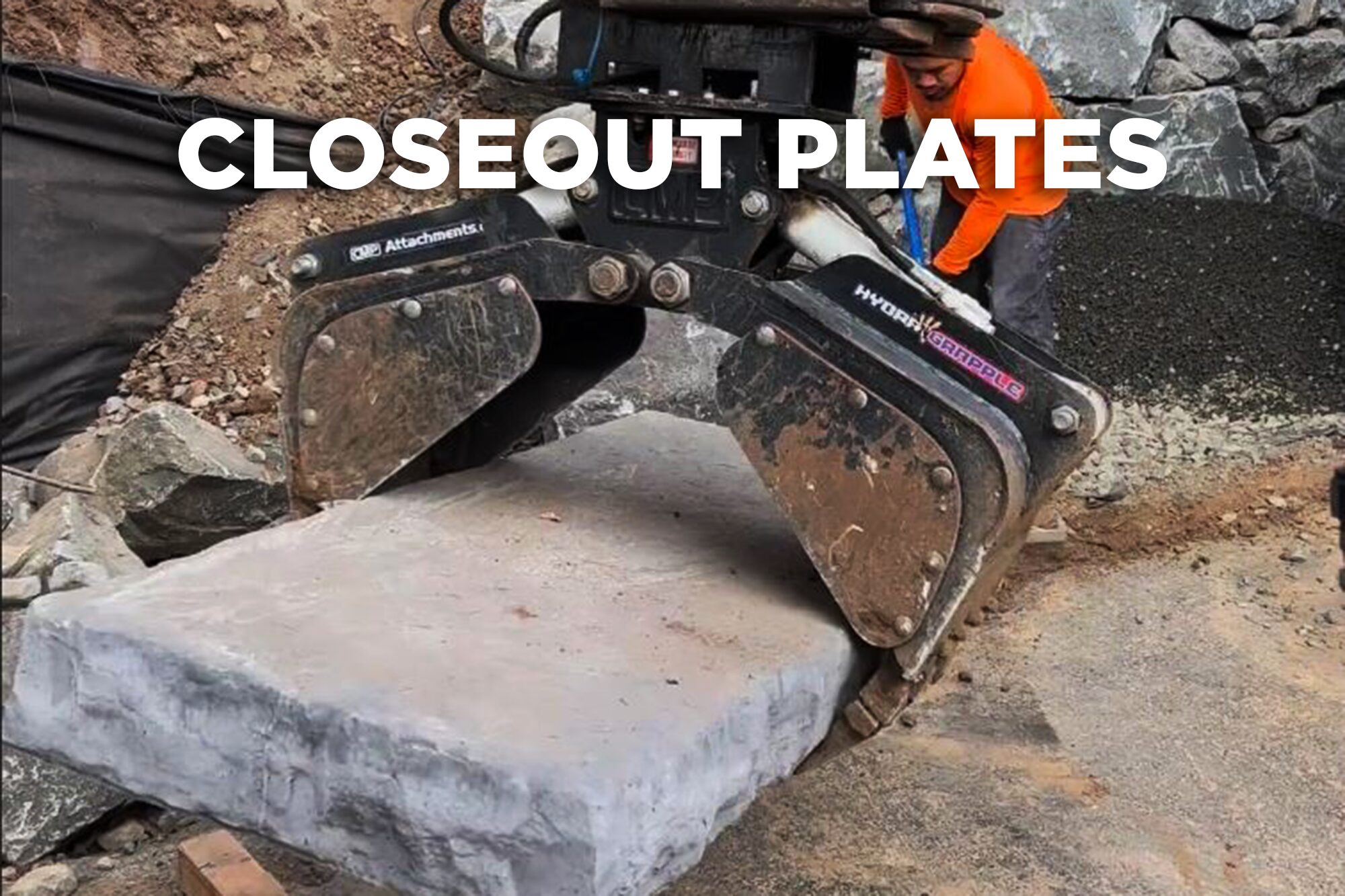

YOU'VE GOT OPTIONS. ADD ON THESE ACCESSORIES WHEN YOU ORDER, OR GET THEM ON OUR PARTS WEBSITE WHEN YOU NEED THEM.

CMP productivity estimator

Set More. Spend Less.

$0 saved versus the next-lowest-cost method

Material Measure project by Crew labor rate $/crew hour Workday length hours

Tons to set100 tons Exact tonnage

Material set

100 tons

Direct tonnage input

Hydra Grapple time

—

Hours recovered

—

versus next-fastest method

Estimated job time and total operating cost

Edit field assumptions

Method

Tons/hour

Equipment $/hour

Hydra Grapple

Strap / chain

Bucket & thumb

Skid forks

Boulders: tons per wall sq. ft. Block: tons per wall sq. ft.

Planning estimate only. Defaults are illustrative—not field-tested CMP performance claims. Actual cycle time varies with material size, layout, operator, carrier, access, travel distance, grade, staging, and site conditions.
